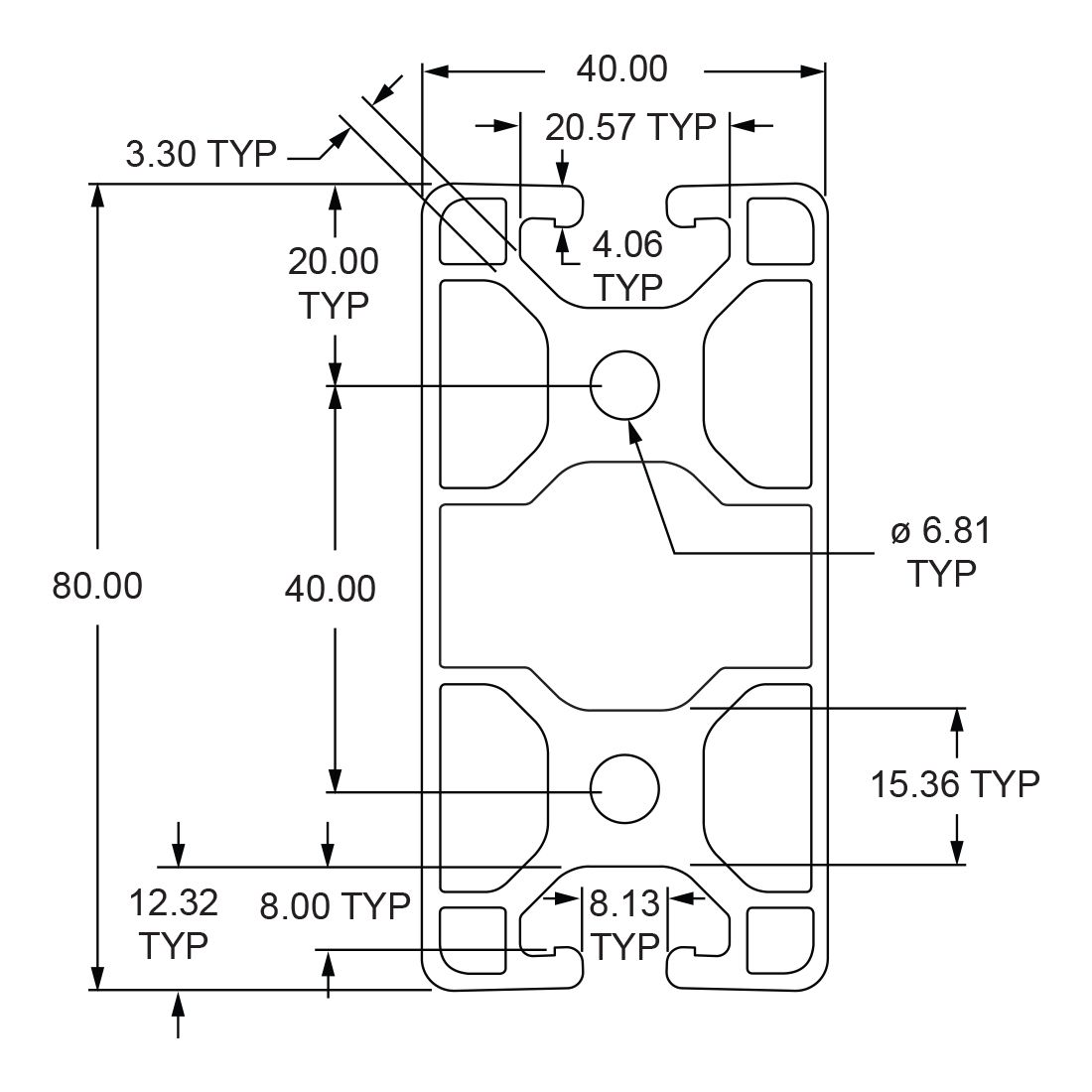

40mm X 80mm Lite T-Slotted Profile – Two Opposite Open T-Slots

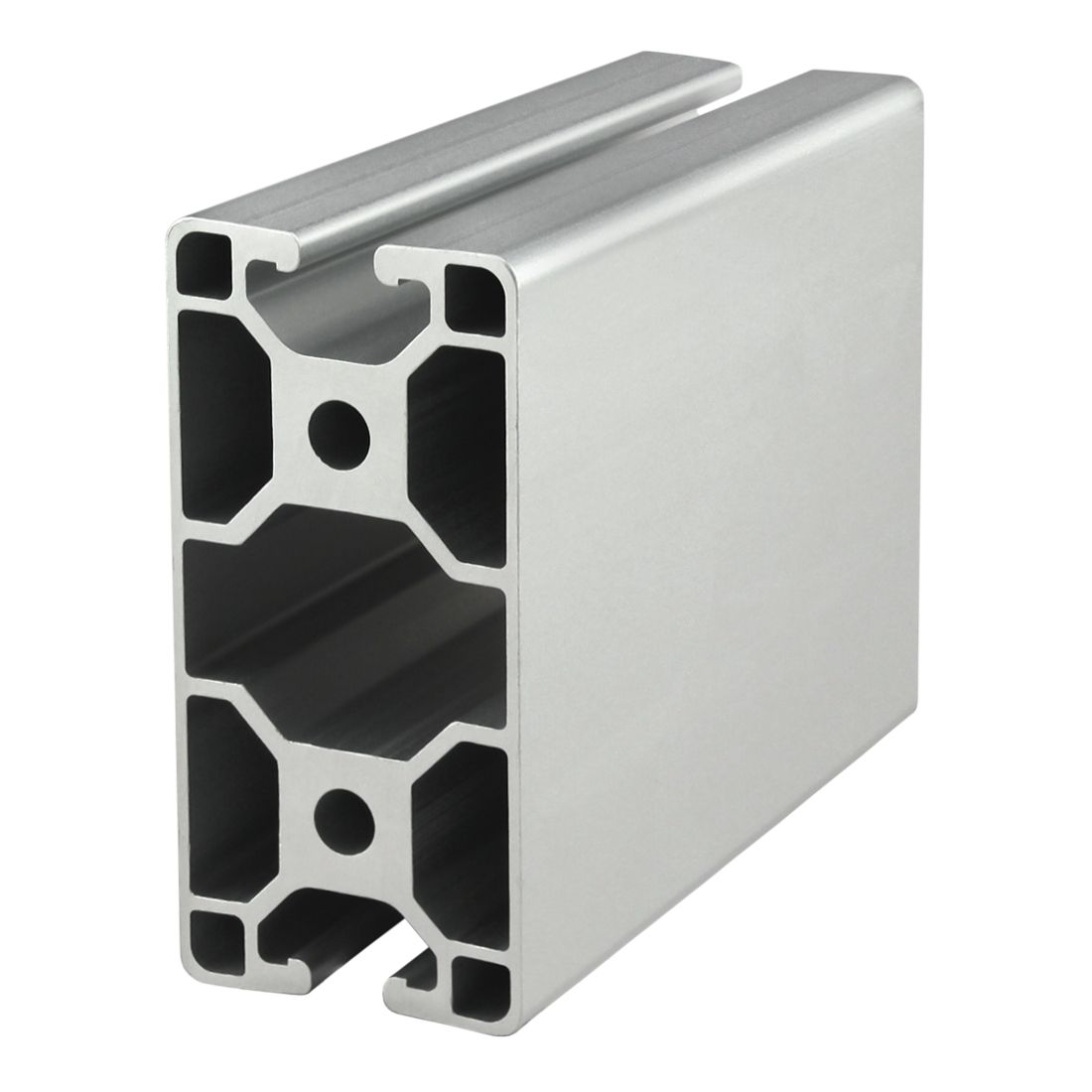

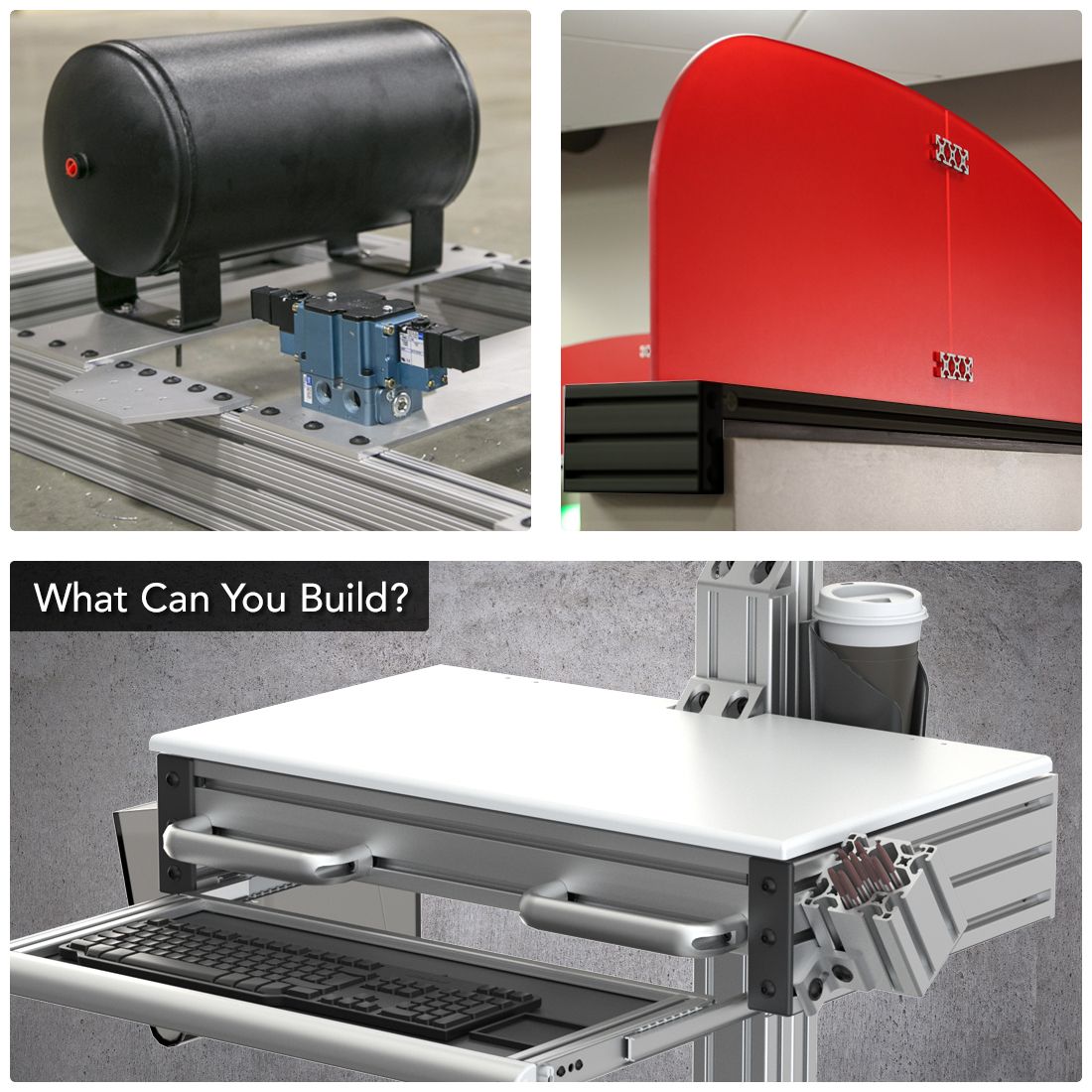

40-4085-Lite is a 40mm x 80mm lite metric 40 series rectangular T-slot profile with two open T-slots, one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4085-Lite profile is compatible with 40 series fasteners. The closed face on this profile provides a clean, aesthetic look while the center cavity of the profile can be pressurized up to 1.034 N/mm2 (150 psi), lending itself to machine guards, enclosures, work benches, or displays.

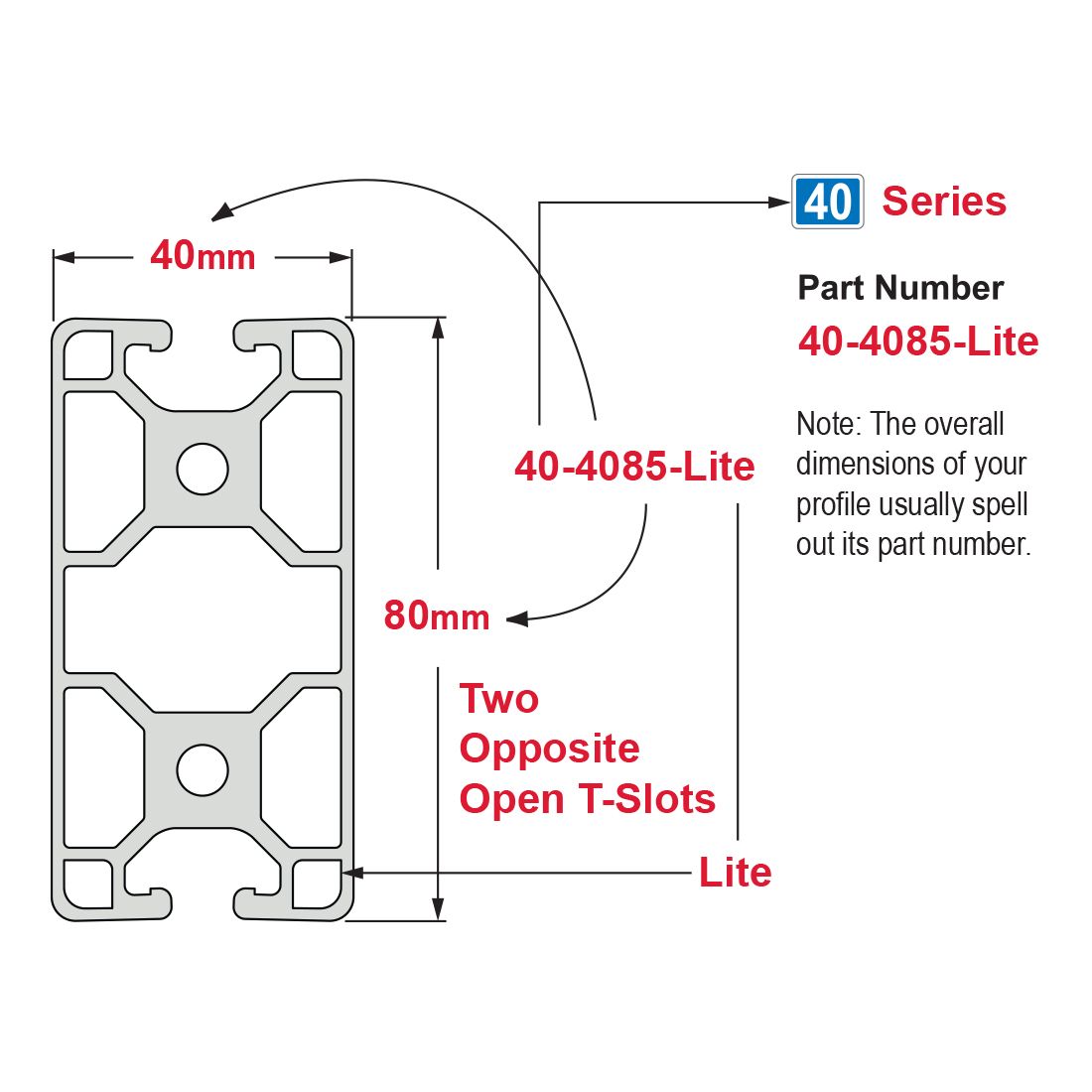

Part No: 40-4085-Lite

$0.11

Description

Max Length (inches) 238.188976
Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

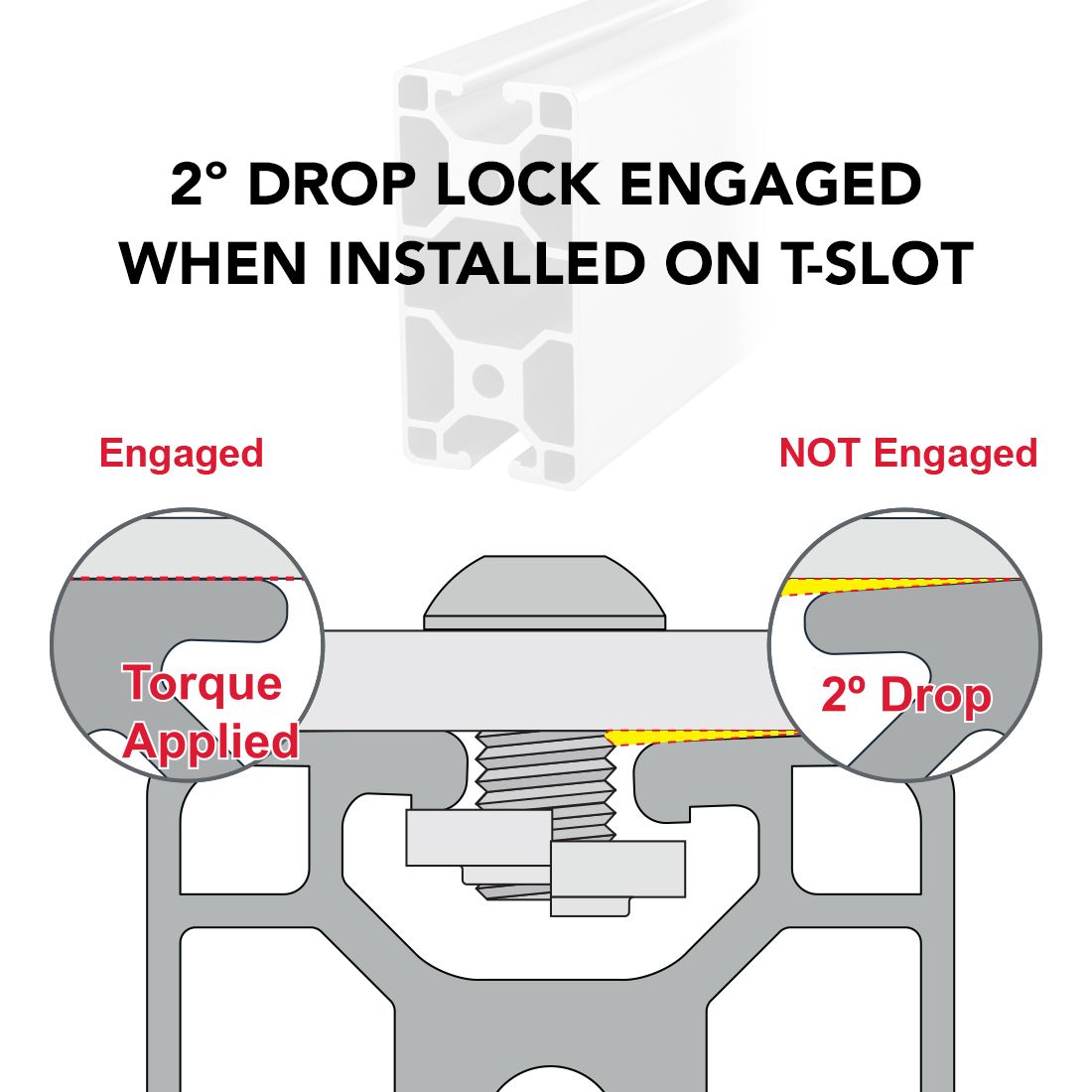

Drop Lock
Moment of Inertia – IX 67.8369 cm⁴
Moment of Inertia – IY 15.9404 cm⁴
Surface Area 11.000 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.1663 per inch
Weight 0.166300
80/20

Additional information

Brand

Reviews

There are no reviews yet.

Be the first to review “40mm X 80mm Lite T-Slotted Profile – Two Opposite Open T-Slots”

Your email address will not be published. Required fields are marked *

No CAD files available for this product.
