Standard End Fastener, M8

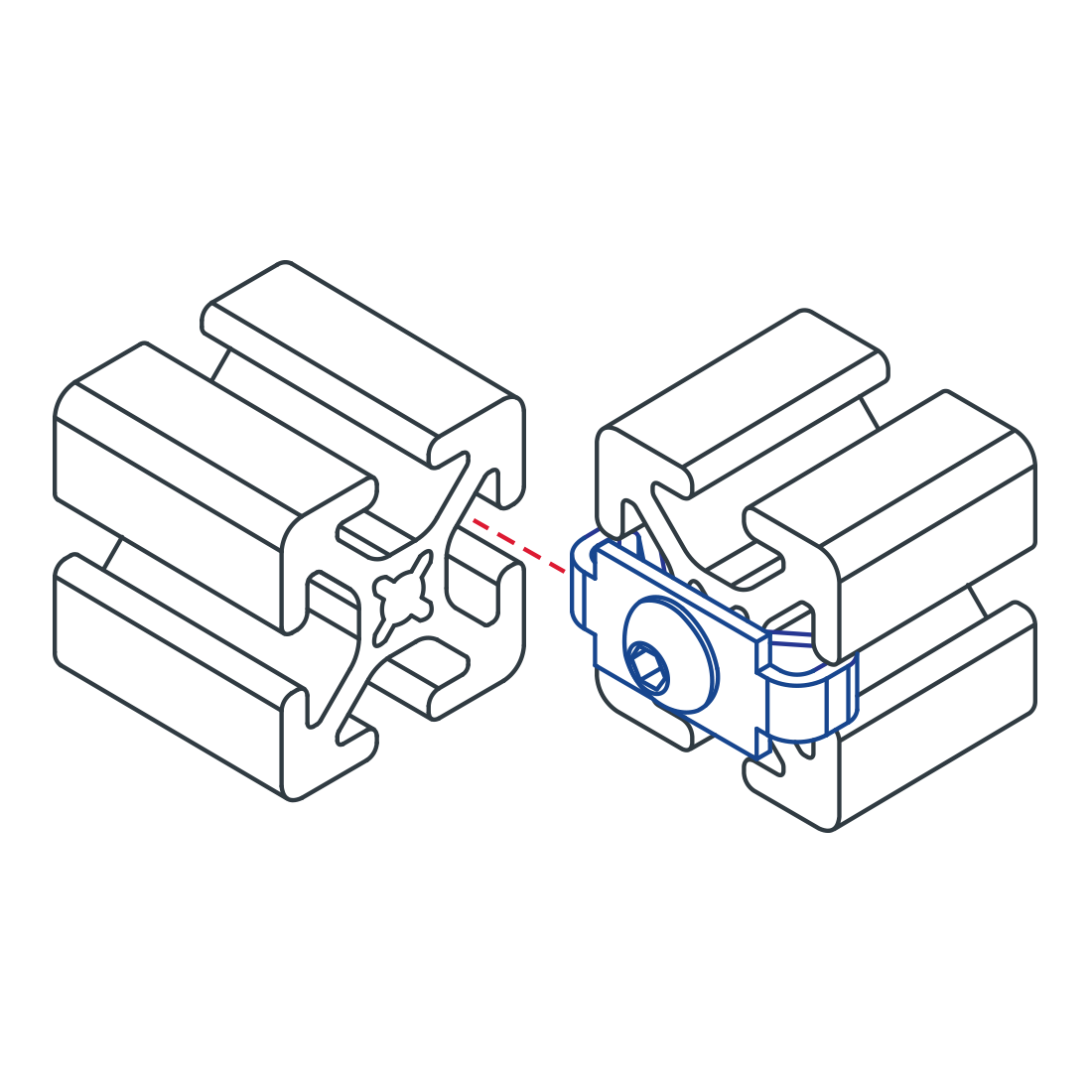

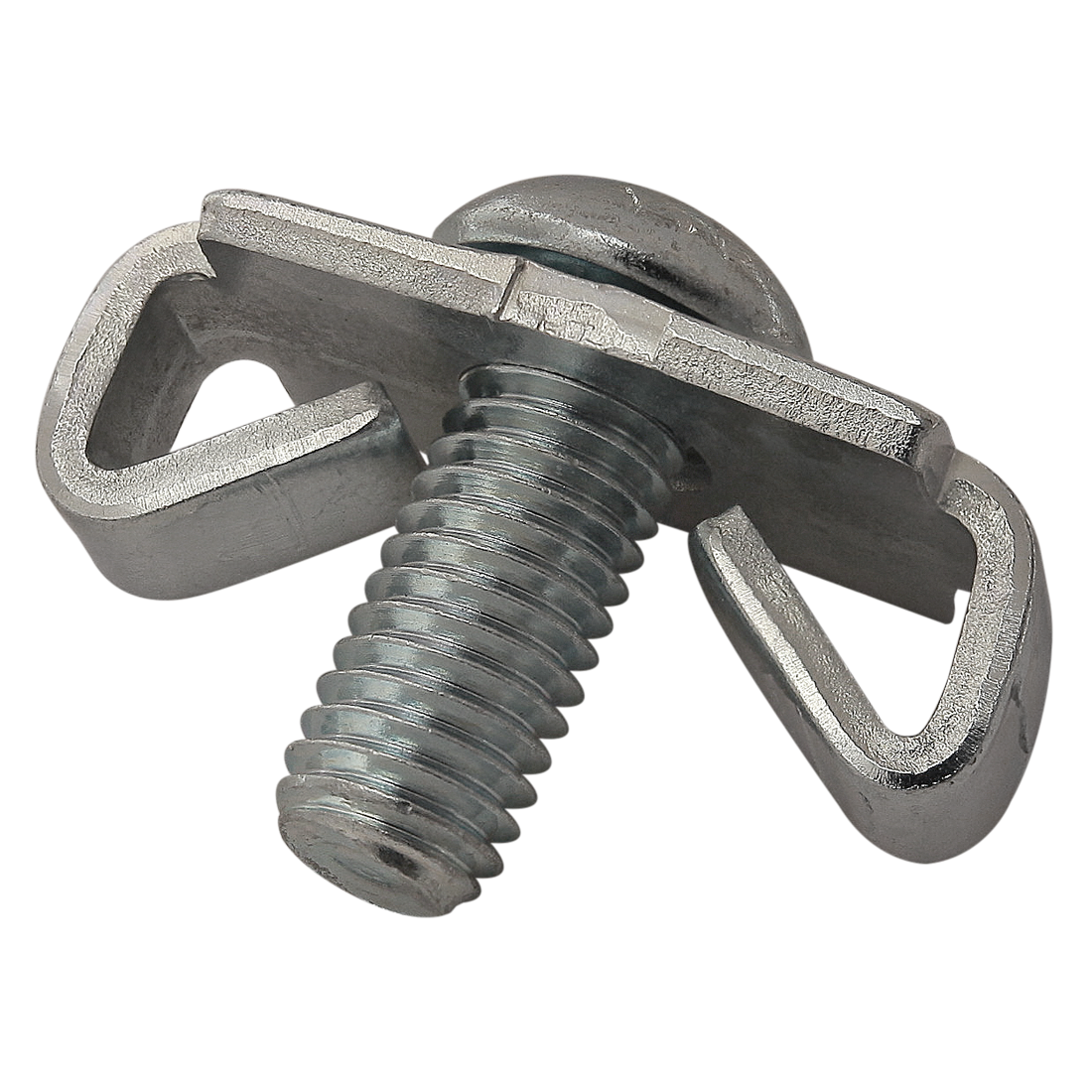

The standard end fastener assembly is comprised of a button head socket cap screw and wing clip. The end fastener provides a fixed, 90 degree, moderate-strength connection that is completely hidden. The winged tabs of the clip prevent the mating profile from rotating. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional Information: Wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.

Part No: 40-3891

$5.28

SKU: 40-3891 Categories: , , ,

Description

Series 40 Series
Type Assembly
Material Steel
Color Bright
A 15.87mm
B 11.43mm
C 7.62mm
D 8.63mm
E 33.02mm
F 25.40mm
G M8
H 25.00mm
Weight 0.047000
80/20
