Description
| Series | 15 Series, 40 Series |
| Material | Steel |
| Grade | 1045 |
| Finish | Zinc |
| Color | Bright |
| A | 23.00mm |
| B | 6.75mm |
| C | 18.00mm |
| D (Thread) | M8 |
| E | 8.50mm |
| F | 6.80mm |
| Weight | 0.029000 |

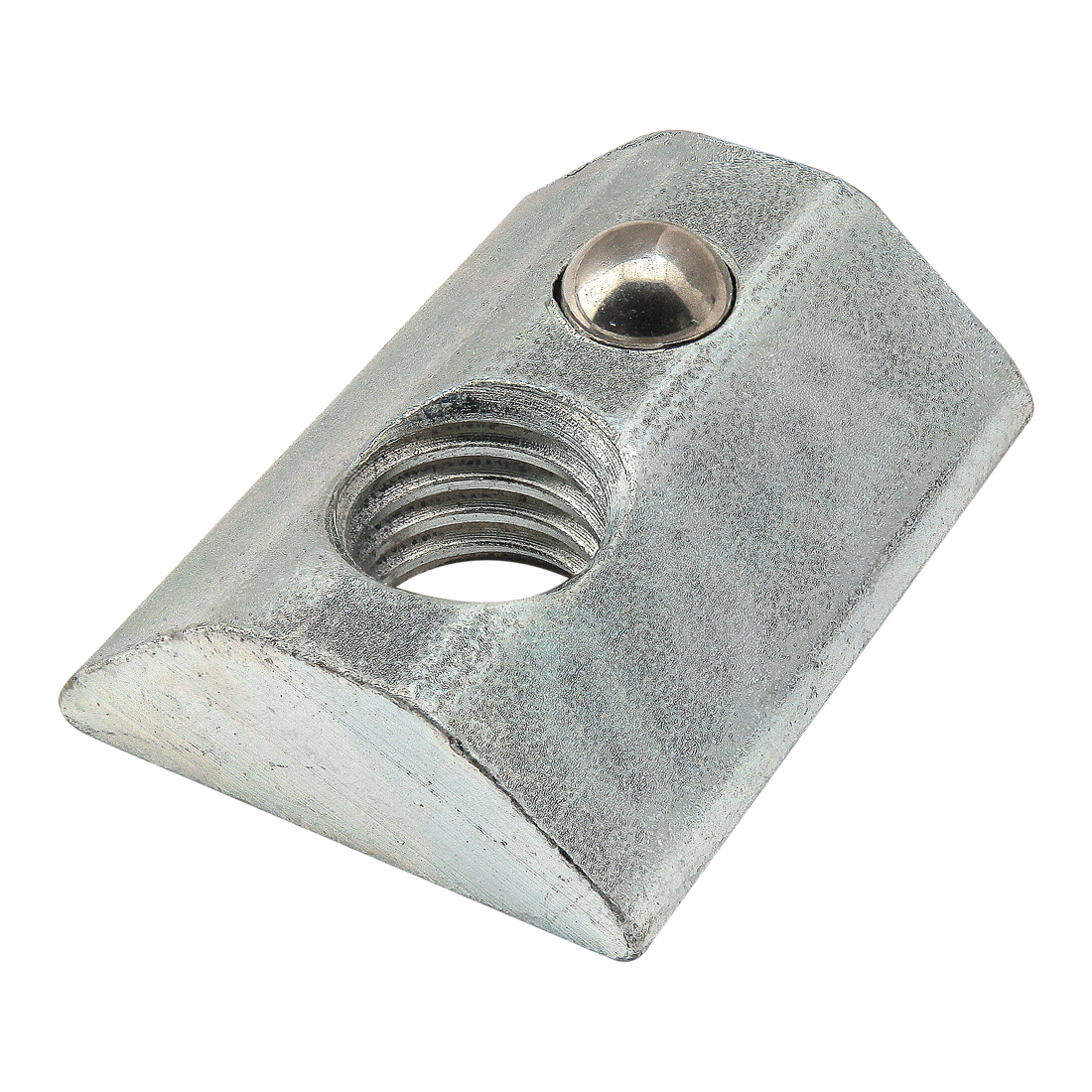

M8 Slide-in T-Nut with Ball Spring

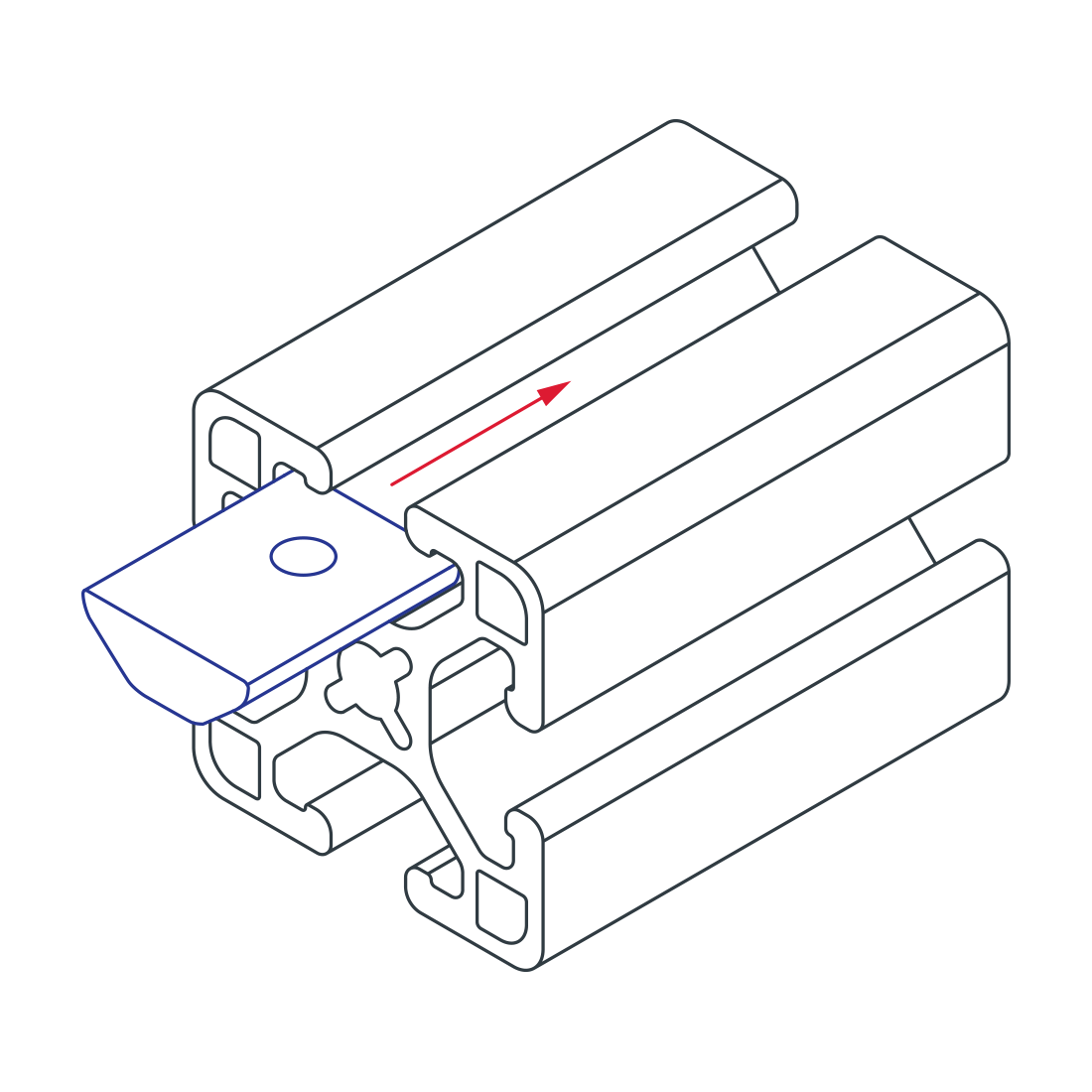

The slide-in T-nut with ball spring is a fastening option that loads from the profile ends. The ball spring holds the T-nut in the T-slot, even when the profile is in a vertical position. It is available with different thread options.
Part No: 13066
$5.54
