Description
| Series | 15 Series, 40 Series, 45 Series |
| Material | Steel |
| Grade | ST50 |
| Process | Stamped |
| Finish | Bright Zinc |
| Color | Silver |

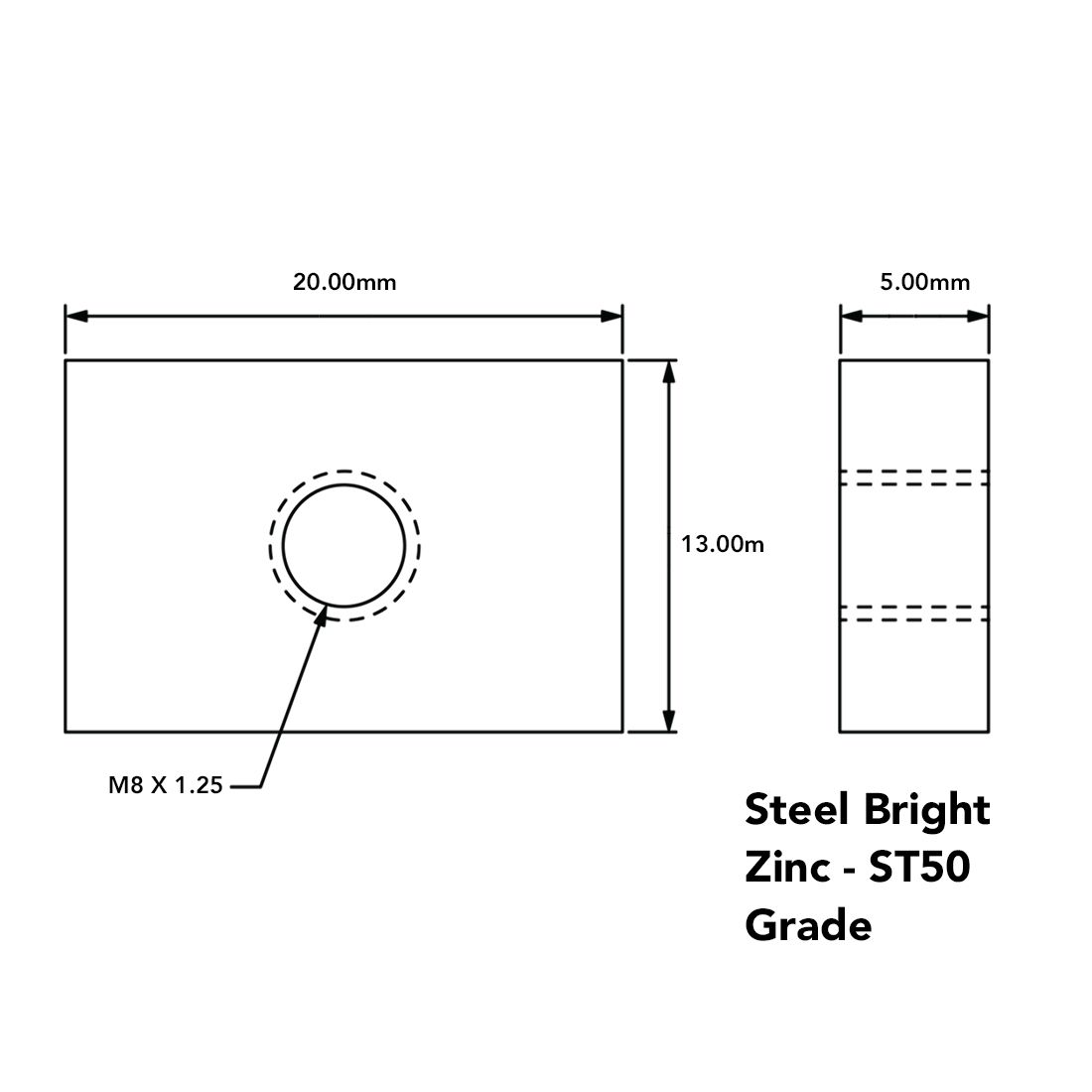

| A | 20.00mm |
| B | 13.00mm |
| C (Thread) | M8 X 1.25 |
| D | 5.00mm |
| Weight | 0.018000 |

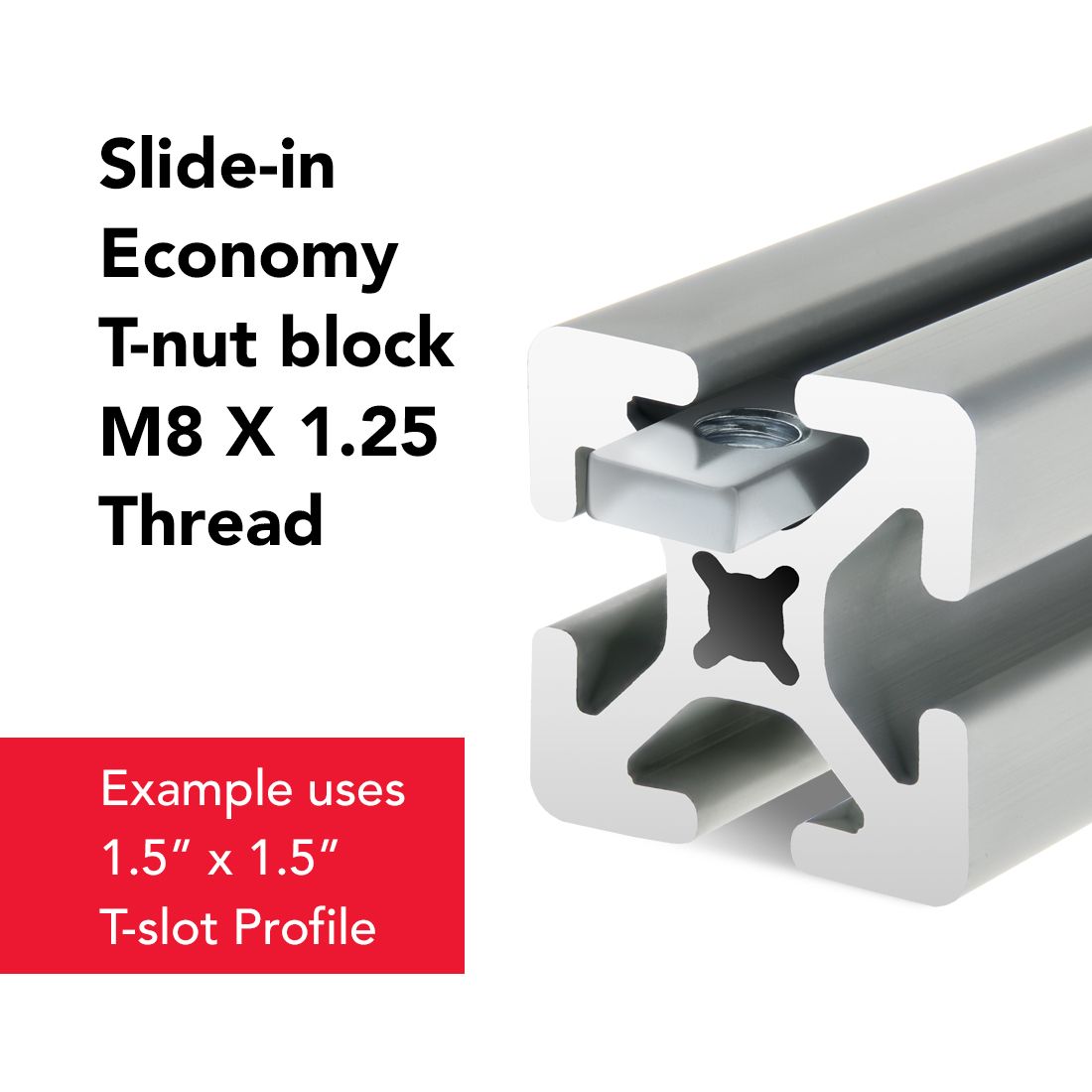

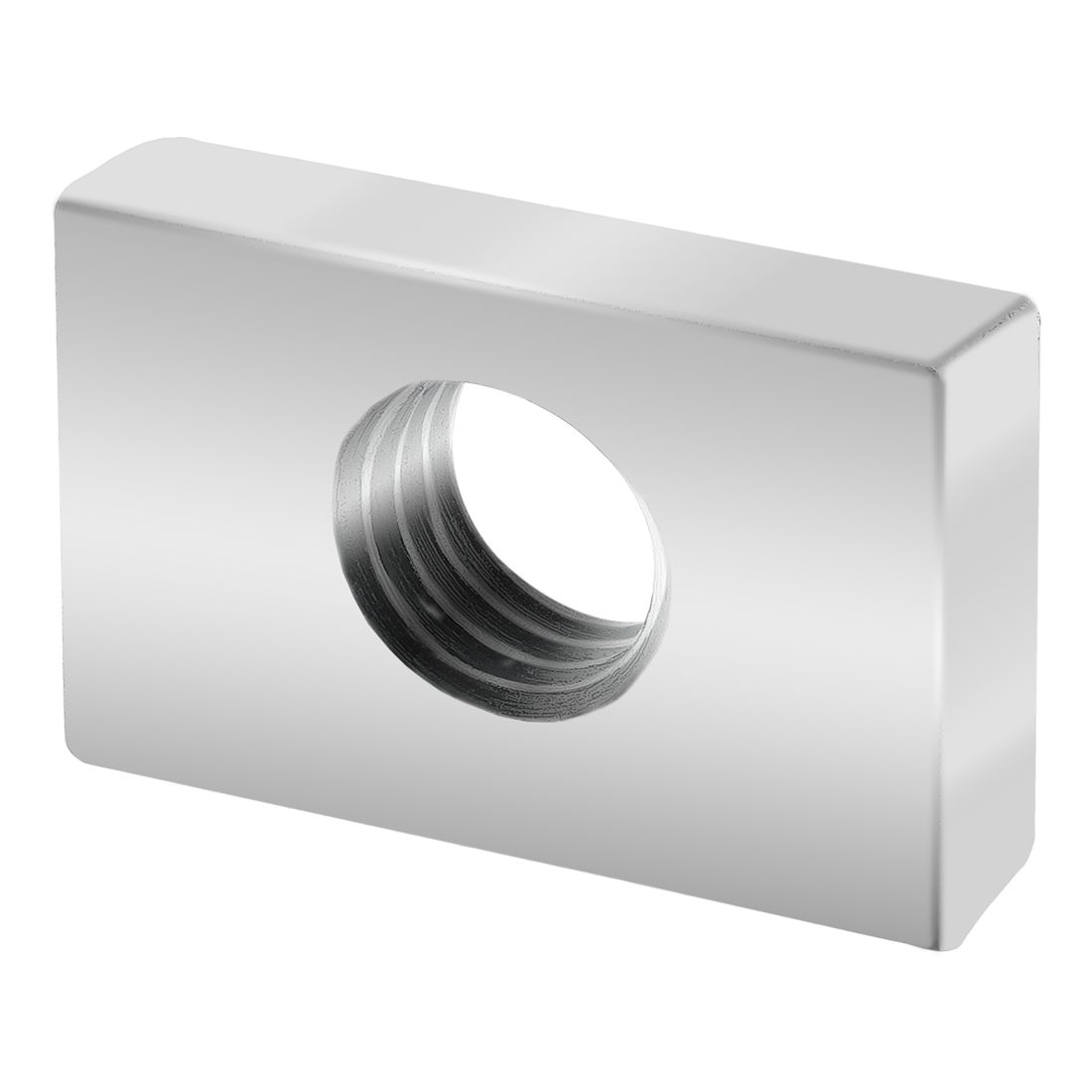

M8 Slide-in Economy T-Nut Block
The slide-in economy T-nut block is a fastening option that loads from the profile ends. It is the most cost-effective slide-in T-nut and also provides infinite positioning along the profile T-slot. This fastener is available in a variety of sizes and threads.
Part No: 14131
$0.97
Additional information
| Brand |
|---|
No CAD files available for this product.
