Description
| Series | 40 Series |
| Material | Steel |
| Grade | 1215 |
| Finish | Zinc |
| Color | Bright |
| A | 22.22mm |
| B | 4.95mm |
| C | 7.87mm |
| D | 12.70mm |
| E (Thread) | M8 X 1.25 |
| F | 2.95mm |
| G | 7.24mm |
| H | 9.93mm |
| Weight | 0.026000 |

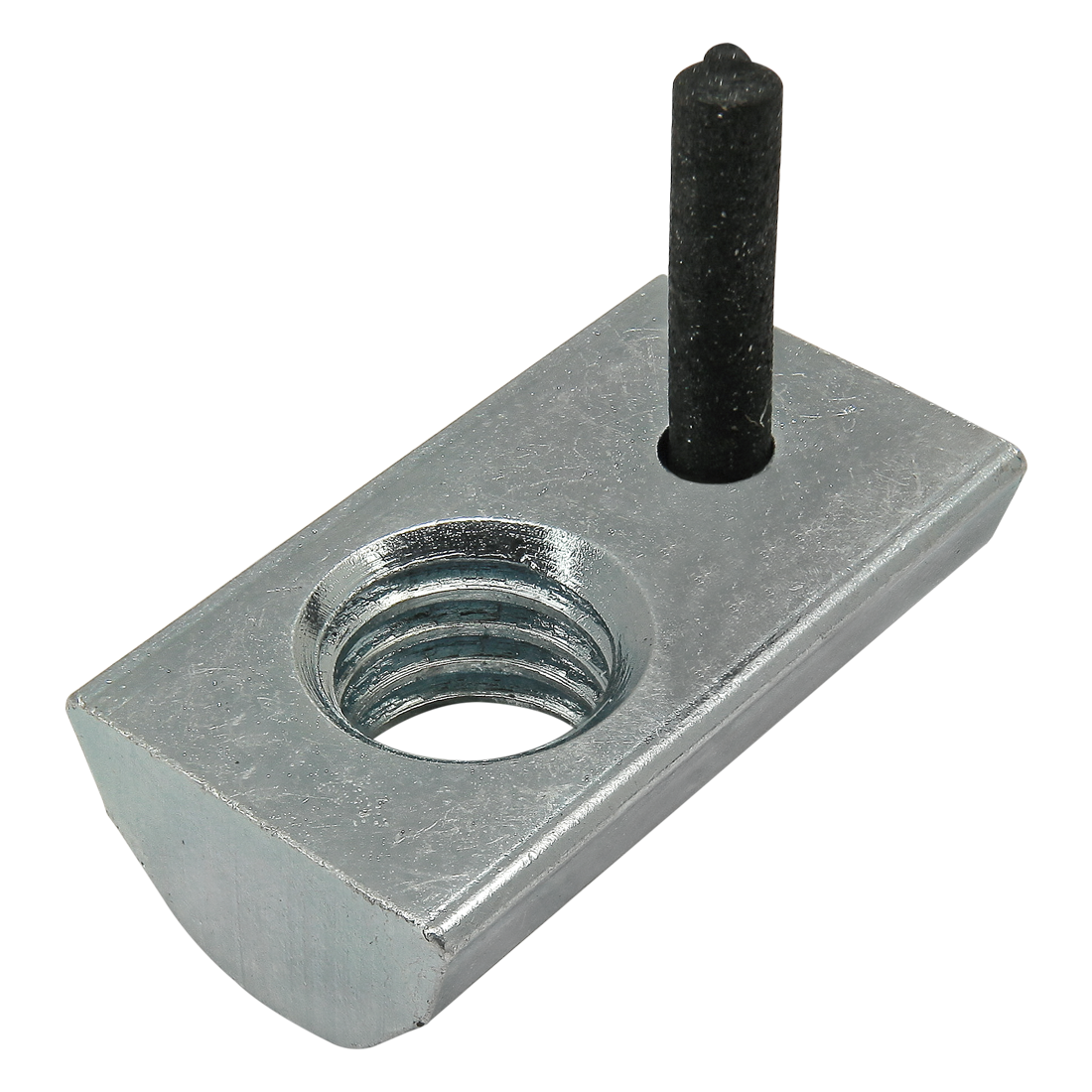

M8 Roll-In T-Nut with Flex Handle
The roll-in T-nut with flex handle is a fastening option that loads from either the profile ends or side, which is helpful in applications where the ends are inaccessible. The flex handle sticks out past the profile to make it easy to position and move within the T-slot. It is available with options in size, material, thread, and finish.
Part No: 40-1986
$5.54
