Description
| Series | 40 Series |
| Material | Steel |
| Grade | 1045 |
| Finish | Zinc |
| Color | Bright |
| A | 22.00mm |
| B | 5.90mm |
| C | 13.70mm |
| D (Thread) | M8 X 1.25 |
| E | 8.70mm |
| F | 7.00mm |
| Weight | 0.020000 |

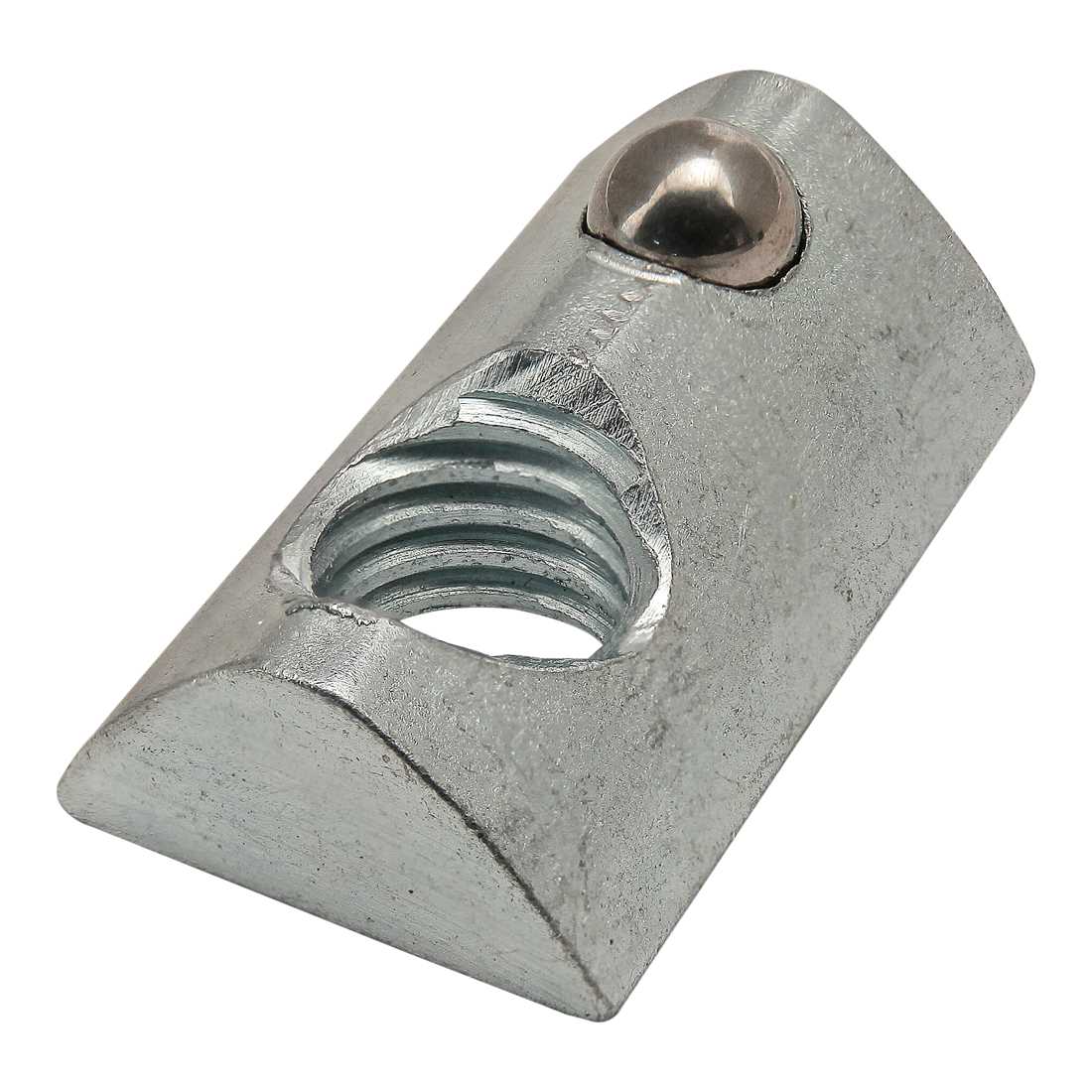

M8 Roll-In T-Nut with Ball Spring
The roll-in T-nut with ball spring is a fastening option that loads from the profile ends or side, which is helpful for applications where the ends are inaccessible. The ball spring holds the T-nut in the T-slot, even when the profile is in a vertical position, simplifying the assembly process. It is available with options in size, material, thread, and finish.
Part No: 40-3915
$4.67
Additional information
| Brand |
|---|
No CAD files available for this product.
