Description
| Series | 10 Series, 25 Series |
| Material | Steel |
| Grade | ST50 |
| Process | Stamped |
| Finish | Bright Zinc |
| Color | Silver |
| A | 15.00mm |
| B | 10.00mm |
| C (Thread) | M6 X 1.0 |
| D | 4.00mm |
| Weight | 0.008000 |

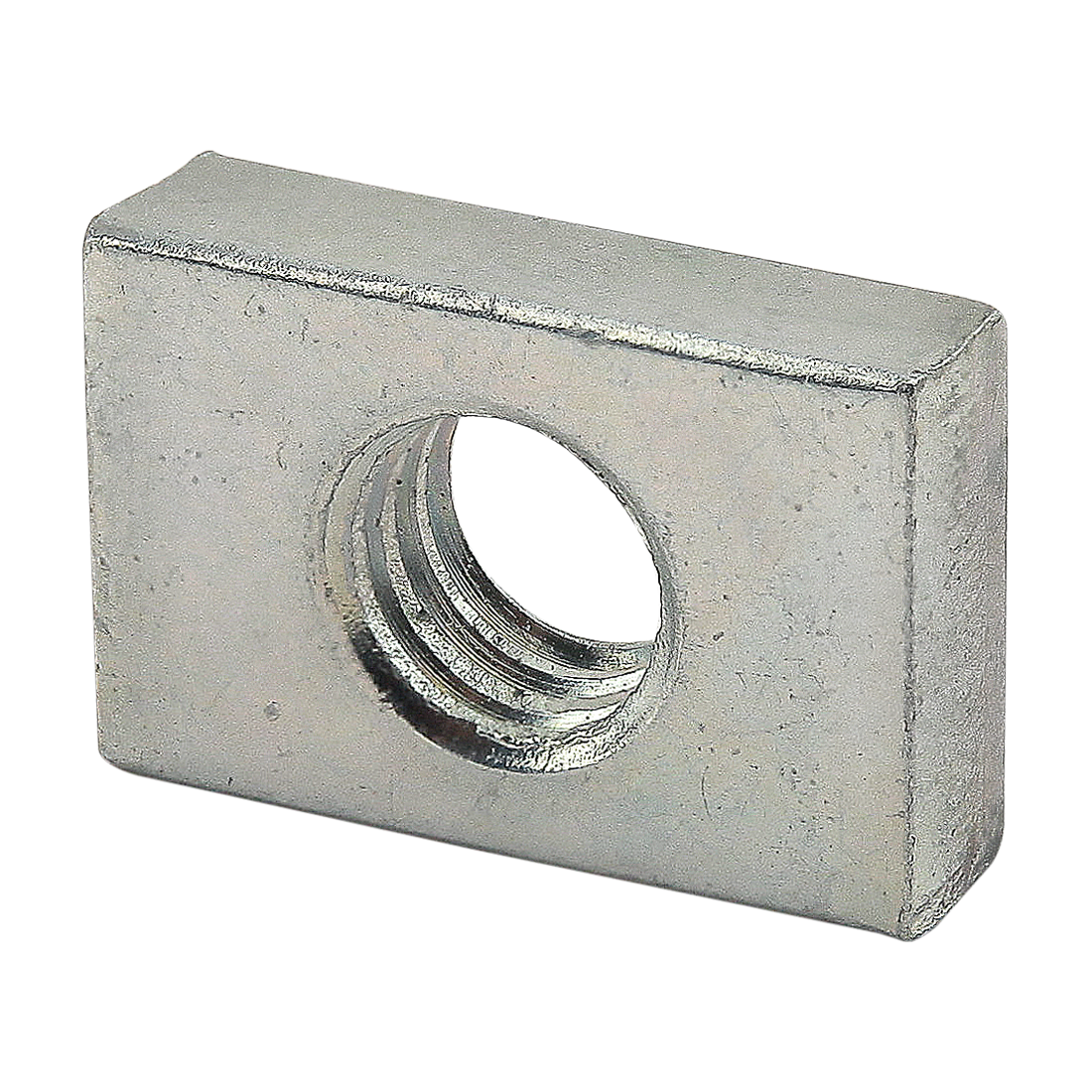

M6 Slide-in Economy T-Nut Block

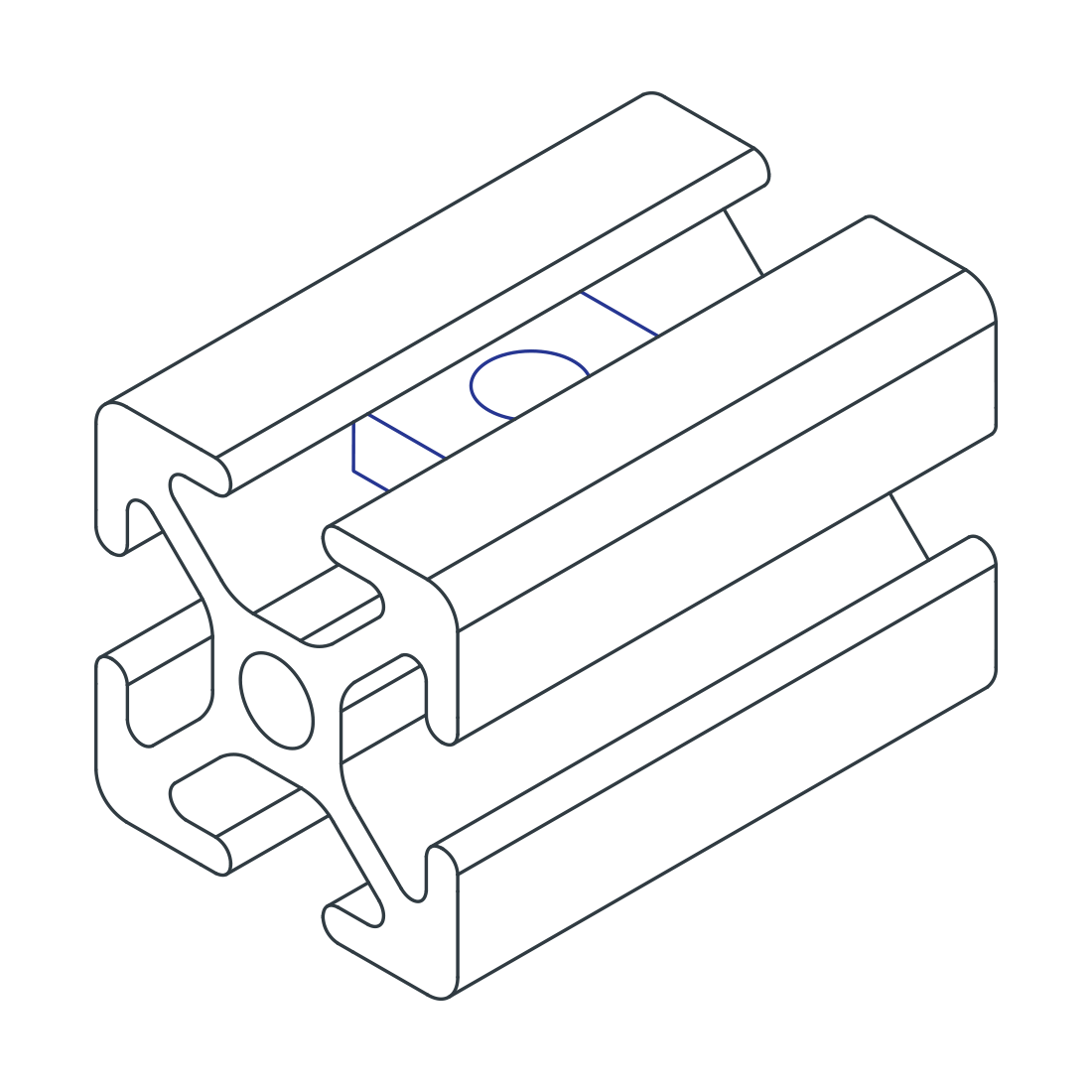

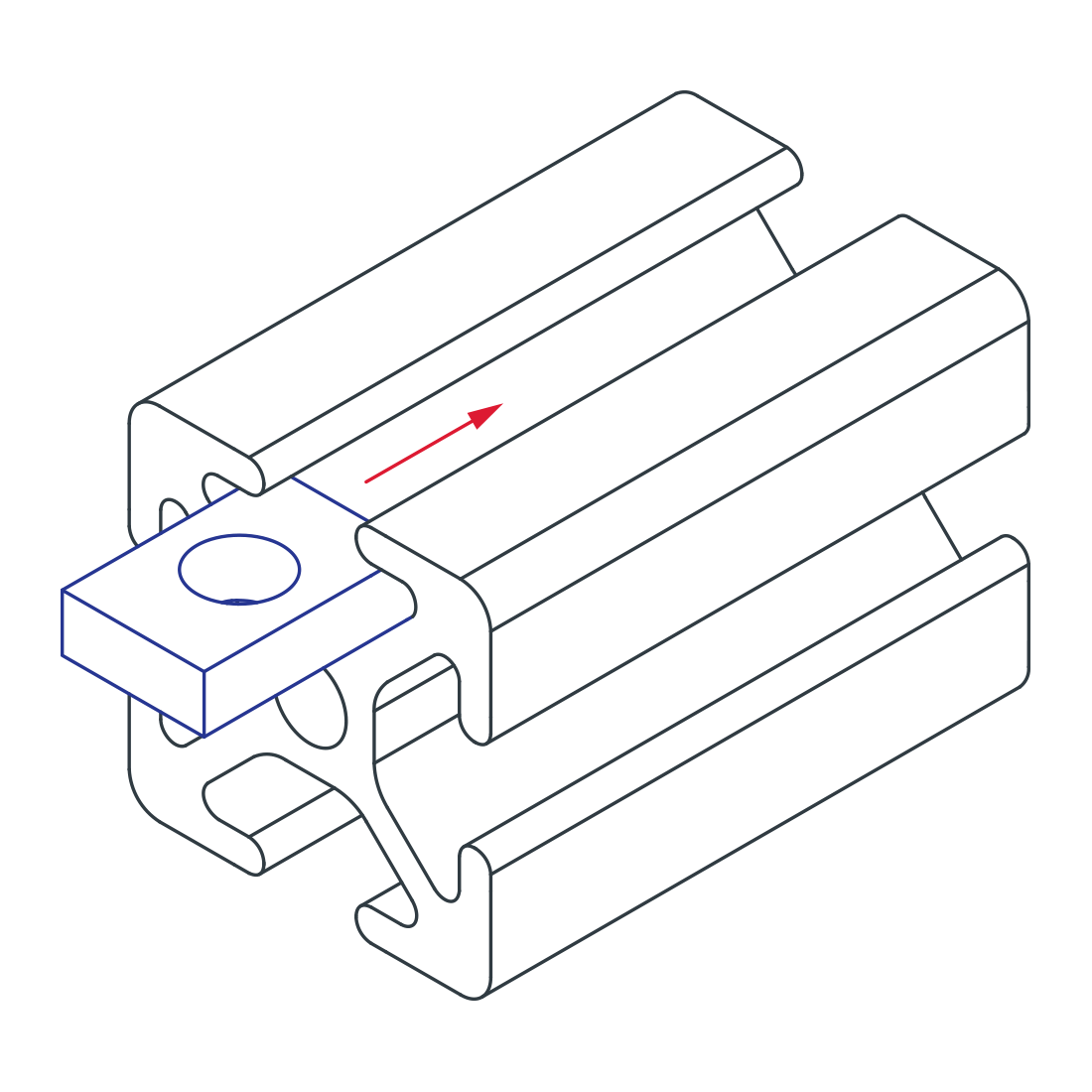

The slide-in economy T-nut block is a fastening option that loads from the profile ends. It is the most cost-effective slide-in T-nut and also provides infinite positioning along the profile T-slot. This fastener is available in a variety of sizes and threads.
Part No: 14124
$0.97
Additional information
| Brand |
|---|
No CAD files available for this product.
