Description
| Series | 15 Series, 30 Series, 40 Series |
| Material | Steel |
| Grade | Q235 |
| Finish | Zinc |
| Color | Bright |
| A | 16.00mm |
| B | 8.00mm |
| C | 11.80mm |
| D (Thread) | M6 X 1.0 |
| E | 4.80mm |
| F | 1.00mm |
| G | 8.00mm |
| Weight | 0.009900 |

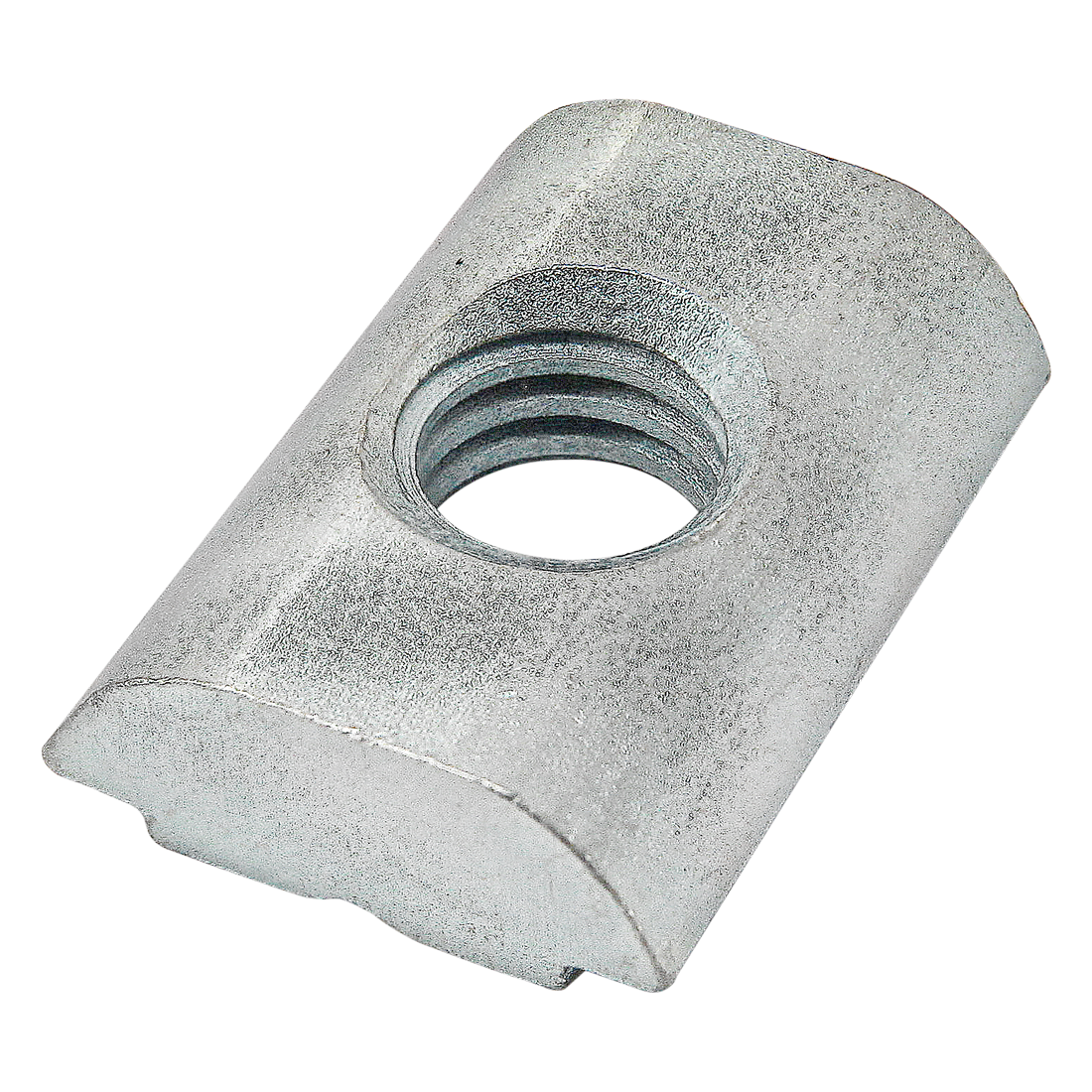

M6 Self-Aligning Roll-in T-Nut

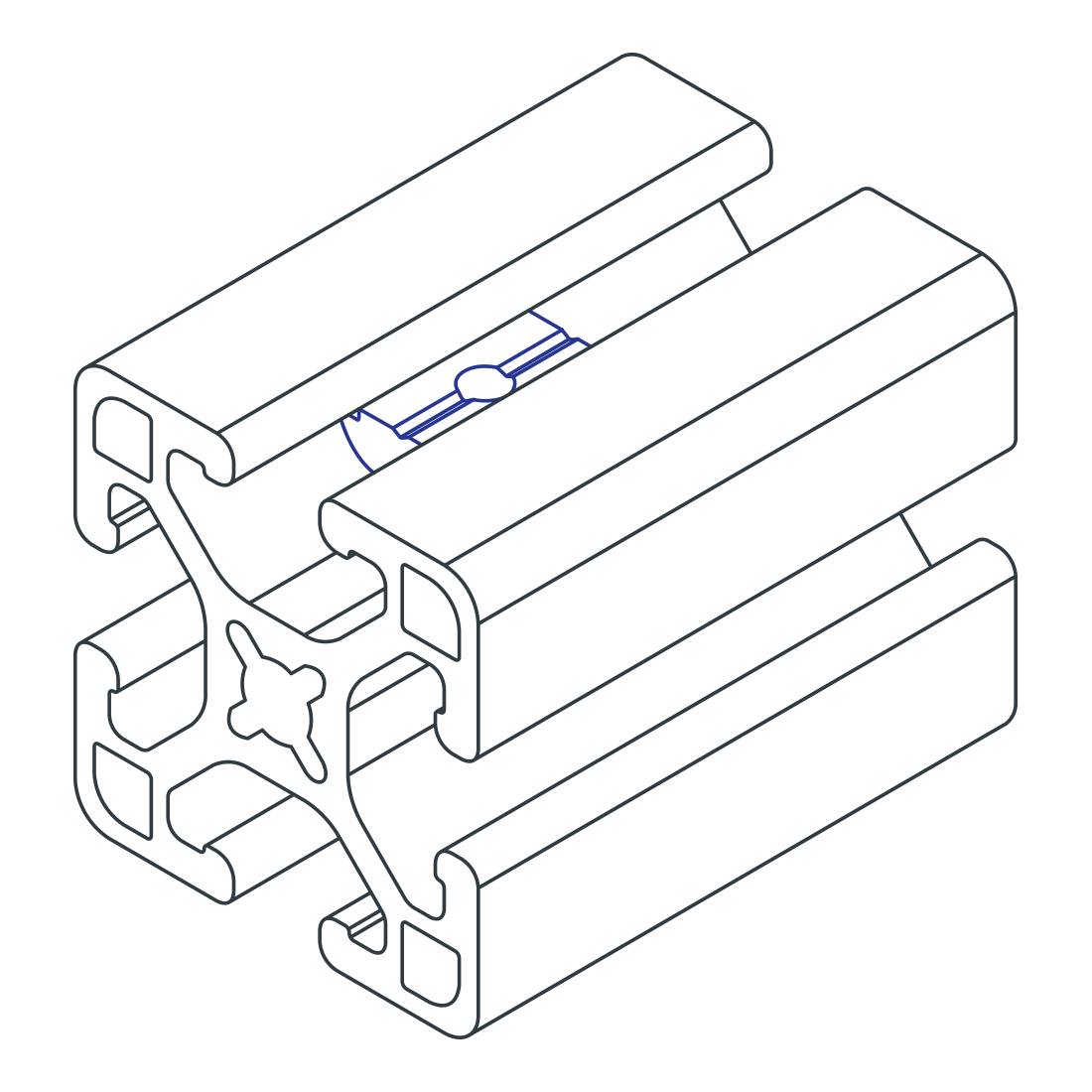

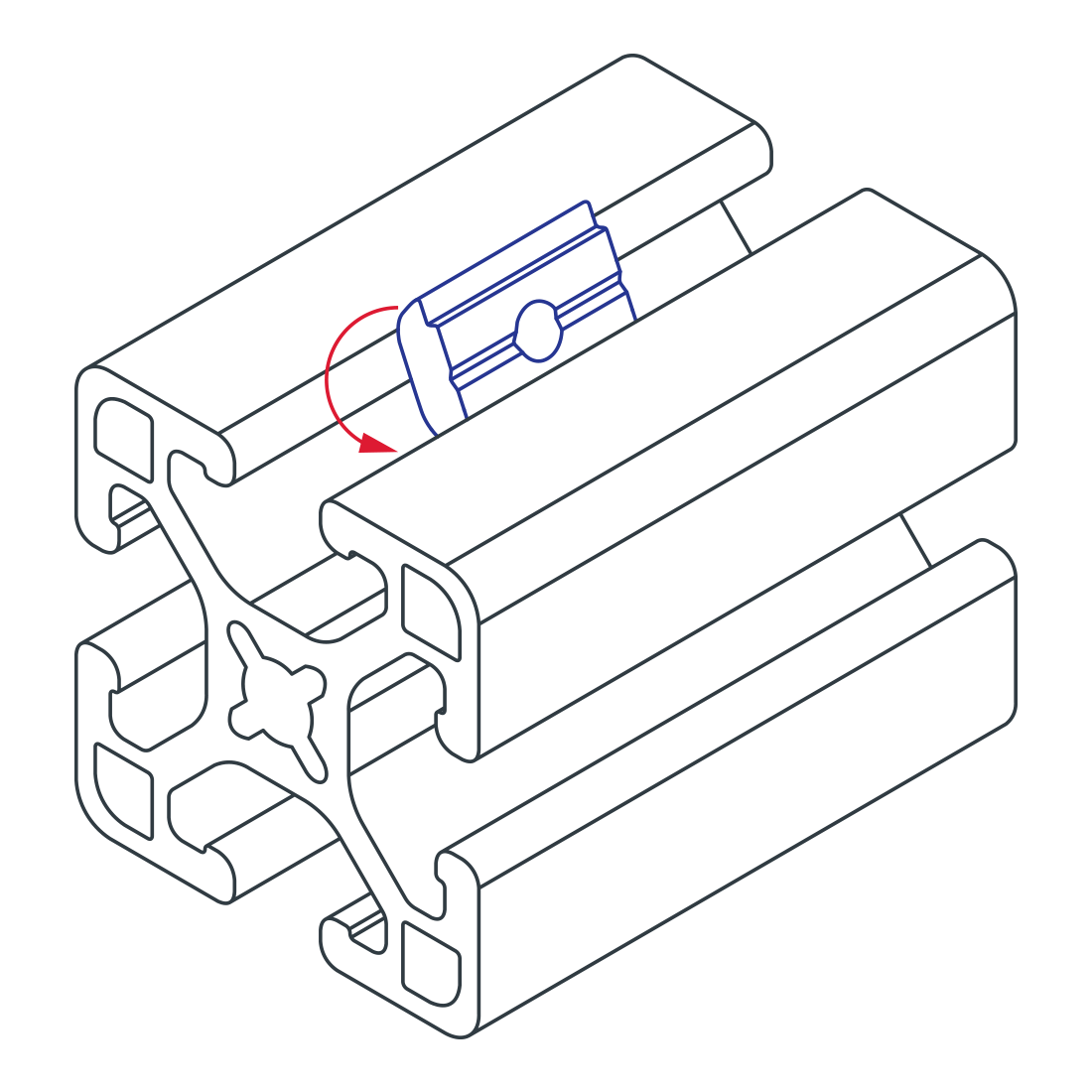

The self-aligning roll-in T-nut is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. The projection on the T-nut aligns it in the T-slot for easy assembly. This fastening option provides infinite positioning along the T-slot and is available with options in size and thread.
Part No: 13092
$4.07
Additional information
| Brand |
|---|
No CAD files available for this product.
