Description
| Series | 15 Series, 40 Series |
| Material | Zinc |
| Grade | Die-Cast |
| Finish | Zinc |
| Color | Bright |
| A | 8.70mm |
| B | 8.00mm |
| C | 5.70mm |
| D | 20.00mm |
| E | 10.00mm |
| F (Thread) | M6 X 1.0 |
| G | 7.80mm |
| H | 10.00mm |
| J | 20.00mm |
| Weight | 0.009000 |

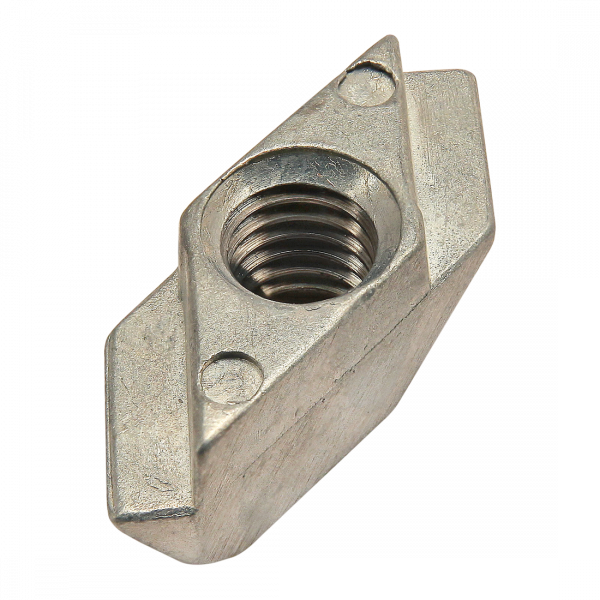

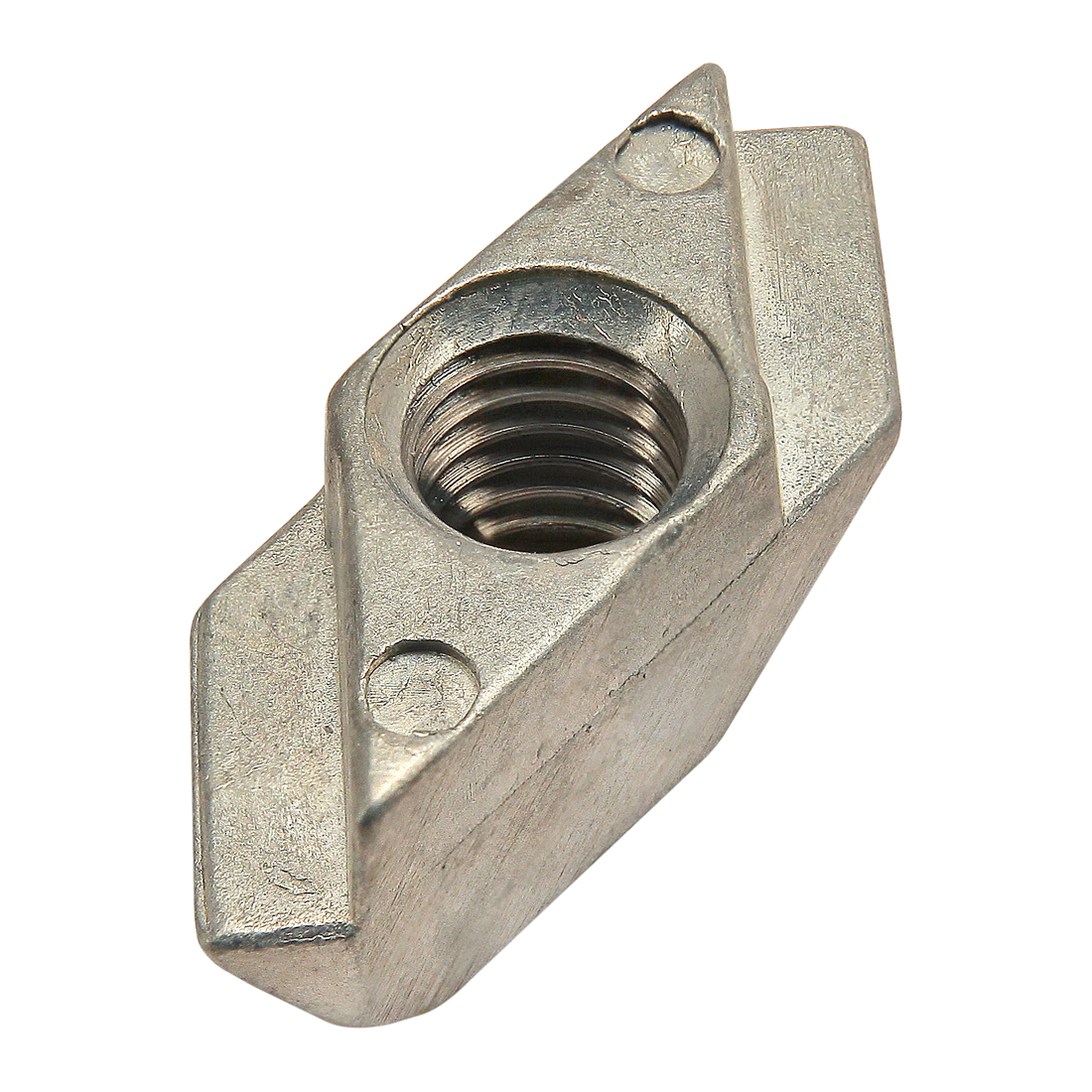

M6 Economy Drop-in T-Nut
The economy drop-in T-nut is a fastening option that loads either from the profile ends or side, which is helpful for applications where the ends are inaccessible. It is a cost-effective fastener that provides infinite positioning along the profile T-slot and is available in an option of threads.
Part No: 13182
$3.06
Additional information
| Brand |
|---|
No CAD files available for this product.
