Description
| Series | 10 Series |
| Material | Stainless-Steel |
| Grade | 304 Stainless |
| Finish | Stainless |
| Color | N/A |
| A | .630″ |
| B | .213″ |
| C | .386″ |
| D (Thread) | M4 X 0.7 |
| E | .253″ |
| F | .203″ |
| Weight | 0.008000 |

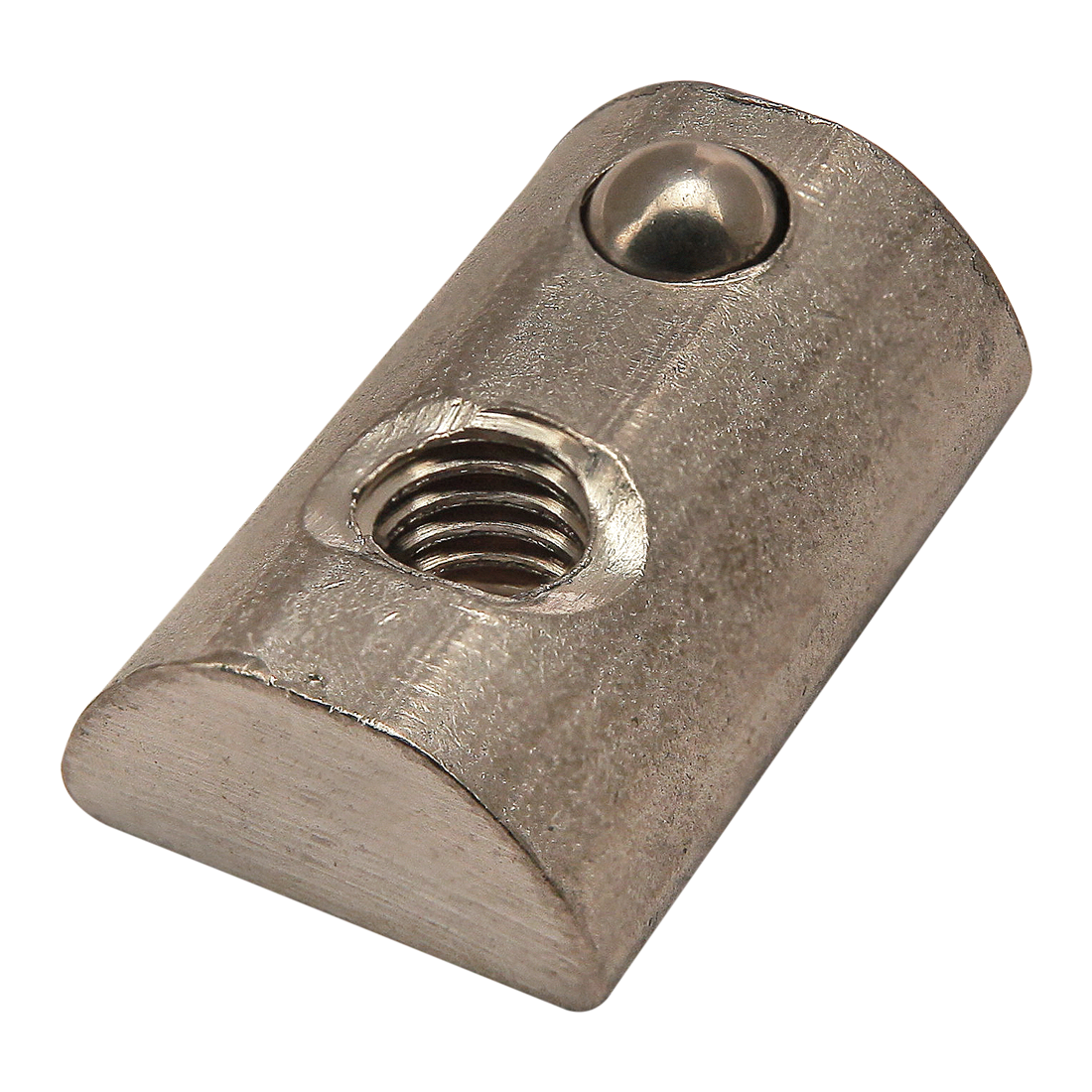

M4 Roll-In T-Nut with Ball Spring
The roll-in T-nut with ball spring is a fastening option that loads from the profile ends or side, which is helpful for applications where the ends are inaccessible. The ball spring holds the T-nut in the T-slot, even when the profile is in a vertical position, simplifying the assembly process. It is available with options in size, material, thread, and finish.
Part No: 3666
$7.41
Additional information
| Brand |
|---|
No CAD files available for this product.
