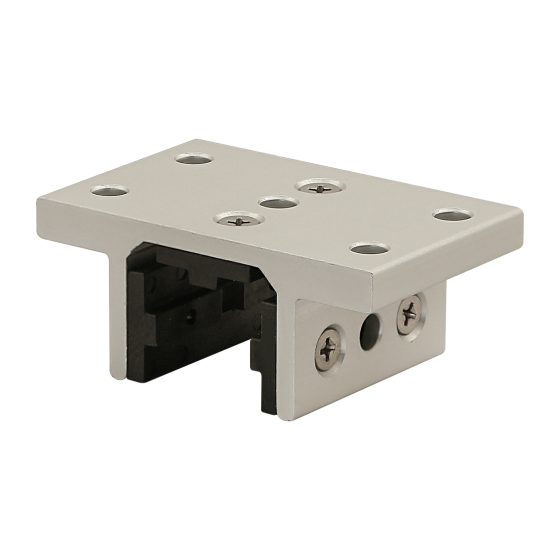

25 Series 3 Slot Mount – Double Flange Short Standard Linear Bearing with Brake Holes
The 3-slot mount – double flange short standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Description
| Series |
25 Series |
| Material |
Aluminum |
| Grade |
6063-T6 |
| Process |
Extruded |
| Finish |
Anodize |
| Color |
Clear |
| A |
31.20mm |
| B |
8.00mm |
| C |
23.20mm |
| D |
1.80mm |
| E |
41.15mm |
| F |
4.00mm |
| G |
33.15mm |
| H |
7.80mm |
| J |
16.47mm |
| K |
4.00mm |
| L |
74.09mm |
| M |
47.00mm |
| N |
23.50mm |
| P |
11.00mm |
| Q |
8.48mm |
| R |
37.05mm |
| S |
25.00mm |
| T |
#8 FHS |
| U |
6.53mm |
| V |
6.30mm |
| W |
57.12mm |
| X |
25.00mm |
| Y |
11.00mm |
| Z |
10.64mm |
| Weight |
0.202000 |
| Series |
25 Series |
| Material |
Aluminum |
| Grade |
6063-T6 |
| Process |
Extruded |
| Finish |
Anodize |
| Color |
Clear |
| A |
31.20mm |
| B |
8.00mm |
| C |
23.20mm |
| D |
1.80mm |
| E |
41.15mm |
| F |
4.00mm |
| G |
33.15mm |
| H |
7.80mm |
| J |
16.47mm |
| K |
4.00mm |
| L |
74.09mm |
| M |
47.00mm |
| N |
23.50mm |
| P |
11.00mm |
| Q |
8.48mm |
| R |
37.05mm |
| S |
25.00mm |
| T |
#8 FHS |
| U |
6.53mm |
| V |
6.30mm |
| W |
57.12mm |
| X |
25.00mm |
| Y |
11.00mm |
| Z |
10.64mm |
| Weight |
0.202000 |
