Description

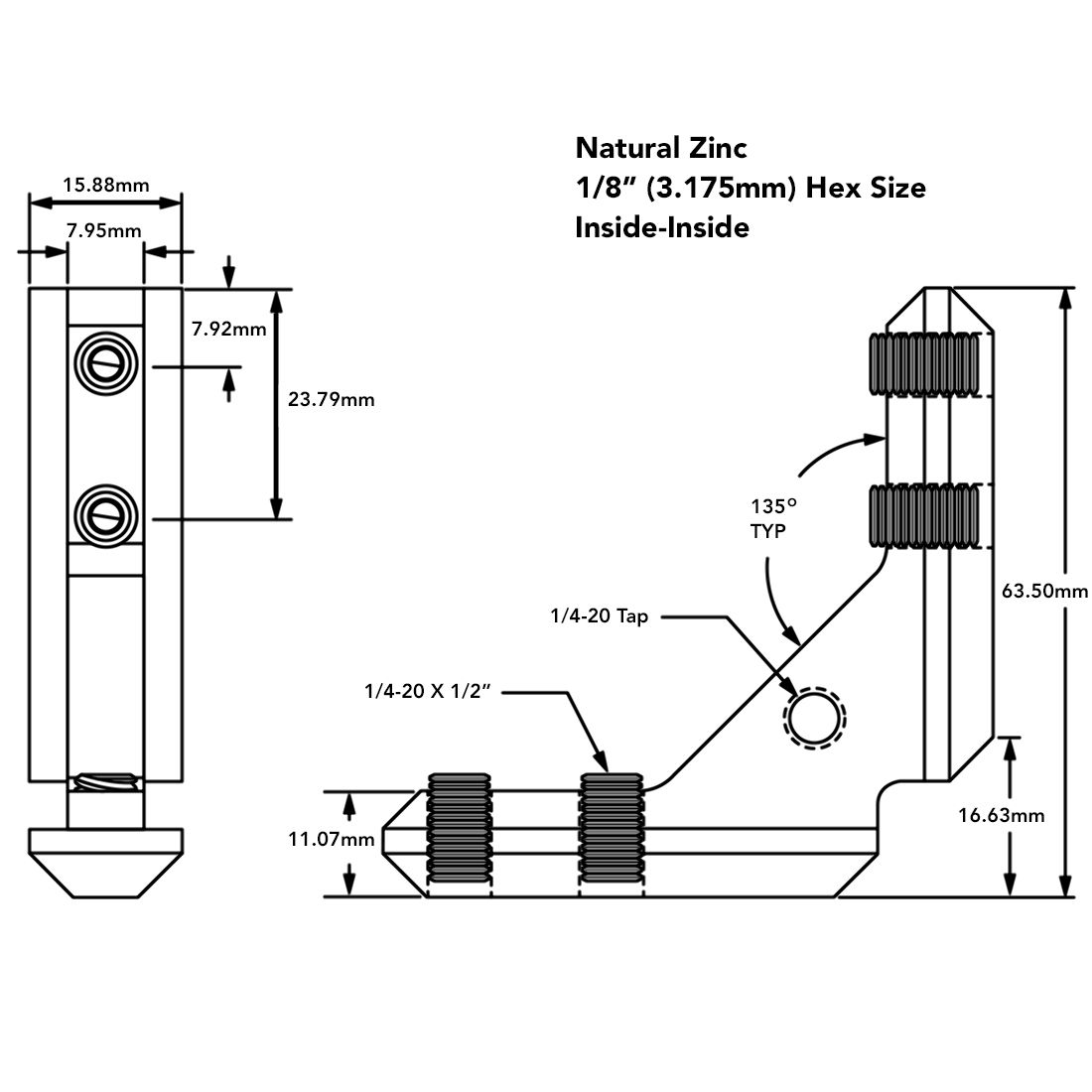

| Series | 40 Series |
| Material | Zinc |
| Finish | Natural |
| A | 15.88mm |
| B | 7.95mm |
| C | 7.92mm |
| D | 23.79mm |
| E | 11.07mm |
| F | 63.50mm |
| G | 16.63mm |
| H | 1/4-20 Tap |
| J | 1/4-20 X 1/2” |
| Weight | 0.181000 |

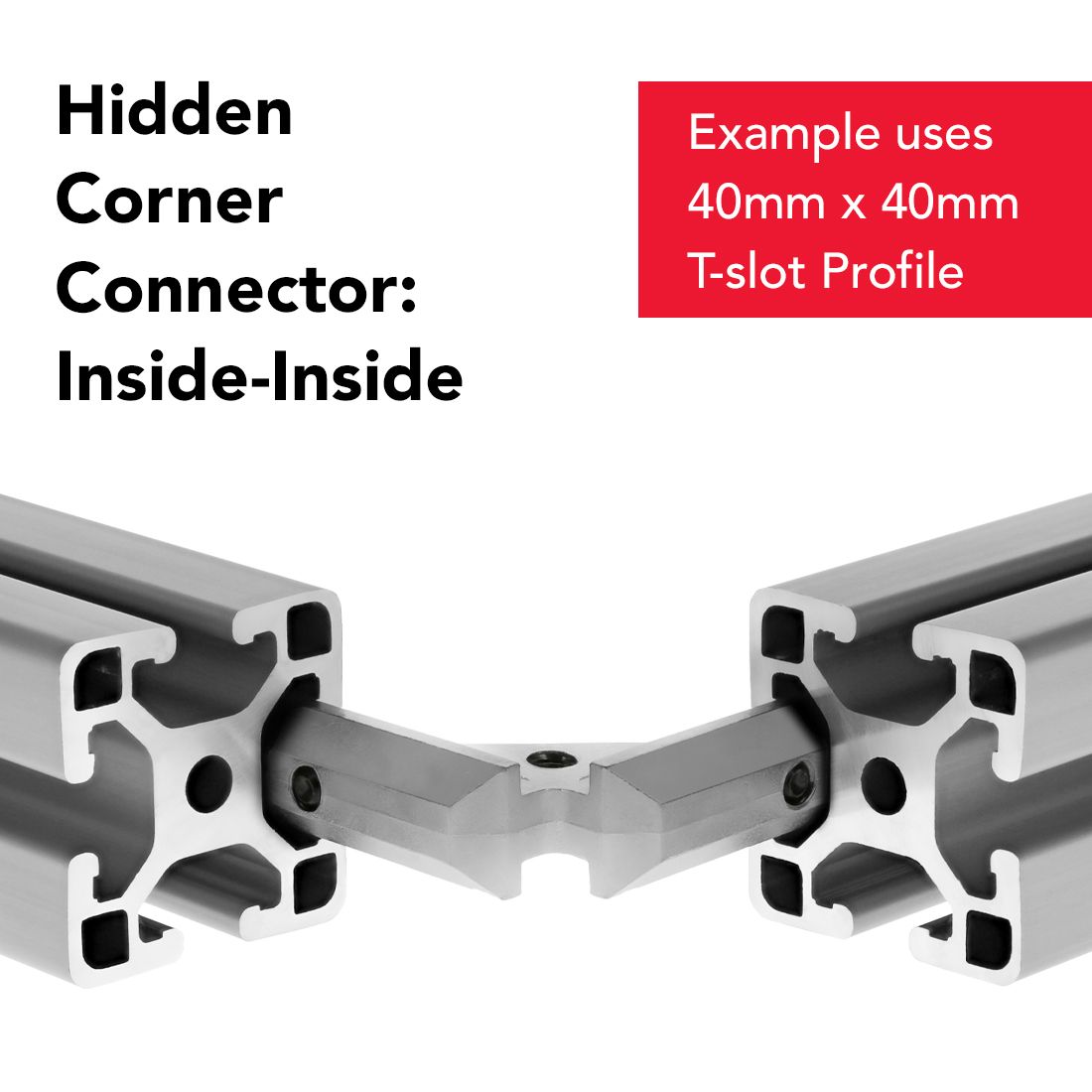

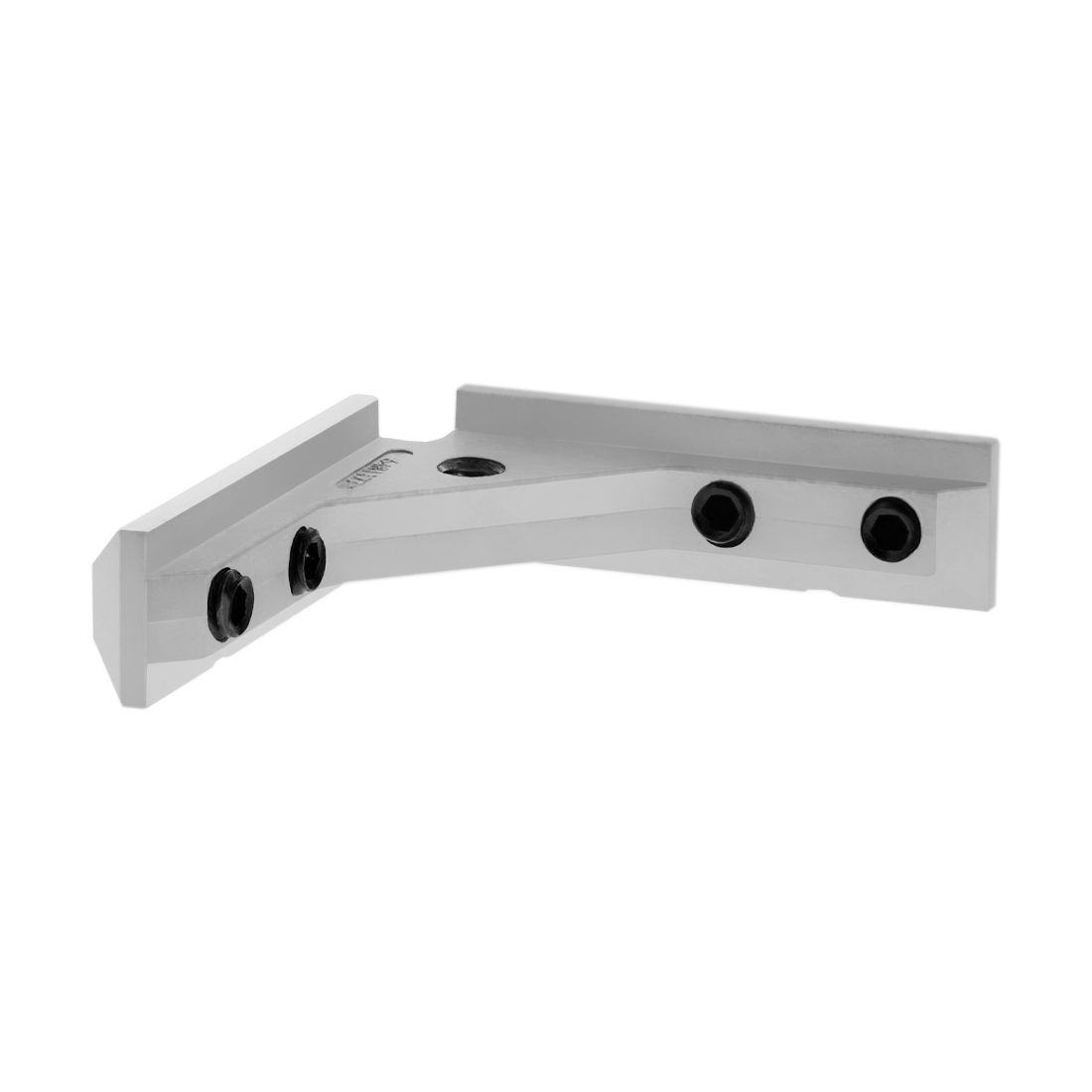

90 Degree Inside Corner Connector

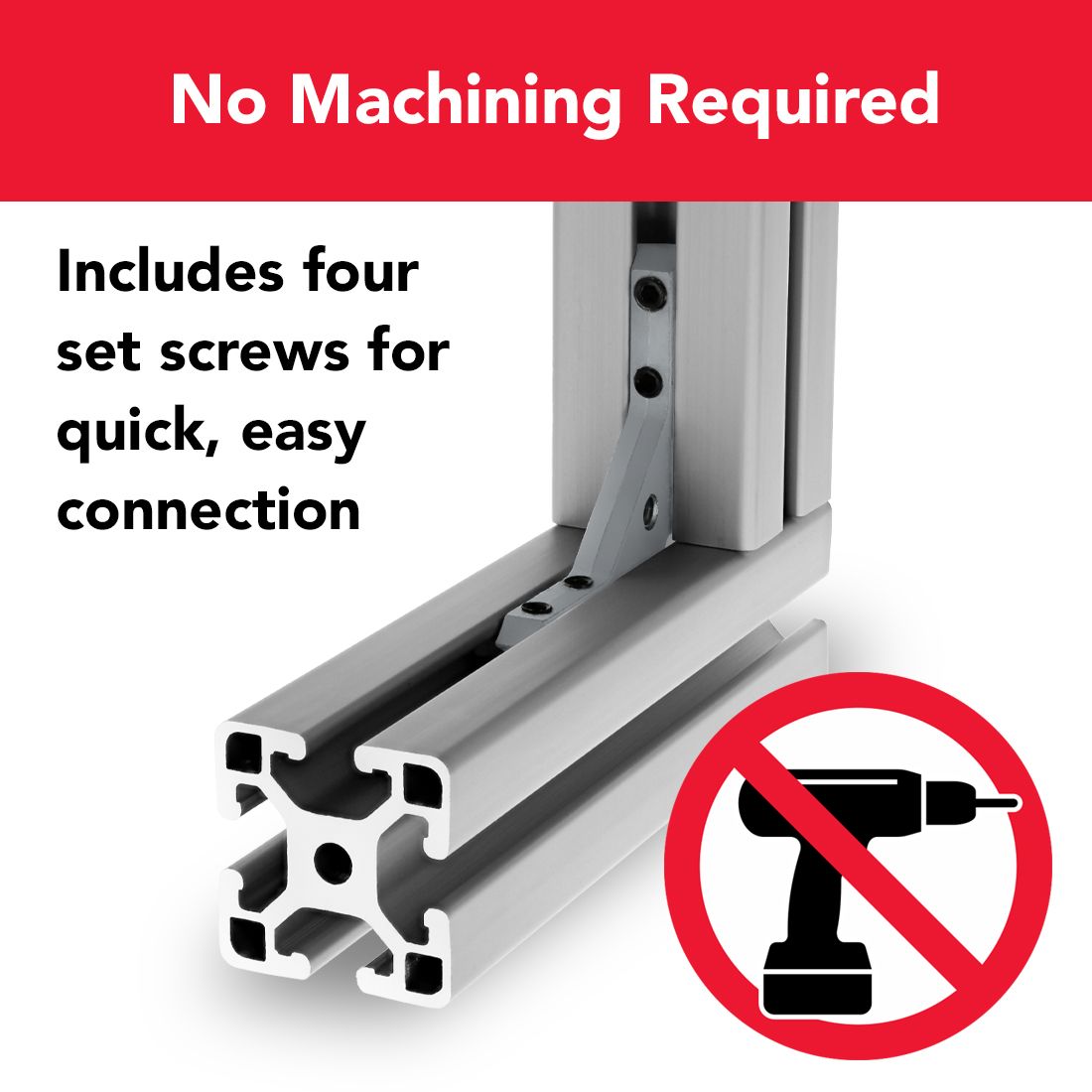

The 90 degree inside corner connector is a strong method for creating 90 degree connections between profiles. There are options available in aluminum or zinc. The required hardware is included with the connectors and no machining services are required, making it a cost-effective fastening method. The zinc connector has a through-hole for panel mounting.
Part No: 40-3368
$18.93
Additional information
| Brand |
|---|
No CAD files available for this product.
