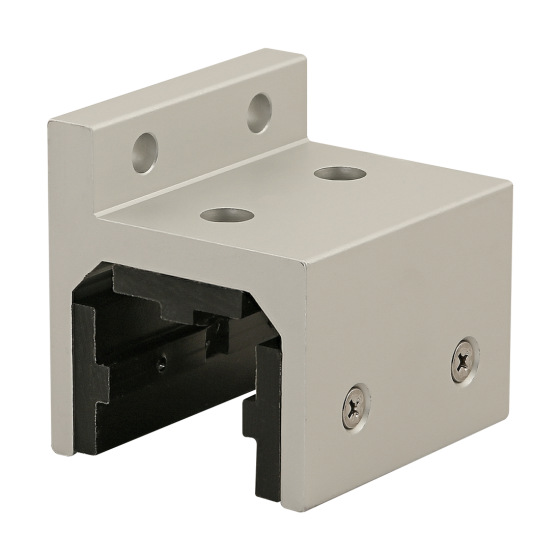

The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Part No: 40-6815
$138.81
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | 71.83mm |
| B | 19.00mm |
| C | 8.99mm |
| D | 2.58mm |
| E | 65.13mm |
| F | 52.83mm |
| G | 12.32mm |
| H | 6.15mm |
| J | 52.83mm |
| K | 11.99mm |
| L | 75.00mm |
| M | n/a |
| N | 17.50mm |
| P | 32.56mm |
| Q | 40.00mm |
| R | #10 FHS |
| S | n/a |
| T | 8.33mm |
| U | 40.00mm |
| V | 17.50mm |
| W | 9.53mm |
| X | 17.42mm |
| Weight | 0.719000 |
