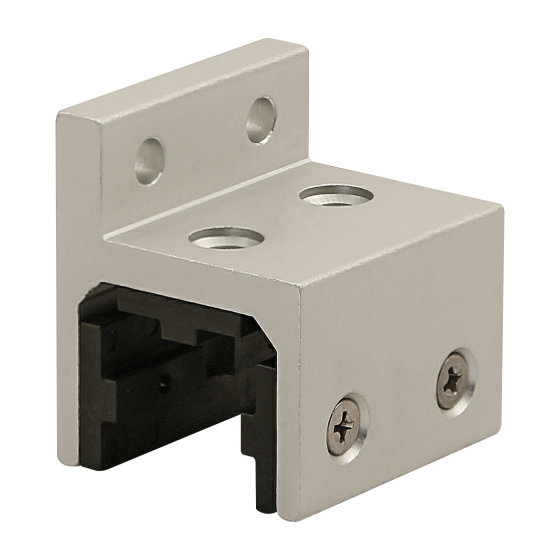

The 3-slot mount – single flange short standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a single flange and is a shorter option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Part No: 25-6715
$106.18
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | 49.73mm |
| B | 16.48mm |
| C | 5.99mm |
| D | 1.80mm |
| E | 41.12mm |
| F | 33.15mm |
| G | 7.80mm |
| H | 3.99mm |
| J | 33.25mm |
| K | 7.98mm |
| L | 47.00mm |
| M | n/a |
| N | 11.00mm |
| P | 20.56mm |
| Q | 25.00mm |
| R | #8 FHS |
| S | n/a |
| T | 6.30mm |
| U | 25.00mm |
| V | 11.00mm |
| W | 8.23mm |
| X | 10.69mm |
| Weight | 0.191000 |
