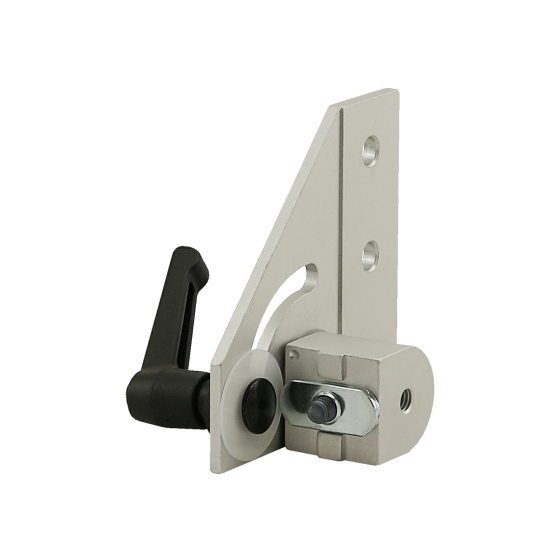

The 90 degree right hand pivot bracket assembly with “L” handle is commonly used to add motion to certain elements of your project. It is comprised of one 90 degree right hand pivot bracket, one “L” handle, and one 0 degree structural pivot nub. The shoulder bolt and nylon thrust washers are also included. The bracket has a permanently lubricated bronze bushing that acts as high-strength pivot point.
Part No: 25-4148
$63.91
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Plate (Qty.) | 25-4137 (1) |
| Nub (Qty.) | 25-4187 (1) |
| Handle (Qty.) | 25-2796 (1) |

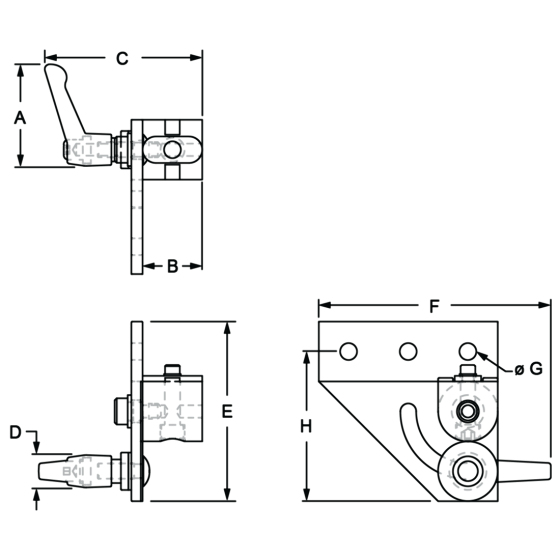

| A | 51.84mm |
| B | 25.00mm |
| C | 69.24mm |
| D | 13.77mm |
| E | 75.00mm |
| F | 107.46mm |
| G | 6.50mm |
| H | 62.50mm |
| Weight | 0.253000 |
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
75-3404 | 3 | Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
$20.87
$26.77
$14.78
Reviews
There are no reviews yet.
