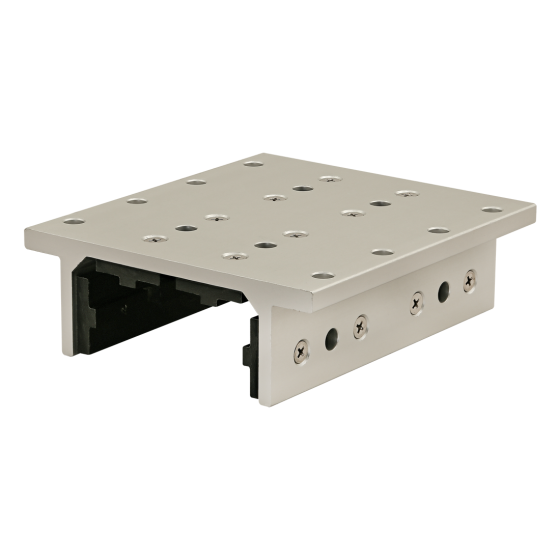

The 4-slot mount – double flange long standard linear bearing with brake holes is typically used in linear motion applications. It houses profiles with a minimum of four open T-slots, has a double flange and is a longer option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Part No: 40-6524
$234.16
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |

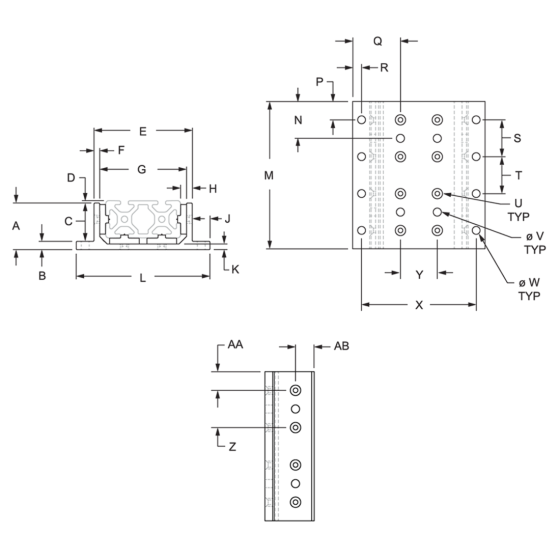

| A | 50.00mm |
| B | 9.00mm |
| C | 41.00mm |
| D | 2.58mm |
| E | 105.31mm |
| F | 6.15mm |
| G | 93.01mm |
| H | 12.32mm |
| J | 19.00mm |
| K | 6.15mm |
| L | 143.31mm |
| M | 160.00mm |
| N | 40.00mm |
| P | 20.00mm |
| Q | 51.66mm |
| R | 9.50mm |
| S | 40.00mm |
| T | 40.00mm |
| U | #10 FHS |
| V | 8.71mm |
| W | 8.33mm |
| X | 124.31mm |
| Y | 40.00mm |
| Z | 40.00mm |
| AA | 20.00mm |
| AB | 17.42mm |
| Weight | 1.737000 |
