Description
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Process | Extruded |

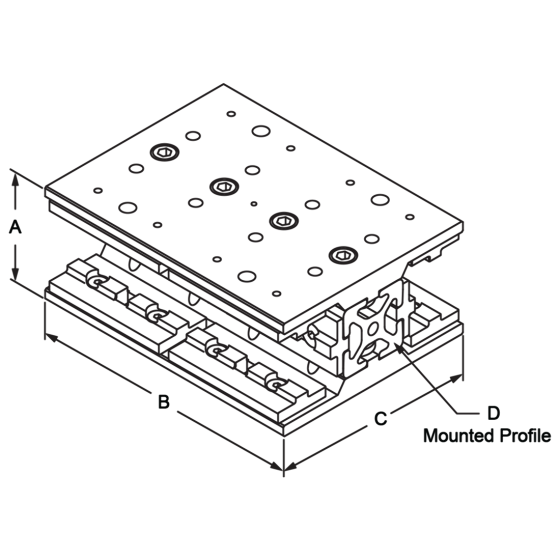

| A | 40.85mm |
| B | 100.00mm |
| C | 79.38mm |
| D | 25-2525 |
| Weight | 0.969000 |

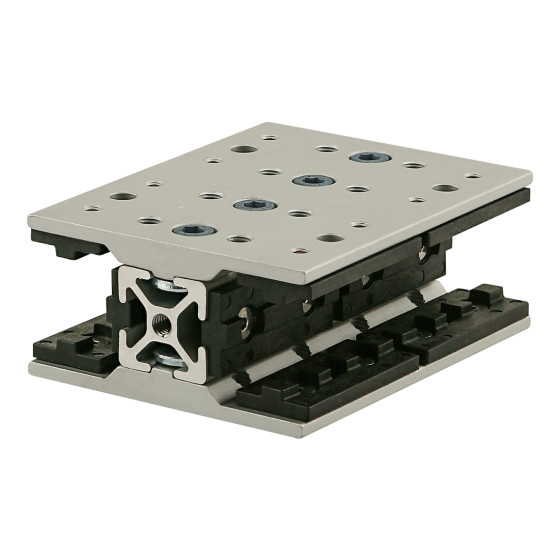

25 Series Long – Double Mount Unibearing™ Assembly
The long – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a long double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.
Part No: 25-6736
$145.28
