    25 Series Short – Double Mount Unibearing™ Assembly

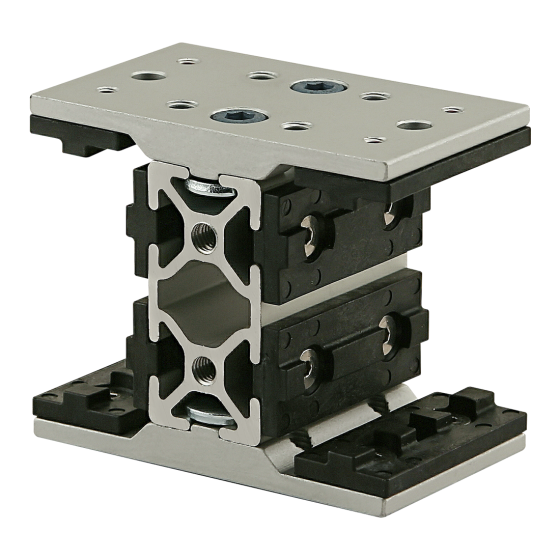

    The short – double mount UniBearing™ assembly is commonly used for linear motion applications and is comprised of a short double mount UniBearing™ that is attached to a T-slot profile. There are pre-tapped holes in the profile ends as well as in the housing unit for connecting accessories. Shim kits are included.

    Categories:

    Part No: 25-6735

    $146.58

    SKU: 25-6735 Categories: , ,

    Description

    Series 25 Series
    Material Aluminum
    Grade 6063-T6
    Finish Anodize
    Color Clear
    Process Extruded

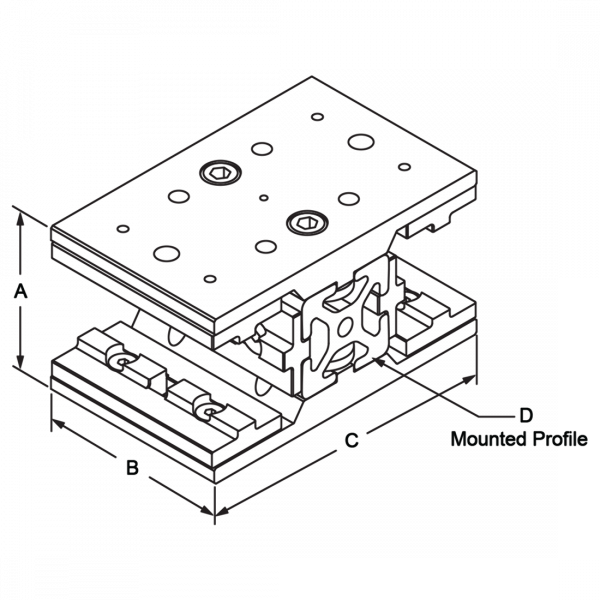

    A 65.85mm
    B 47.00mm
    C 79.38mm
    D 25-2550
    Weight 0.594000
    25-6735_dimensional
