Description
| Series | 25 Series, 30 Series, 40 Series, 45 Series |
| Material | Aluminum |
| Finish | Tumbled Mill |
| Color | Silver |
| Process | Extruded |

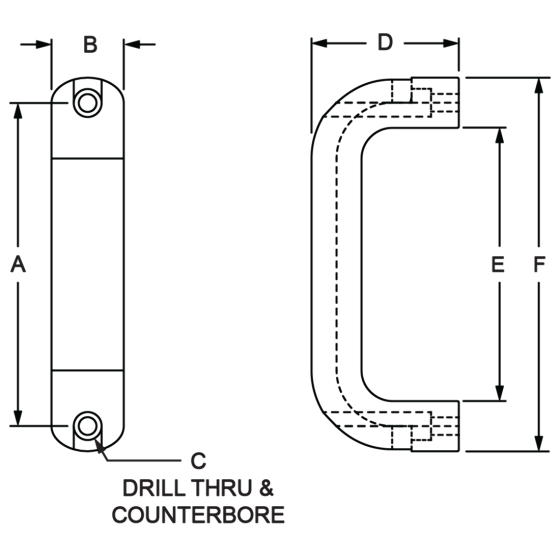

| A | 116.00mm |
| B | 26.00mm |
| C | M6 X 1.0 |
| D | 53.00mm |
| E | 98.00mm |
| F | 134.00mm |
| Weight | 0.339000 |

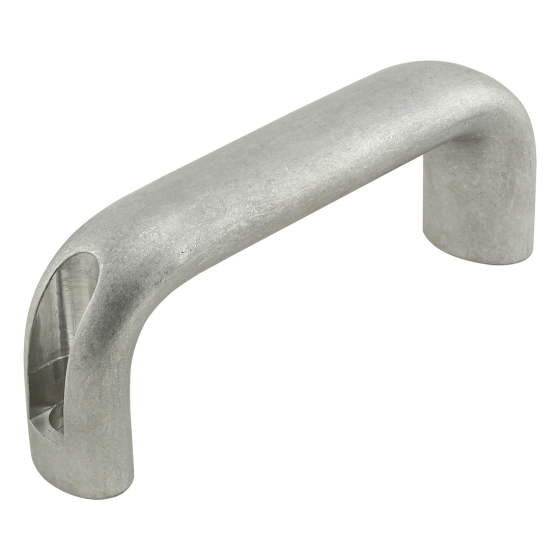

25, 30, 40 & 45 Series Aluminum Door Handle
The aluminum door handle has a rigid design that creates a smooth shape and durable finish. It is corrosion-resistant, lending itself to both indoor and outdoor applications. It is available in black or natural mill finish and mounts directly to a T-slot profile.
Part No: 40-2885
$59.84

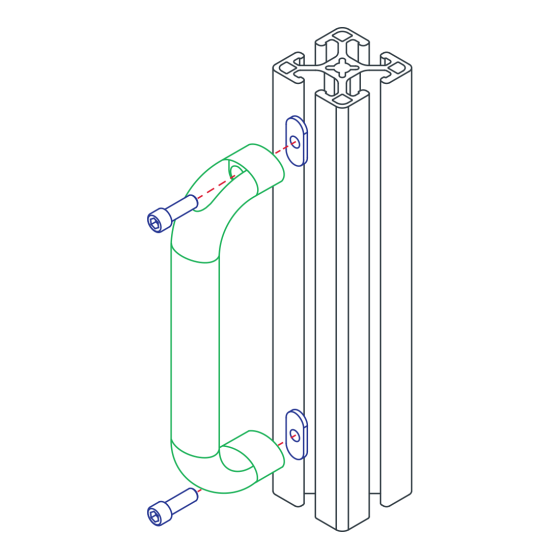

Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
  |
11-6518 | 2 |
M6 x 18.00mm Socket Head Cap Screw (SHCS) |
|
25-1961 | 2 |
M6 Slide-in Economy T-Nut - Centered Thread |
 |
11-6520 | 2 |
M6 x 20.00mm Socket Head Cap Screw (SHCS) |
|
40-1961 | 2 |
M6 Slide-in Economy T-Nut - Centered Thread |
 |
11-6520 | 2 |
M6 x 20.00mm Socket Head Cap Screw (SHCS) |
|
13129 | 2 |
45 Series M6 Standard Drop-in T-Nut |
Products You May Need

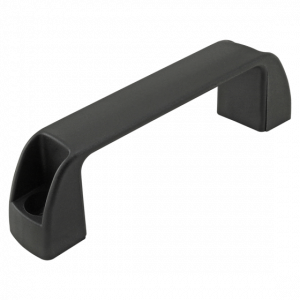

40 Series Plastic Door Handle
