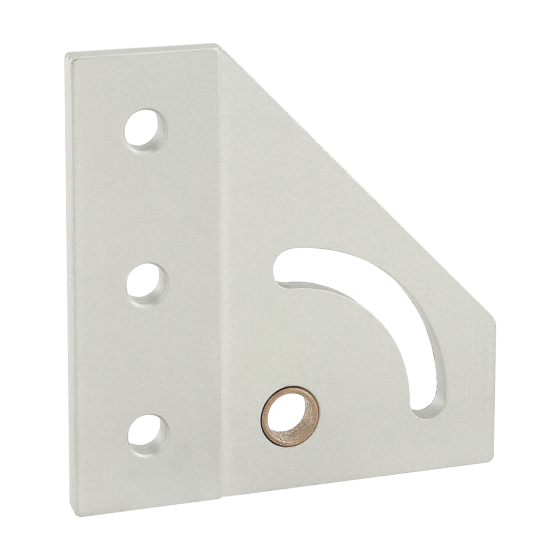

25 Series 90 Degree Left Hand Pivot Bracket Plate

The 90 degree left hand pivot bracket plate is commonly used to add motion to certain elements of your project. The plate provides a full 90 degrees of axial motion and has a permanently lubricated bronze bushings that act as a high-strength pivot point. The suggested hardware to mount the plate to a profile can be found on the “Suggested Hardware” tab.

Part No: 25-4133

$25.82

SKU: 25-4133 Categories: , ,

Description

Series 25 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
A 75.00mm
B 12.50mm
C 25.00mm
D 6.50mm
E 8.00mm
F 6.73mm
G 4.00mm
H 3.24mm
Weight 0.083000

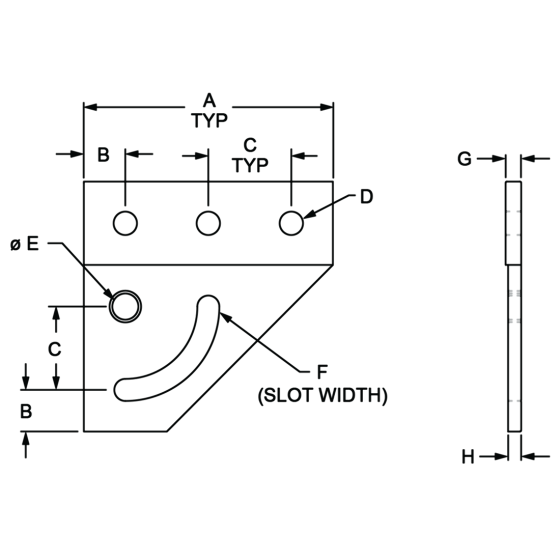

25-4133_dimensional

Reviews

There are no reviews yet.

Be the first to review “25 Series 90 Degree Left Hand Pivot Bracket Plate”

Your email address will not be published. Required fields are marked *

Mount to T-Slot

Series Part Number Qty Description
75-3404 3 Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc
