Description
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 75.00mm |
| B | 37.50mm |
| C | 25.00mm |
| D | 125.00mm |
| E | 12.50mm |
| F | 25.00mm |
| G | 6.50mm |
| H | 8.00mm |
| J | 6.73mm |
| K | 4.00mm |
| L | 3.24mm |
| Weight | 0.132000 |

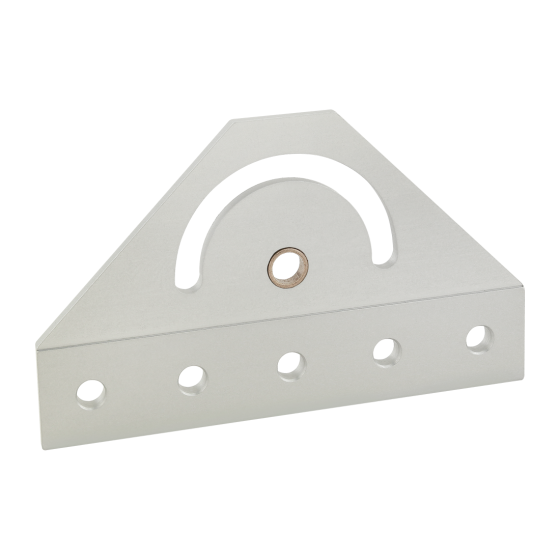

25 Series 180 Degree Pivot Bracket
The 180 degree pivot bracket plate is commonly used to add motion to certain elements of your project. The plate provides a full 180 degrees of axial motion and has permanently lubricated bronze bushings that act as high-strength pivot points. See the “Suggested Hardware” tab for the suggested hardware to mount the plate to a profile.
Part No: 25-4024
$30.31
Mount to T-Slot
| Series | Part Number | Qty | Description |
|---|---|---|---|
 |
75-3404 | 5 | Bolt Assembly: M6 x 10.00mm Blue BHSCS with Slide-In Economy T-Nut - Centered Thread - Bright Zinc |
