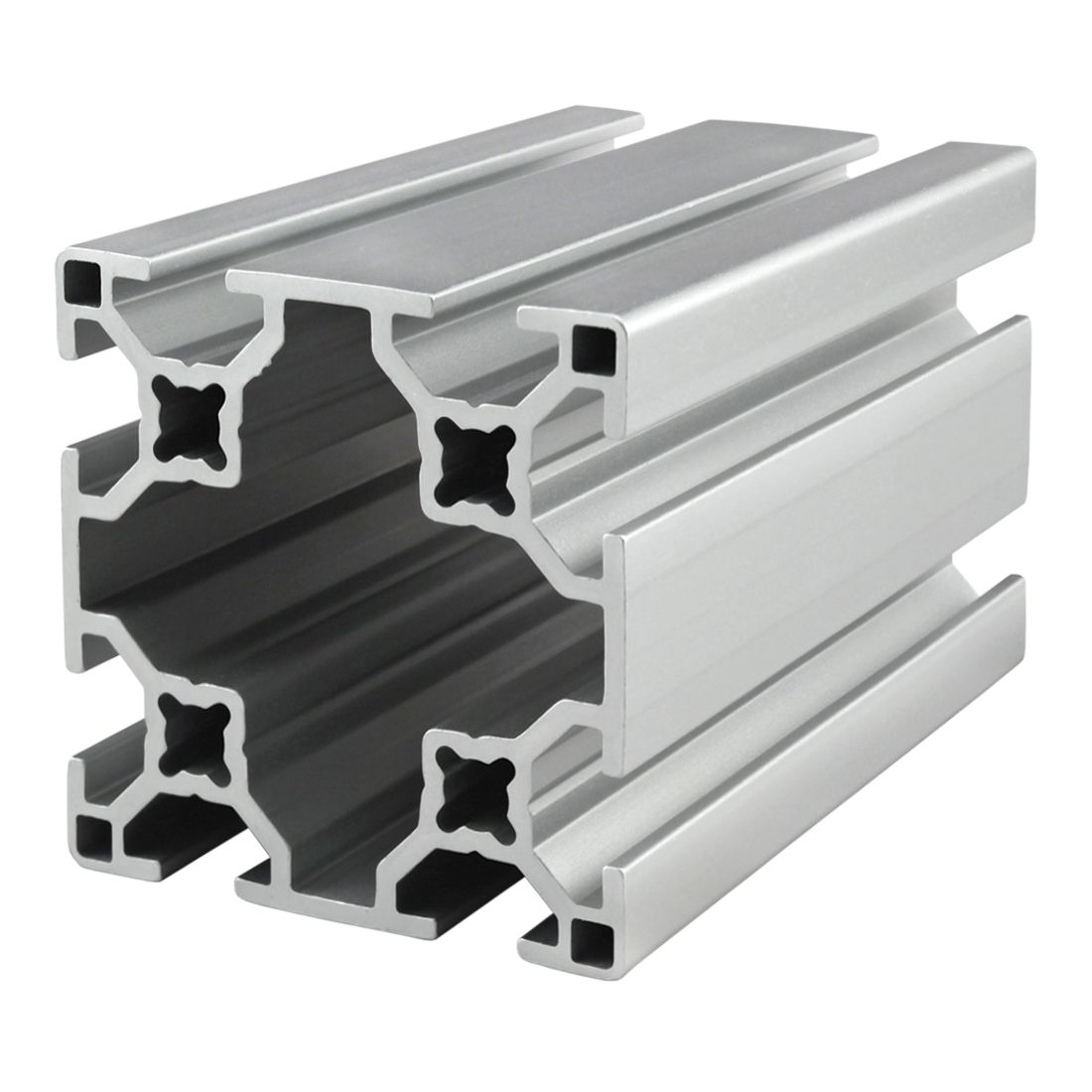

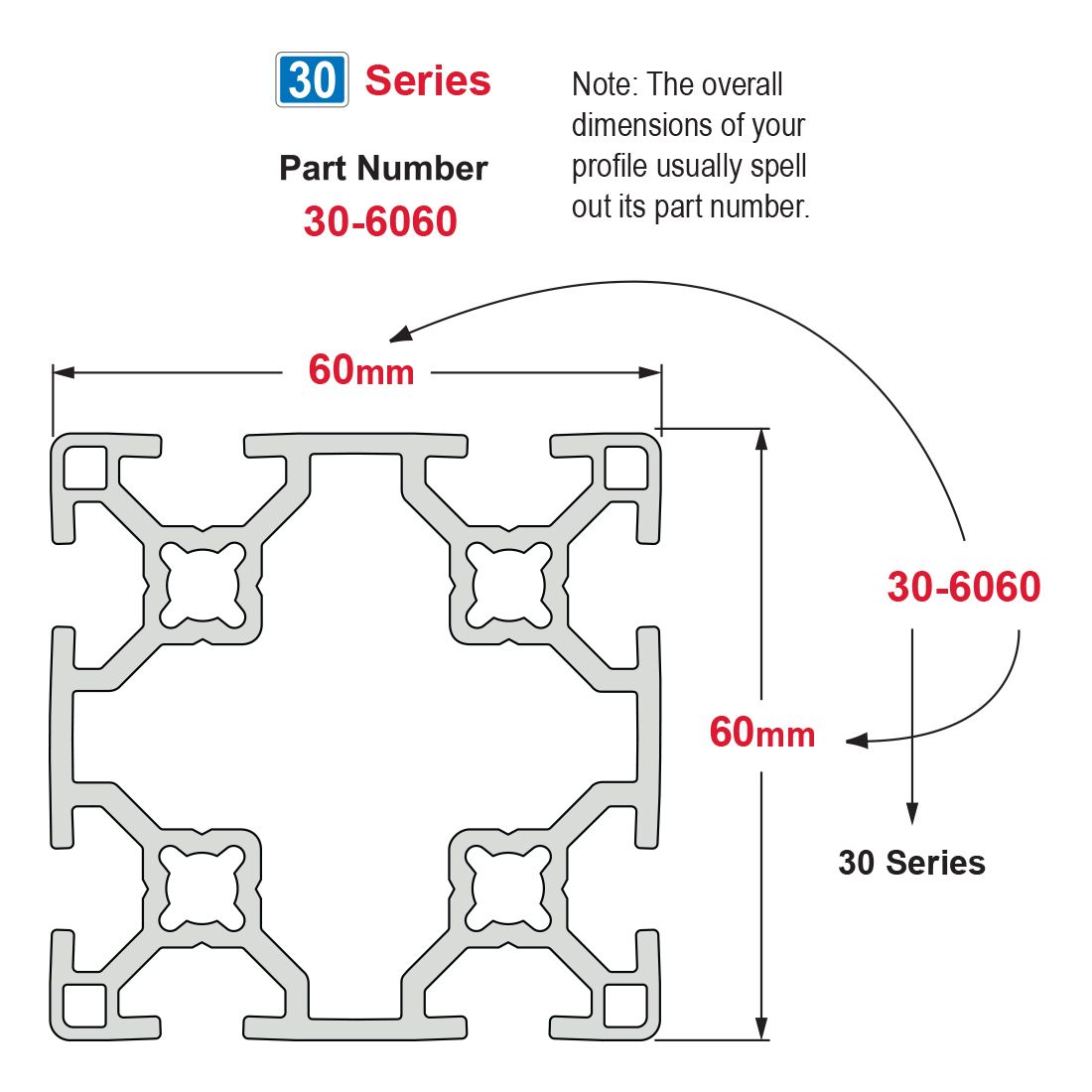

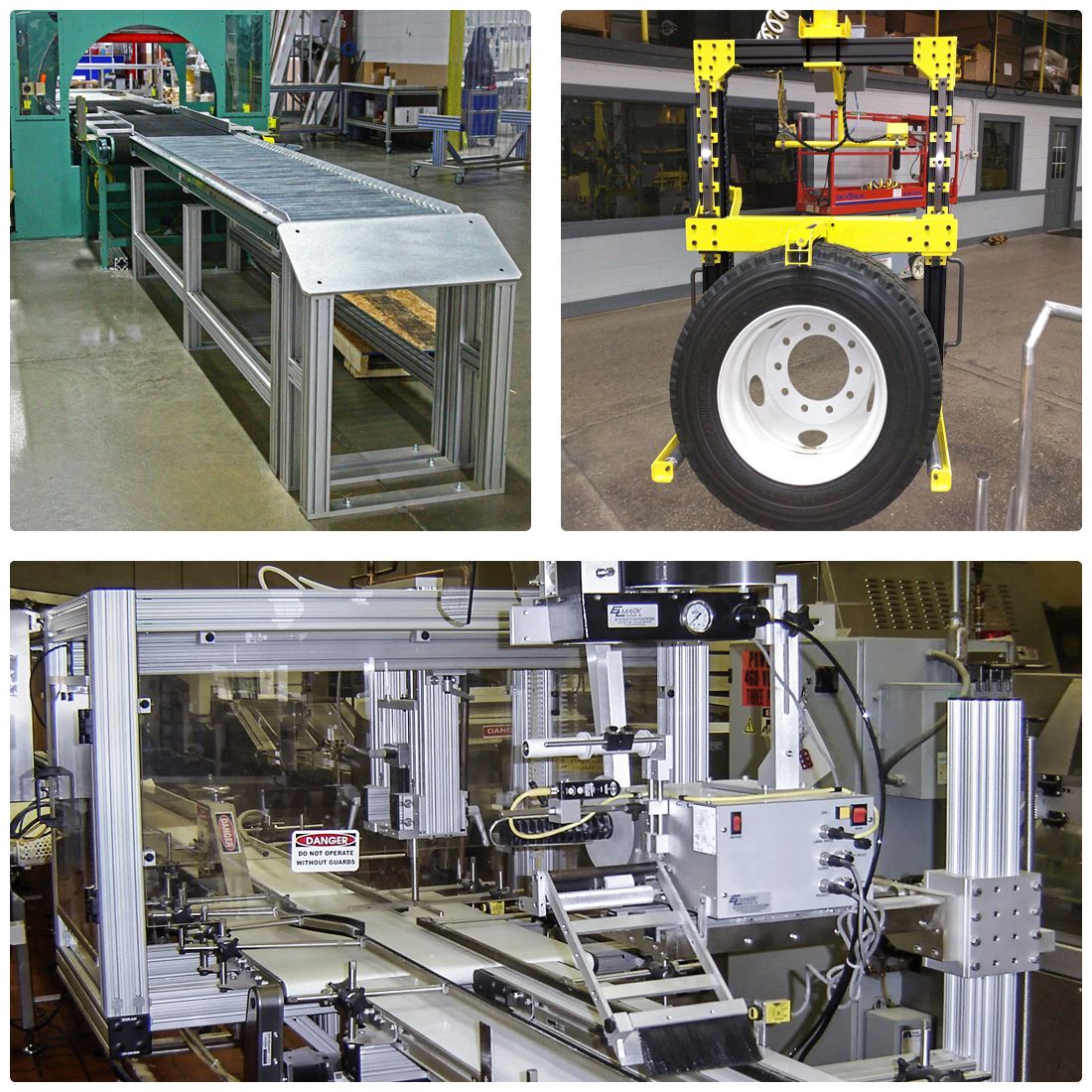

30-6060 is a 60mm x 60mm metric 30 series square T-slot profile with eight open T-slots, two on each 60mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-6060 profile is compatible with 30 series fasteners. The eight open T-slots and strength make it a great choice for automation applications, machine frames and workstations.
Part No: 30-6060
$0.11
| Max Length (inches) | 238.188976 |
| Series | 30 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |

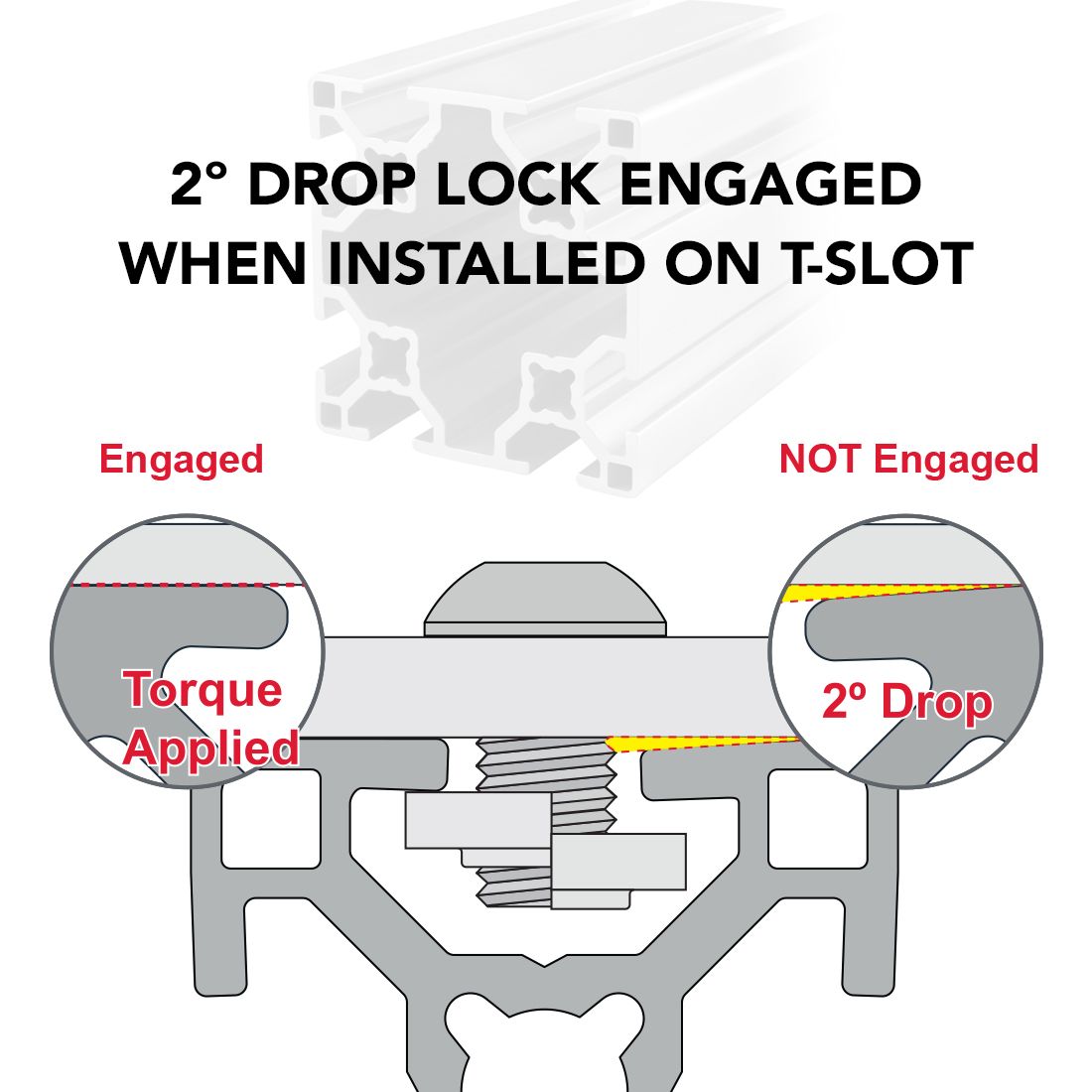

| Drop Lock | 2° |
| Moment of Inertia – IX | 36.3307 cm⁴ |
| Moment of Inertia – IY | 36.3307 cm⁴ |
| Surface Area | 9.299 Sq cm |
| Yield Strength | 172.37 N / Sq mm |
| Modulus of Elasticity | 68.947.6 N / Sq mm |
| Weight lbs | 0.1441 per inch |
| Weight | 0.144100 |
| Brand |
|---|
No CAD files available for this product.
$0.03
$0.07
$0.02
