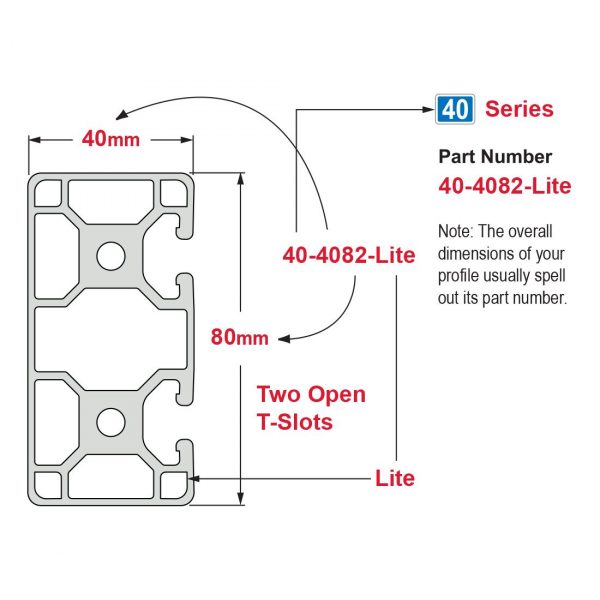

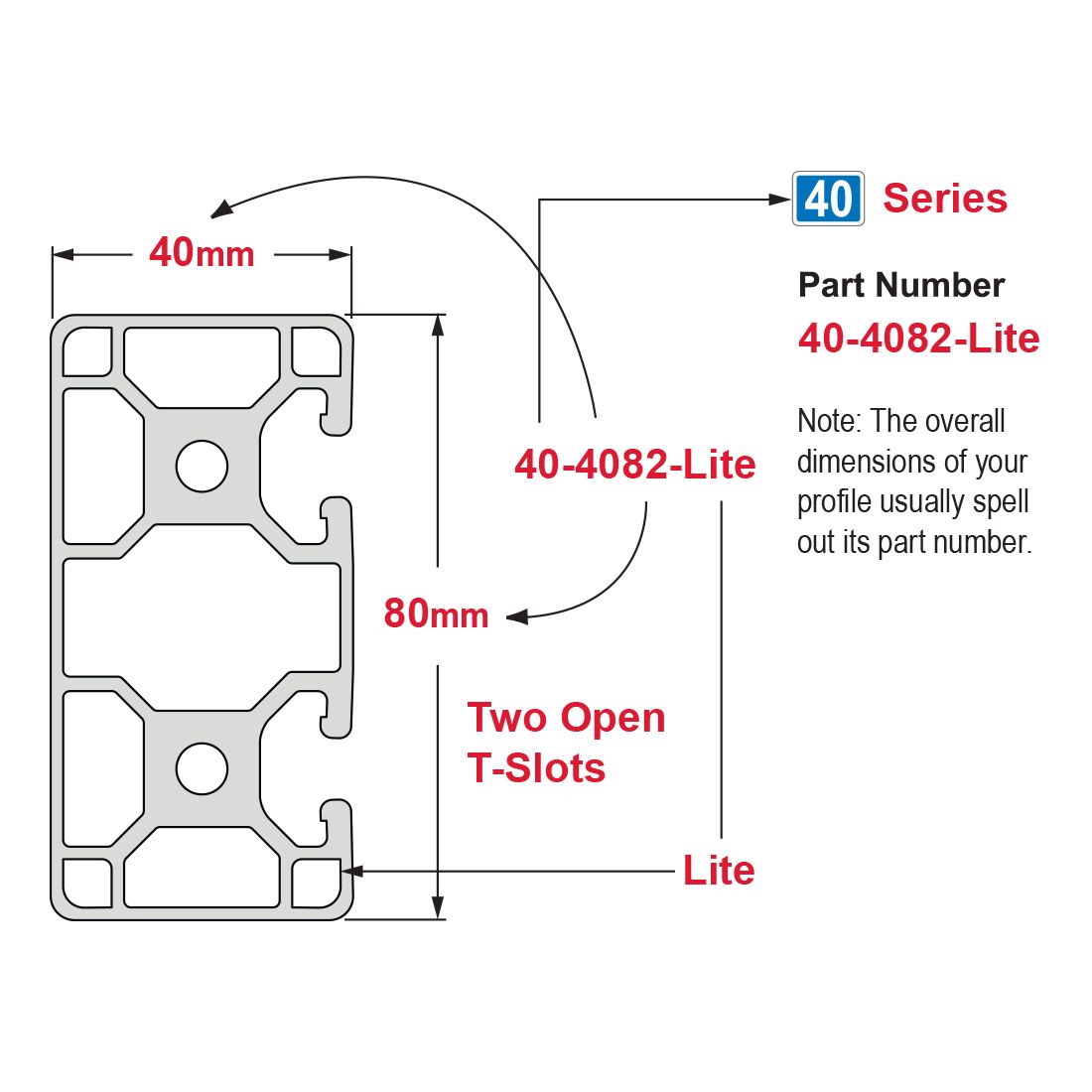

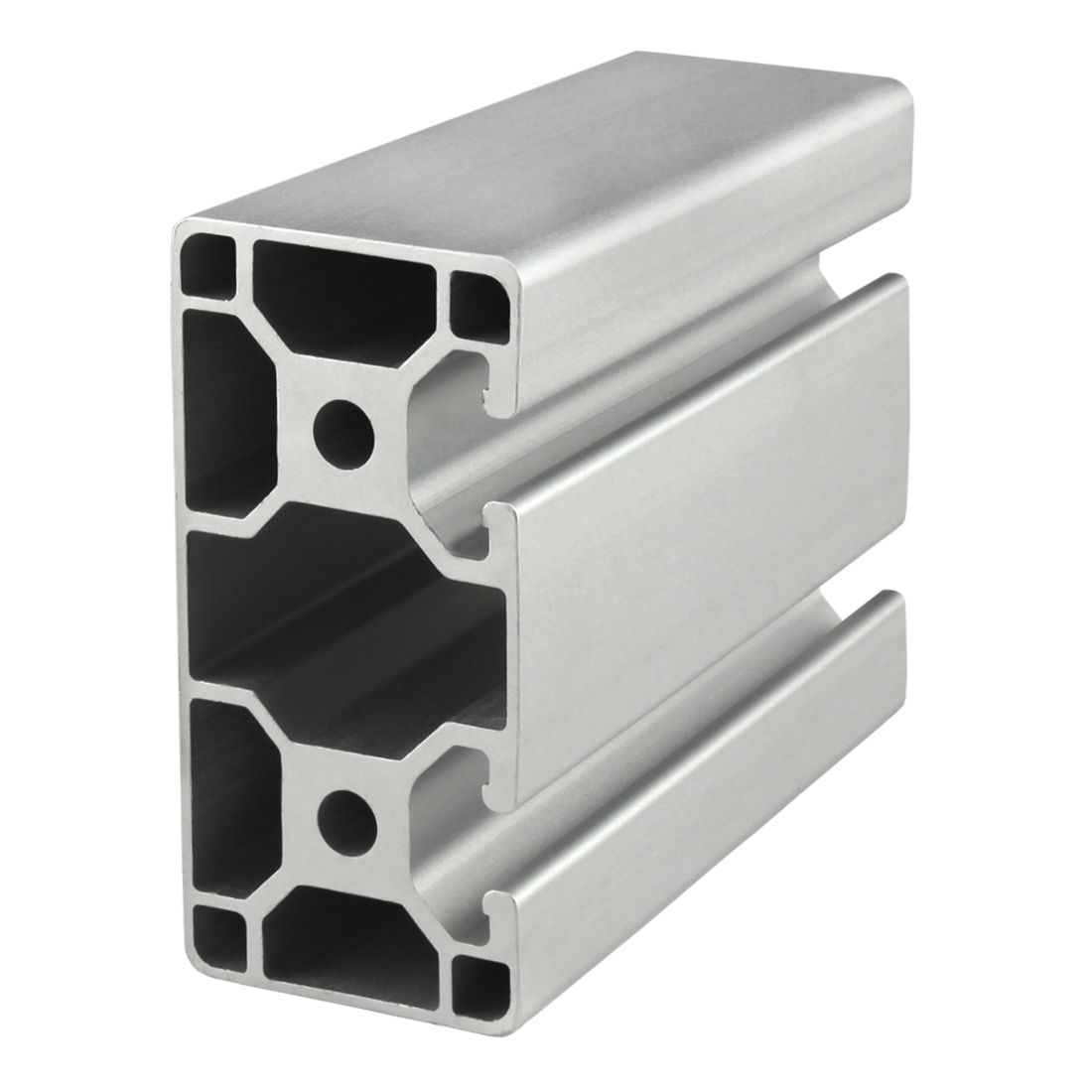

40mm X 80mm Lite T-Slotted Profile – Two Adjacent Open T-Slots

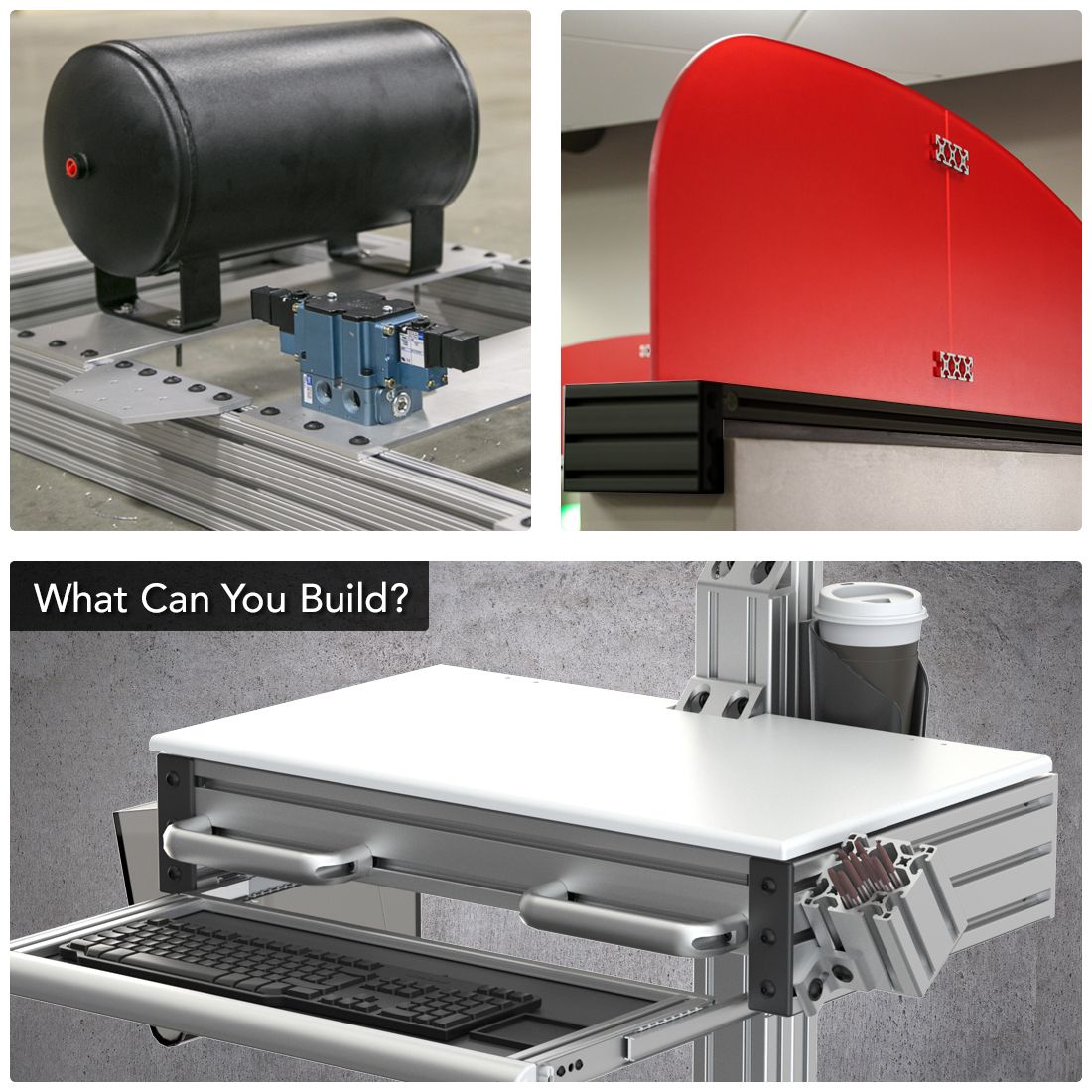

40-4082-Lite is a 40mm x 80mm lite metric 40 series rectangular T-slot profile with two adjacent open T-slots, two on one 80mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4082-Lite profile is compatible with 40 series fasteners. The three closed faces on this profile provide a clean, aesthetic look while the center cavity of the profile can be pressurized up to 1.034 N/mm2 (150 psi), lending itself to work spaces, machine guards, displays and panel mount racks.

Part No: 40-4082-Lite

$0.11

Description

Max Length (inches) 238.188976
Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

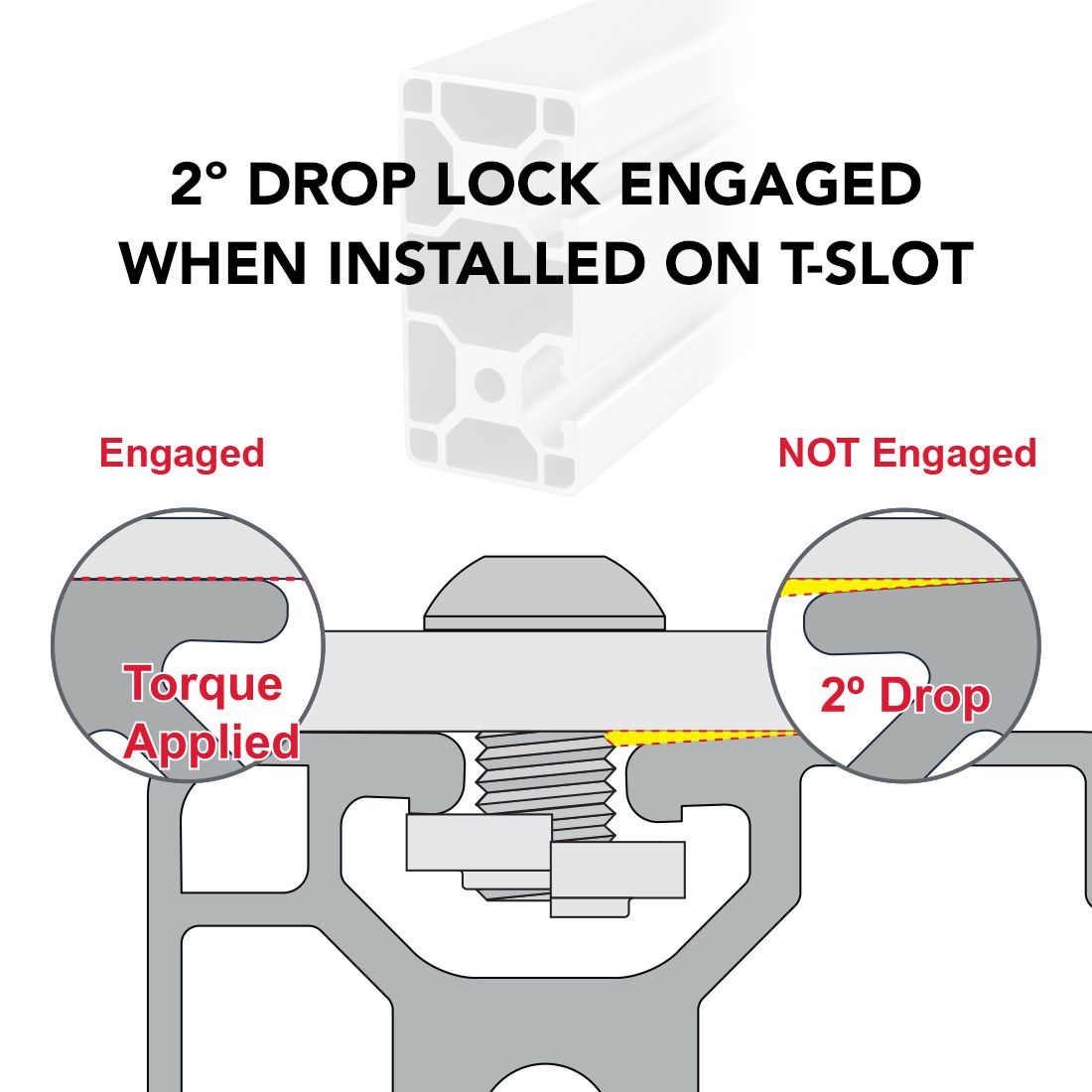

Drop Lock
Moment of Inertia – IX 66.4788 cm⁴
Moment of Inertia – IY 16.3044 cm⁴
Surface Area 10.982 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.1659 per inch
Weight 0.165900
80/20

Additional information

Brand

Reviews

There are no reviews yet.

Be the first to review “40mm X 80mm Lite T-Slotted Profile – Two Adjacent Open T-Slots”

Your email address will not be published. Required fields are marked *

No CAD files available for this product.
