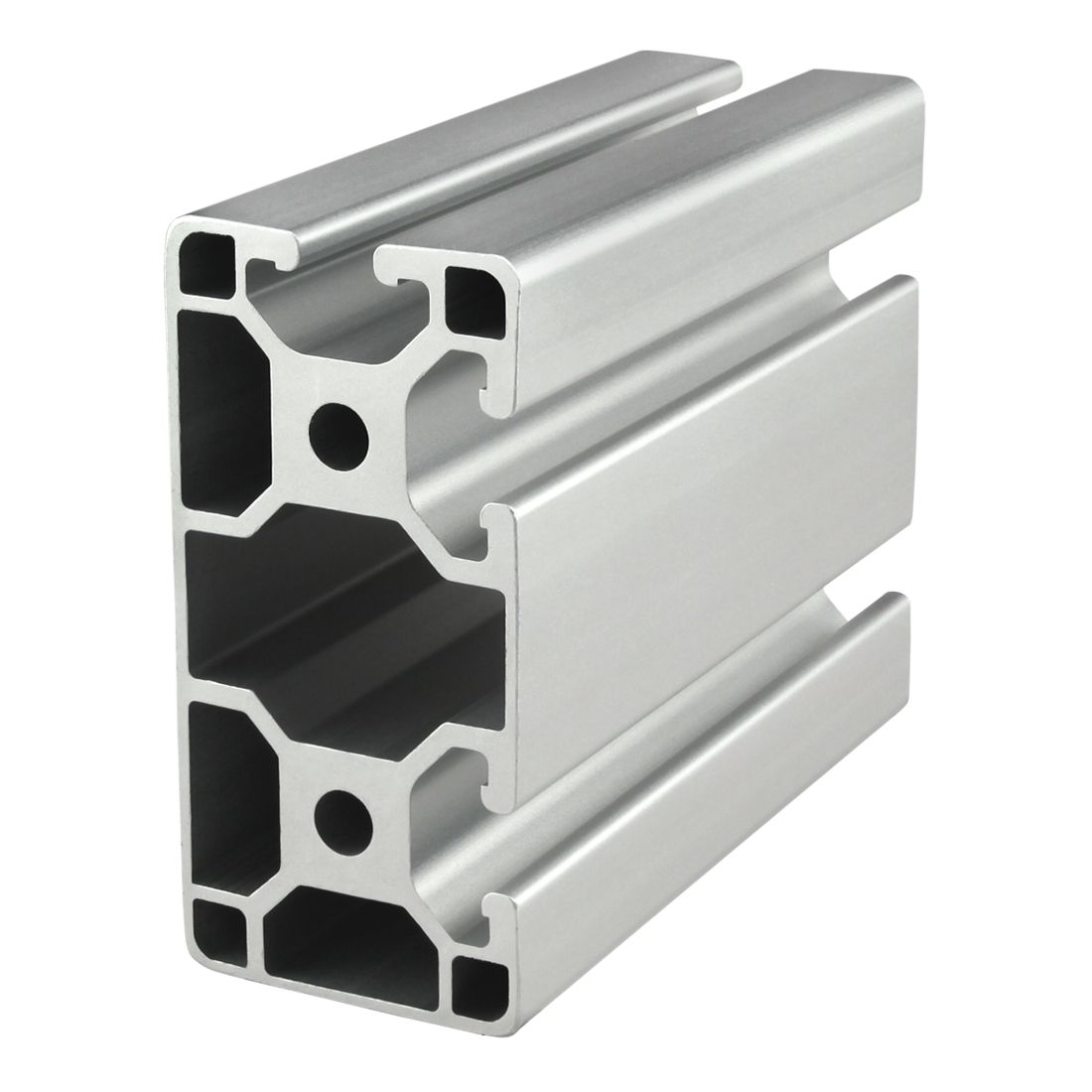

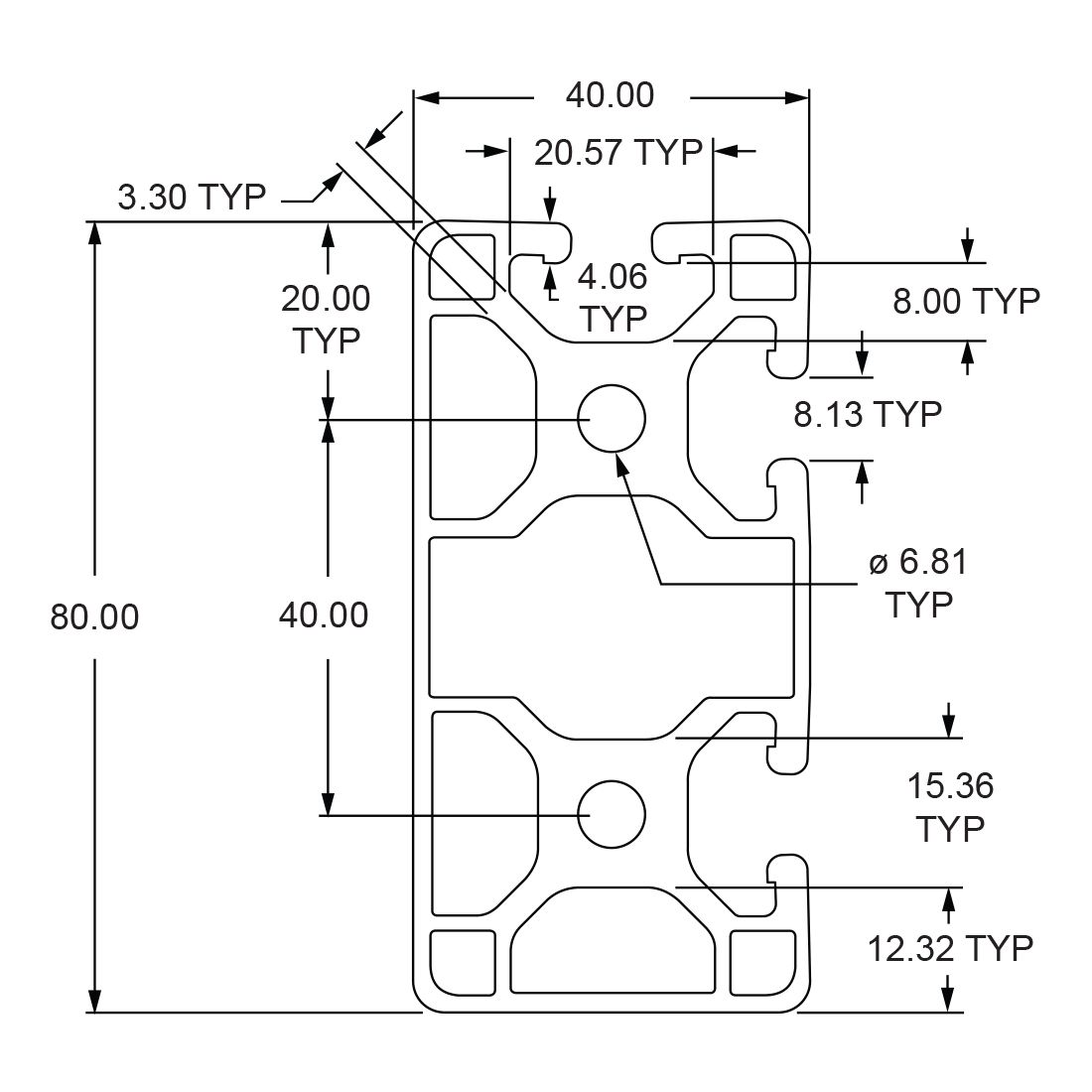

40mm X 80mm Lite T-Slotted Profile – Three Adjacent Open T-Slots

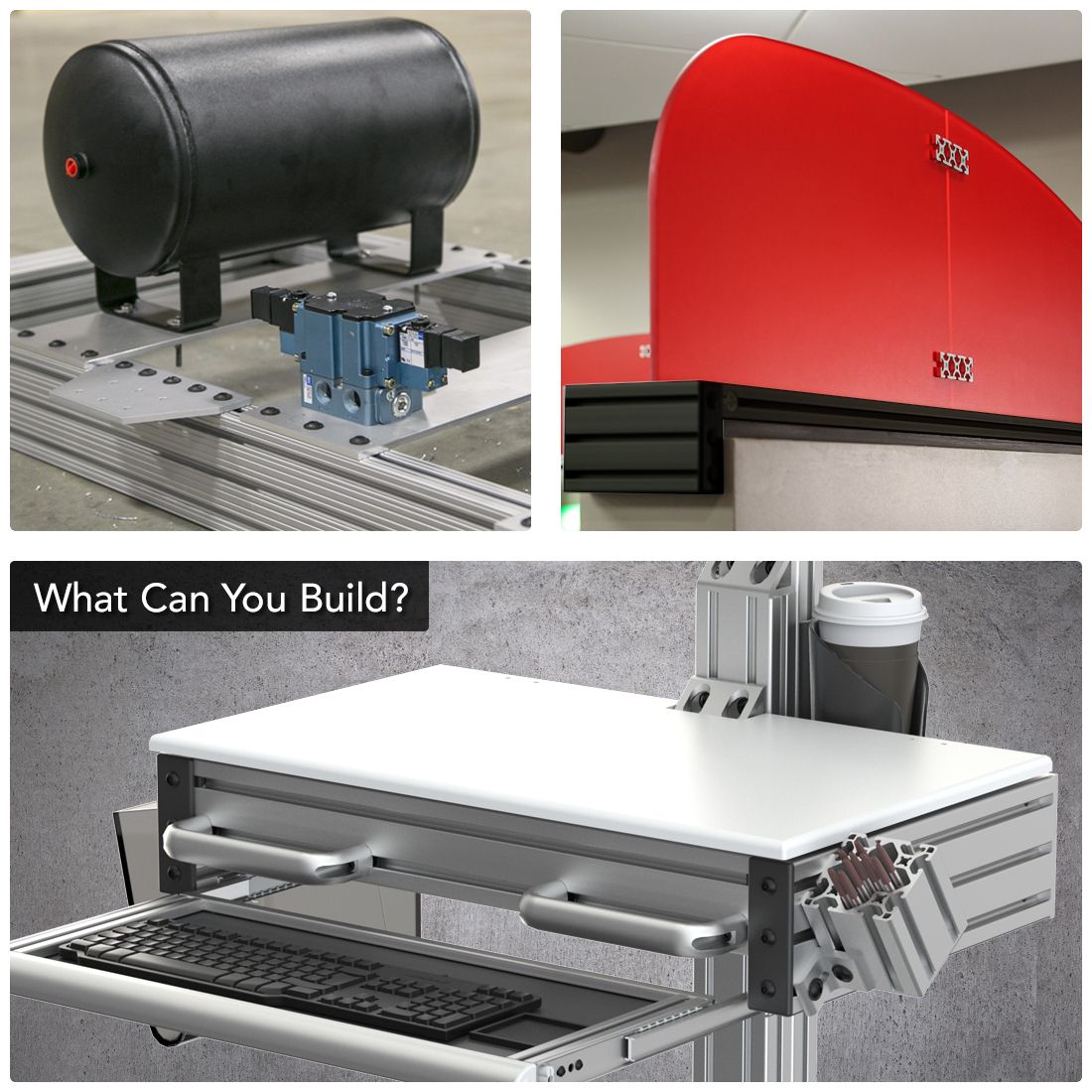

40-4083-Lite is a 40mm x 80mm lite metric 40 series rectangular T-slot profile with three adjacent open T-slots, two on one 80mm face and one on one 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4083-Lite profile is compatible with 40 series fasteners. The two closed faces on this profile provide a clean, aesthetic look while the center cavity of the profile can be pressurized up to 1.034 N/mm2 (150 psi), lending itself to work spaces, machine guards and displays.

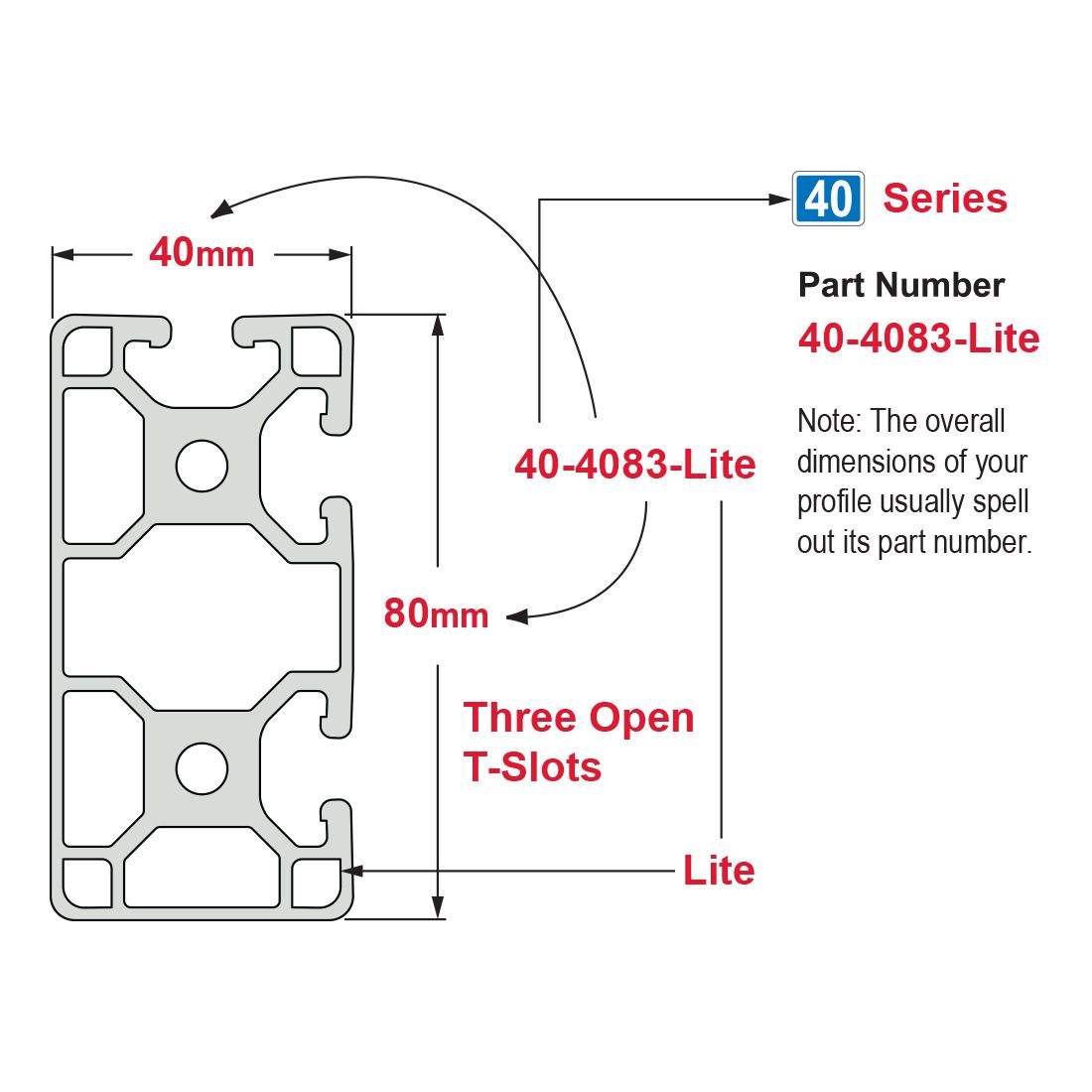

Part No: 40-4083-Lite

$0.11

Description

Max Length (inches) 238.188976
Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

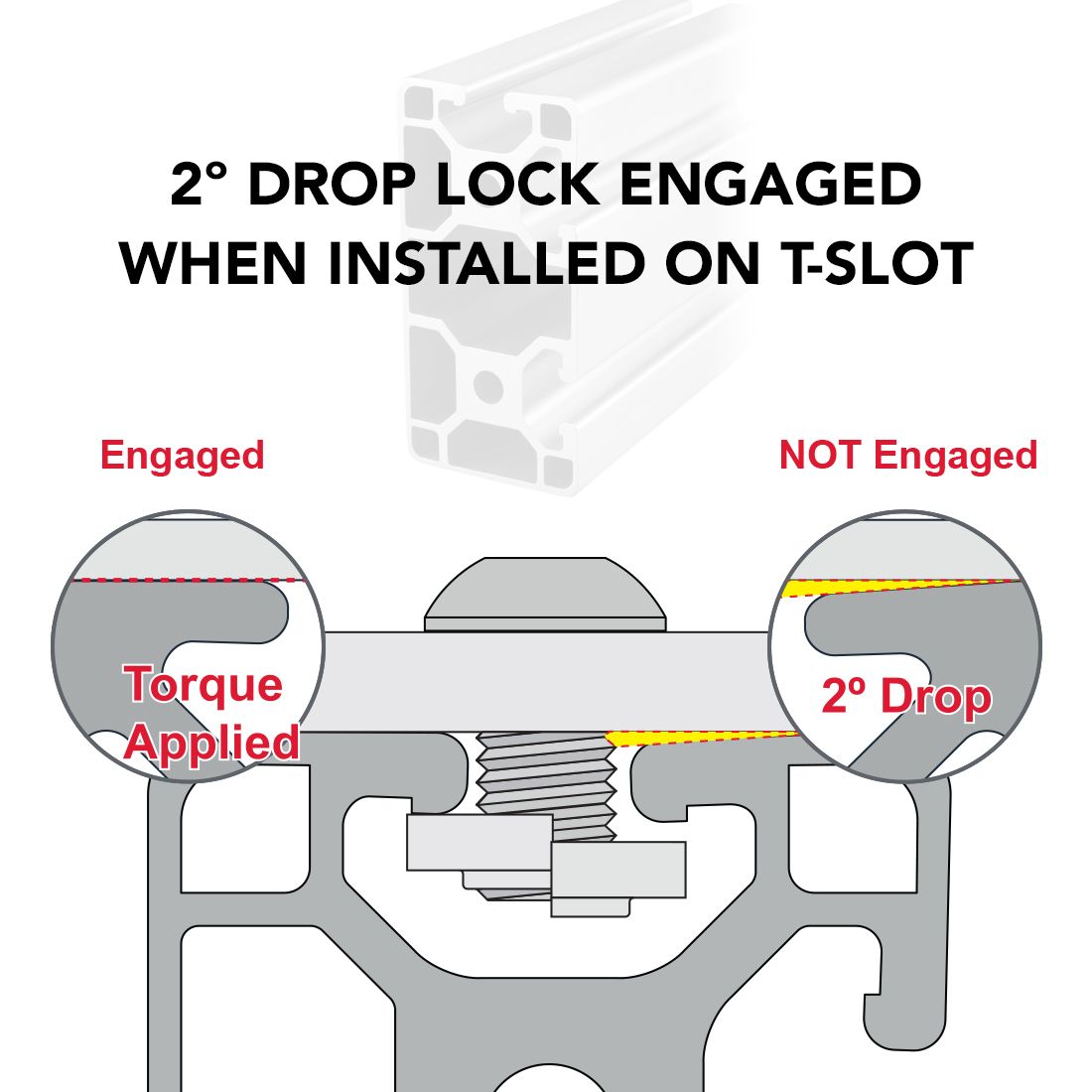

Drop Lock
Moment of Inertia – IX 68.1908 cm⁴
Moment of Inertia – IY 16.4684 cm⁴
Surface Area 11.074 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.1674 per inch
Weight 0.167400
