40mm X 80mm Lite T-Slotted Profile – Four Adjacent Open T-Slots

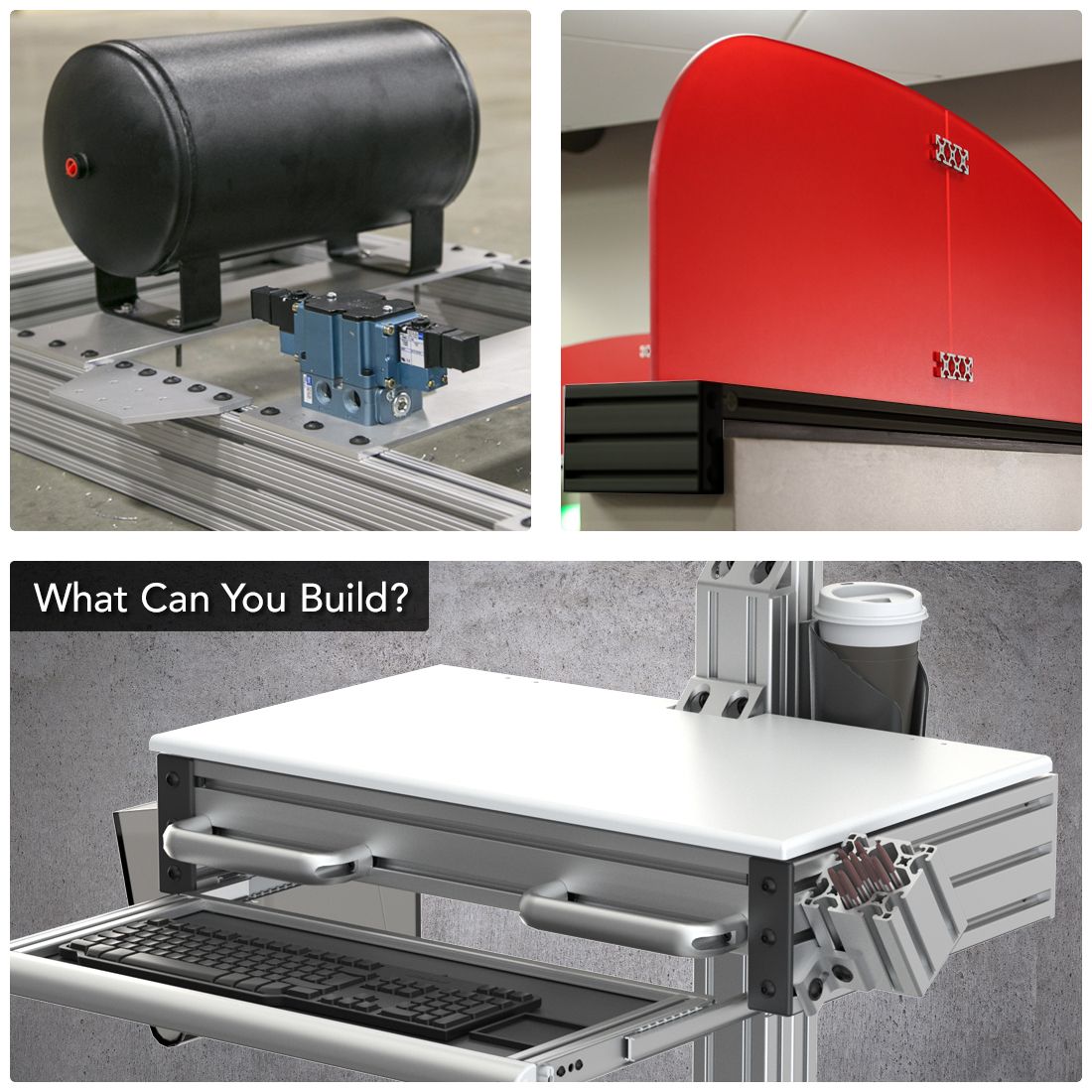

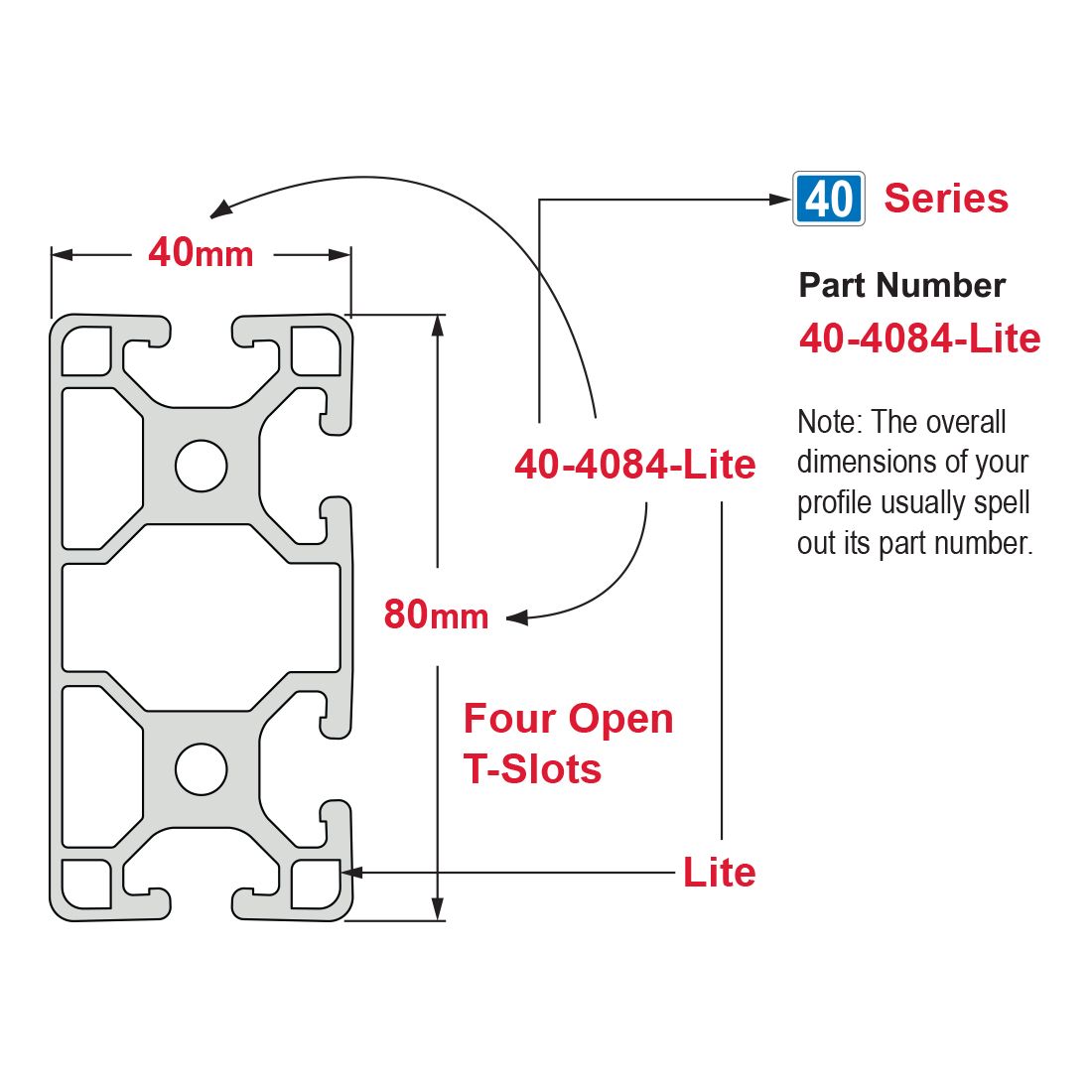

40-4084-Lite is a 40mm x 80mm lite metric 40 series rectangular T-slot profile with four adjacent open T-slots, two on one 80mm face and one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4084-Lite profile is compatible with 40 series fasteners. The closed face on this profile provides a clean, aesthetic look while the center cavity of the profile can be pressurized up to 1.034 N/mm2 (150 psi), lending itself to work spaces, machine guards and displays.
Description
Max Length (inches) |
238.188976 |
Series |
40 Series |
Material |
Aluminum |
Grade |
6063-T6 |
Finish |
Anodize |
Color |
Clear |

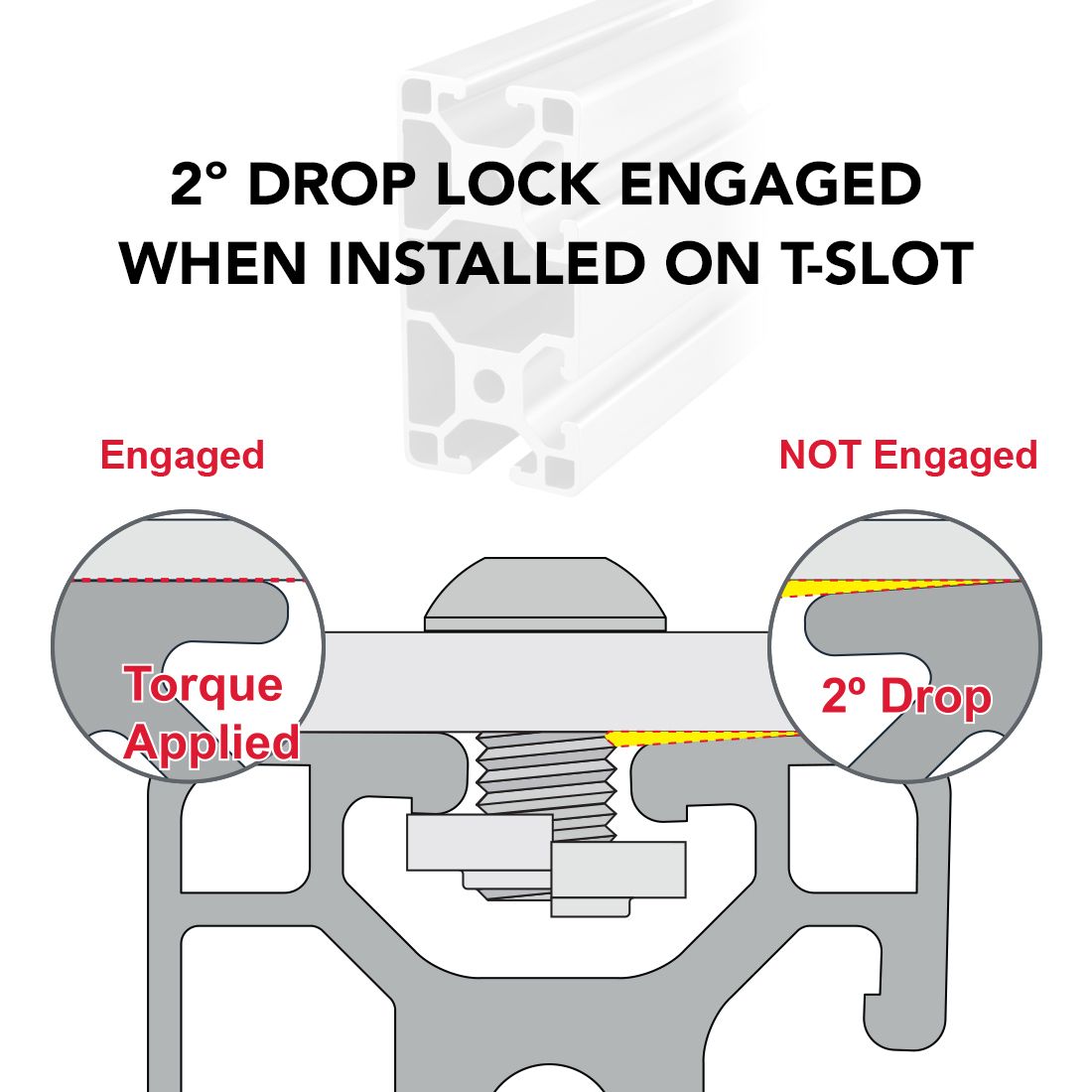

Drop Lock |
2° |
Moment of Inertia – IX |
69.7265 cm⁴ |
Moment of Inertia – IY |
16.6107 cm⁴ |
Surface Area |
11.174 Sq cm |
Yield Strength |
172.37 N / Sq mm |
Modulus of Elasticity |
68.947.6 N / Sq mm |
Weight lbs |
0.1688 per inch |
Weight |
0.168800 |
