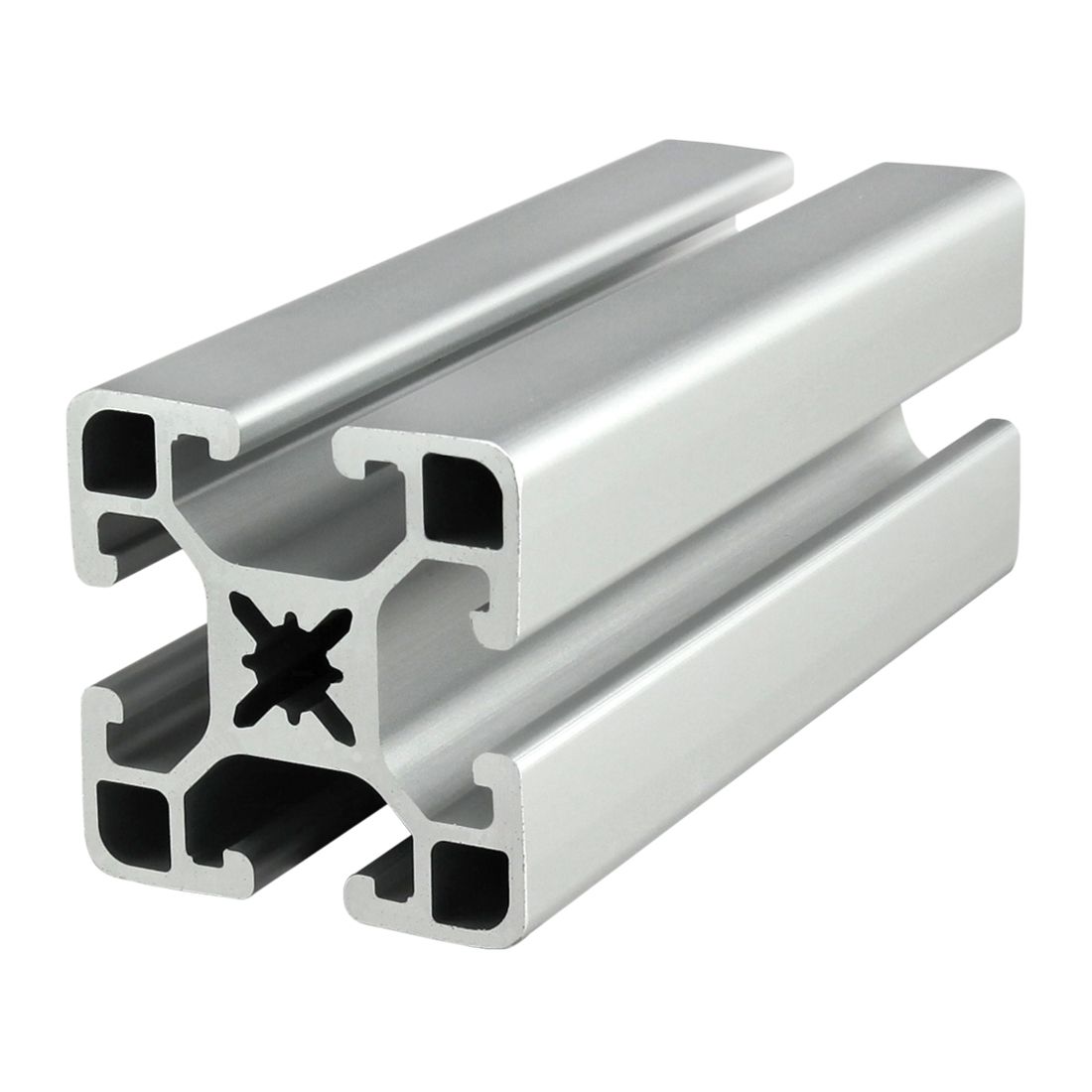

40mm X 40mm Ultra-Lite T-Slotted Profile – Four Open T-Slots

40-4040-UL is a 40mm x 40mm ultra-lite metric 40 series square T-slot profile with four open T-slots, one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4040-UL profile is compatible with all 40 series fasteners. This profile lends itself to clean room applications, guards, enclosures, or work stations. The four open T-slots enable access from any direction and are useful for mounting accessories.

Part No: 40-4040-UL

$0.05

Description

Max Length (inches) 238.188976
Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear

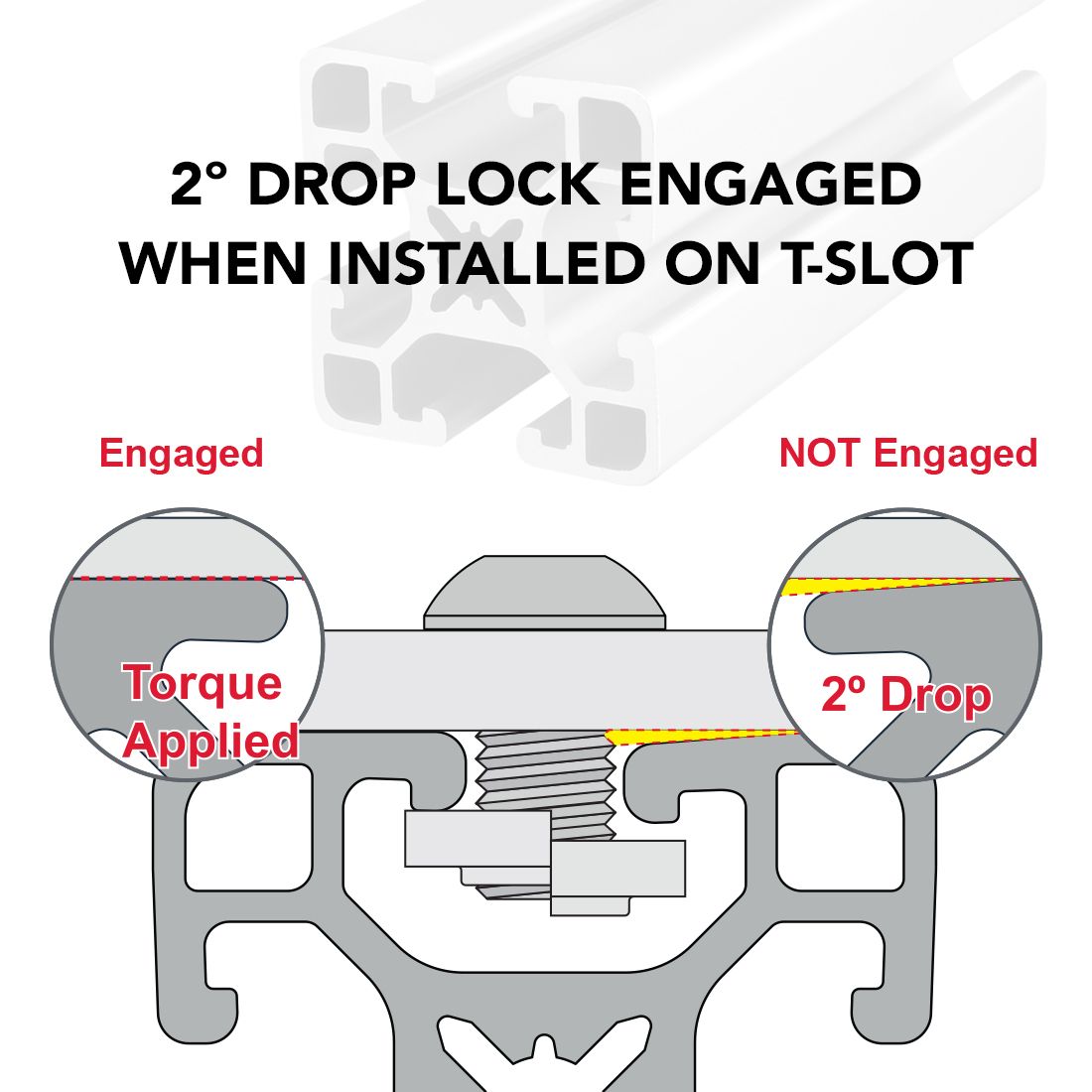

Drop Lock
Moment of Inertia – IX 8.7059 cm⁴
Moment of Inertia – IY 8.7059 cm⁴
Surface Area 5.750 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.0868 per inch
Weight 0.086800
80/20

Additional information

Brand

Reviews

There are no reviews yet.

Be the first to review “40mm X 40mm Ultra-Lite T-Slotted Profile – Four Open T-Slots”

Your email address will not be published. Required fields are marked *

No CAD files available for this product.
