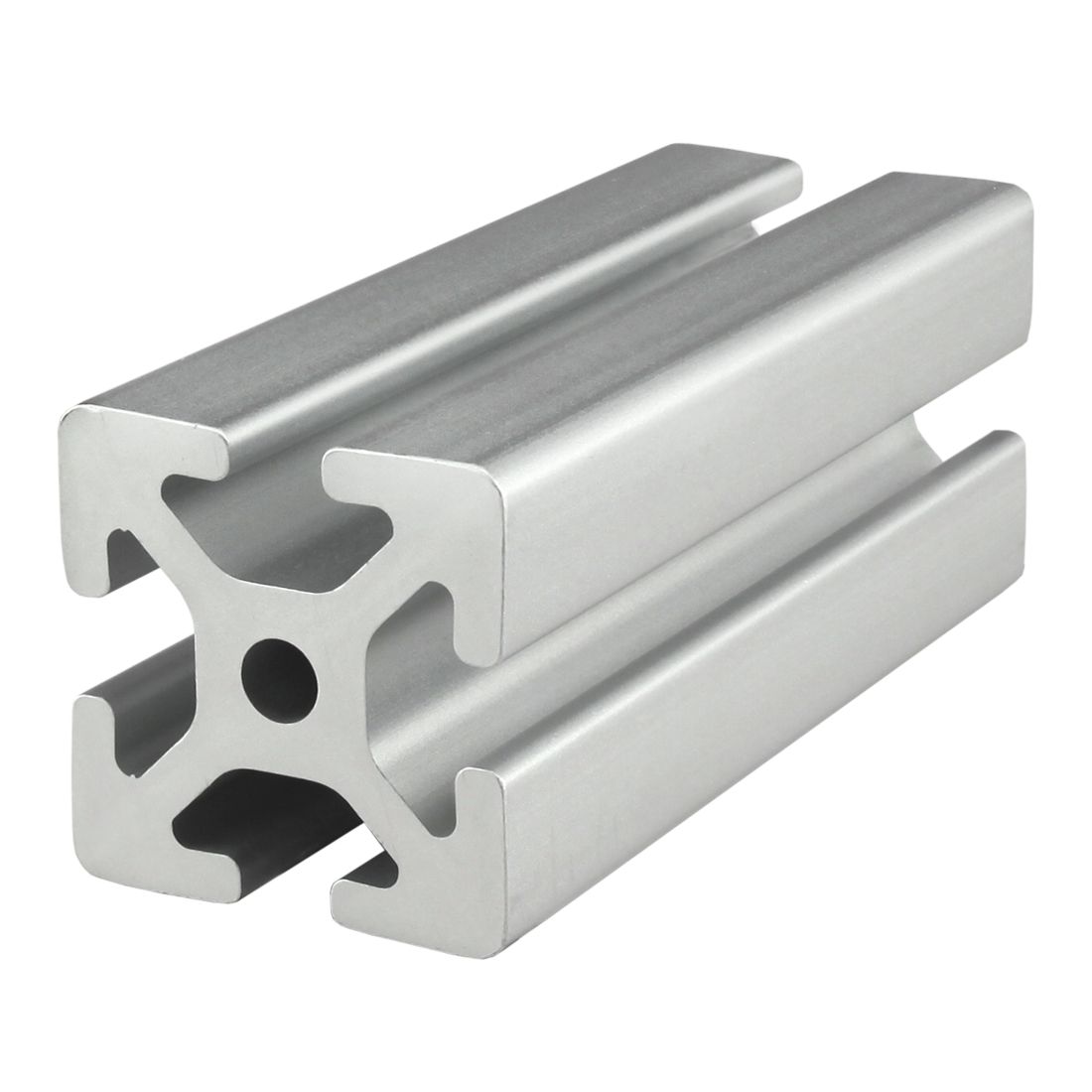

40mm X 40mm T-Slotted Profile – Four Open T-Slots

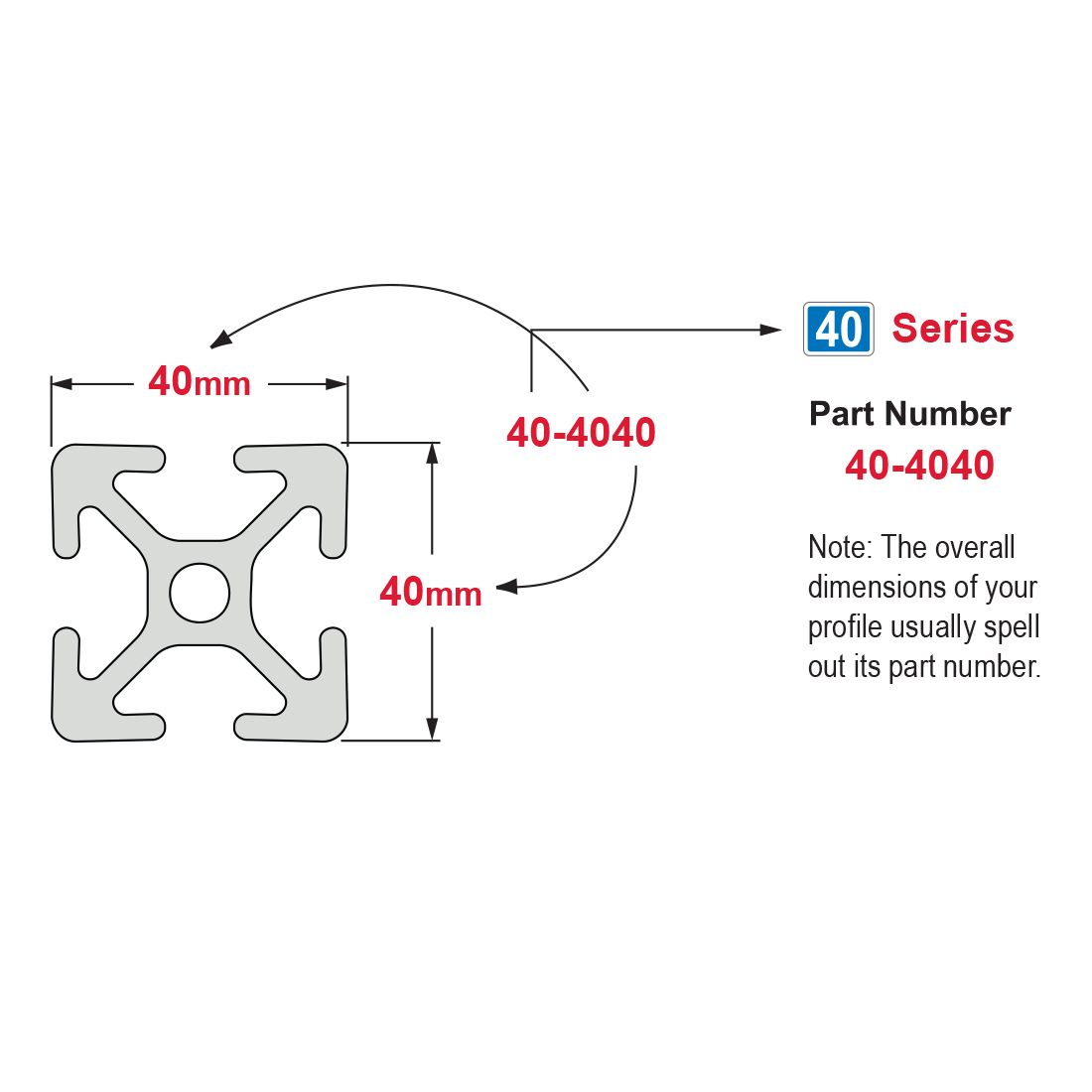

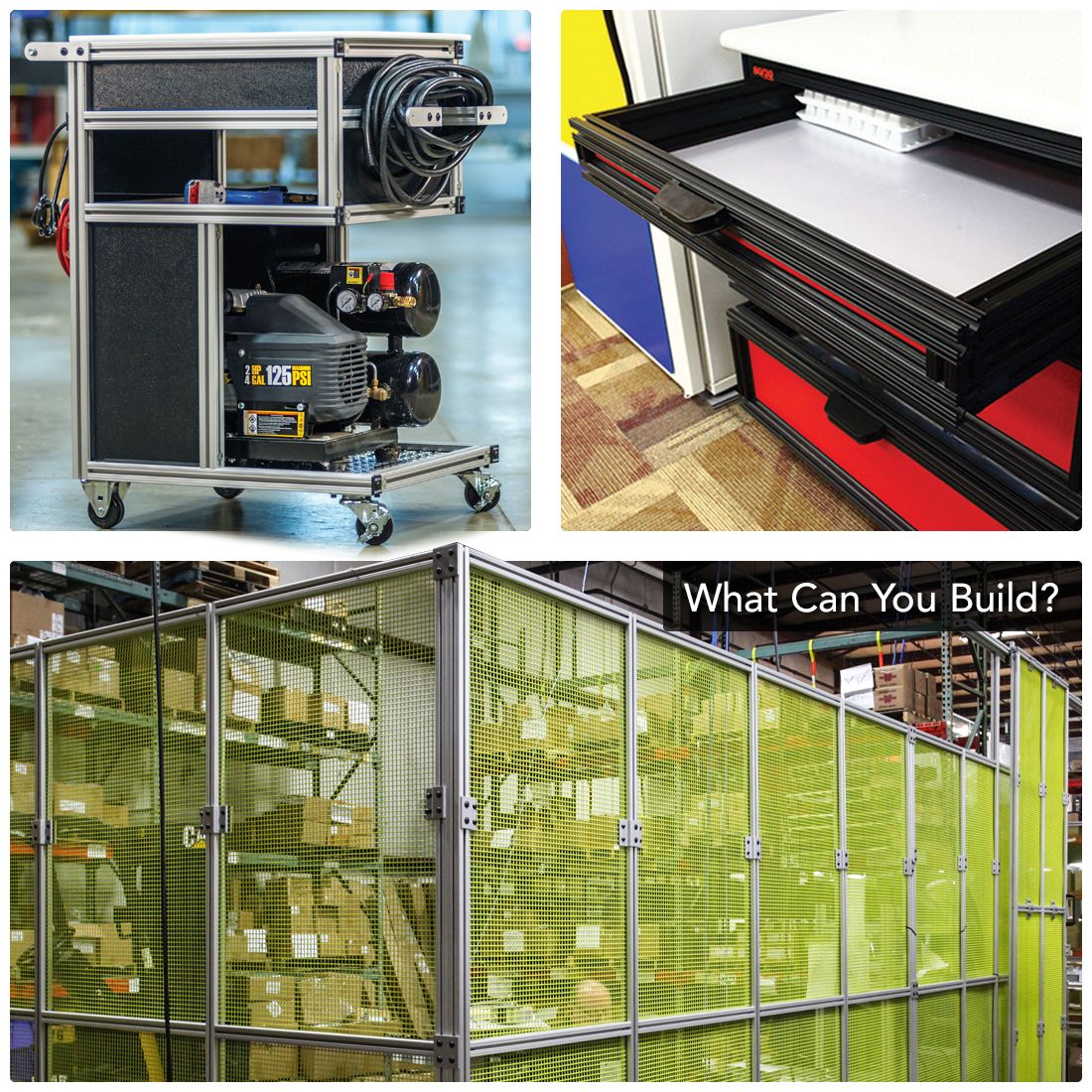

40-4040 is a 40mm x 40mm metric 40 series square T-slot profile with four open T-slots, one on each 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4040 profile is compatible with all 40 series fasteners. This profile is the most heavy-duty in the 40-4040 profile family and lends itself to clean room applications, guards, enclosures, or workstations. The four open T-slots enable access from any direction and are useful for mounting accessories.
Description
Max Length (inches) |
238.188976 |
Series |
40 Series |
Material |
Aluminum |
Grade |
6063-T6 |
Finish |
Anodize |
Color |
Clear |

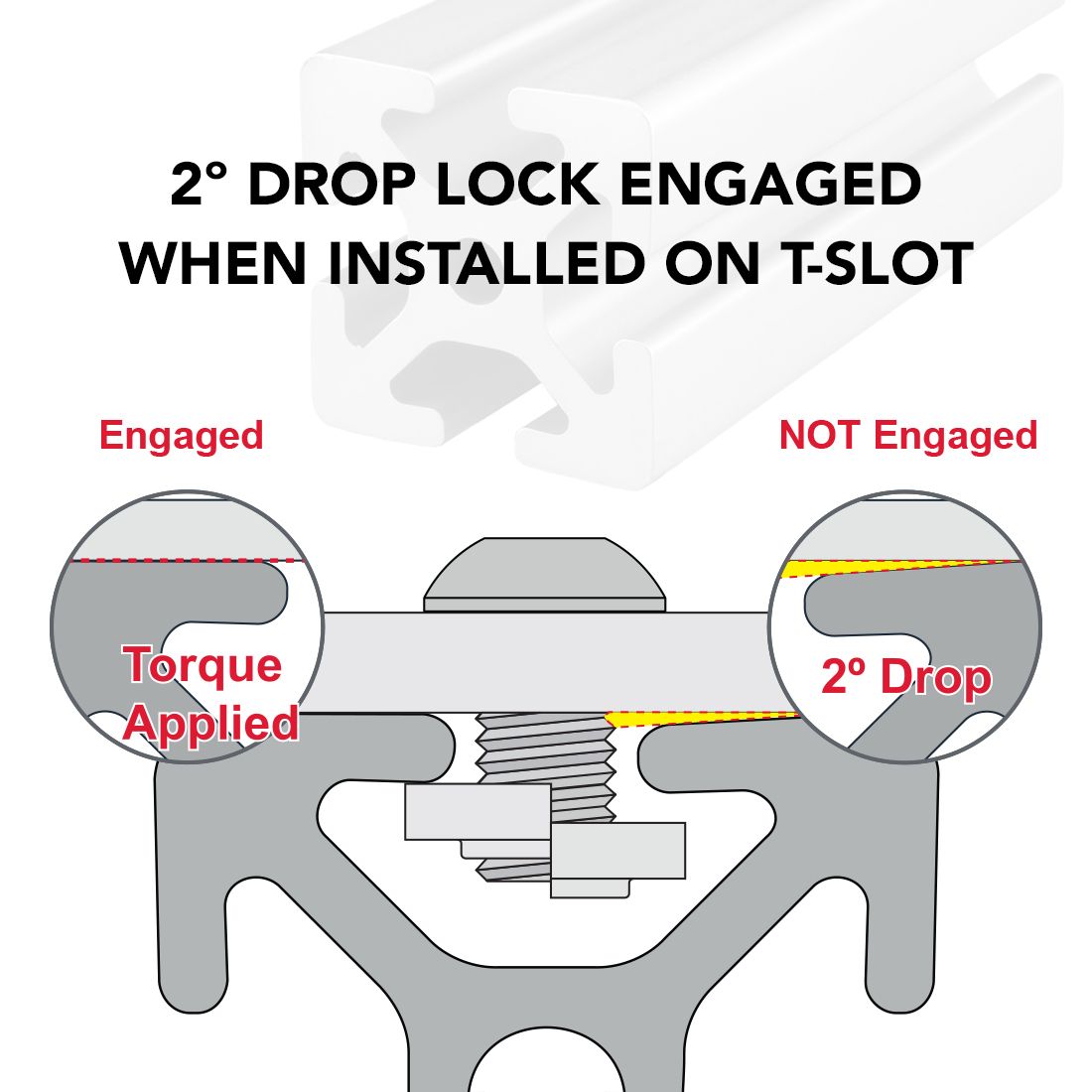

Drop Lock |
2° |
Moment of Inertia – IX |
13.787 cm⁴ |
Moment of Inertia – IY |
13.787 cm⁴ |
Surface Area |
8.742 Sq cm |
Yield Strength |
172.37 N / Sq mm |
Modulus of Elasticity |
68.947.6 N / Sq mm |
Weight lbs |
0.1321 per inch |
Weight |
0.132100 |
