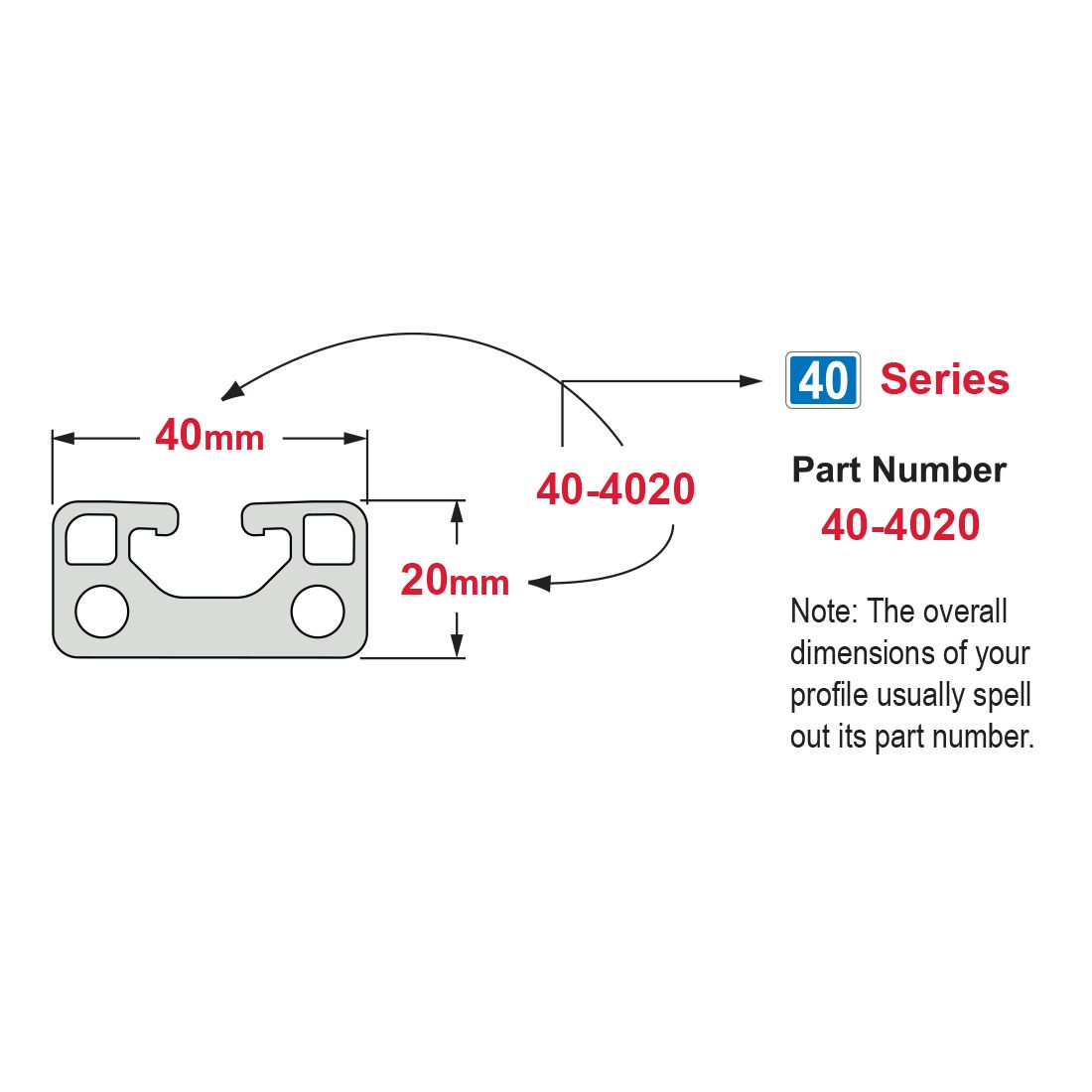

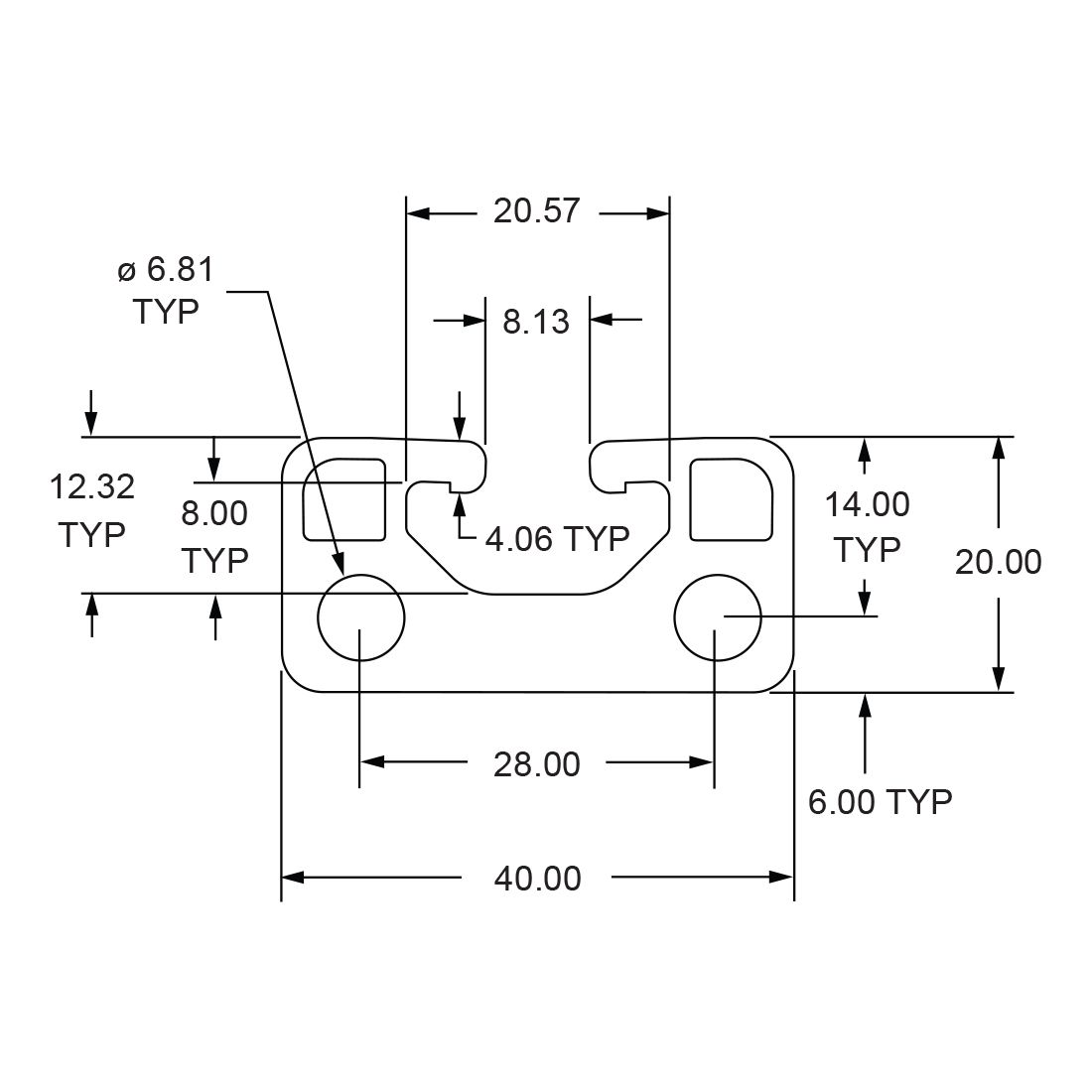

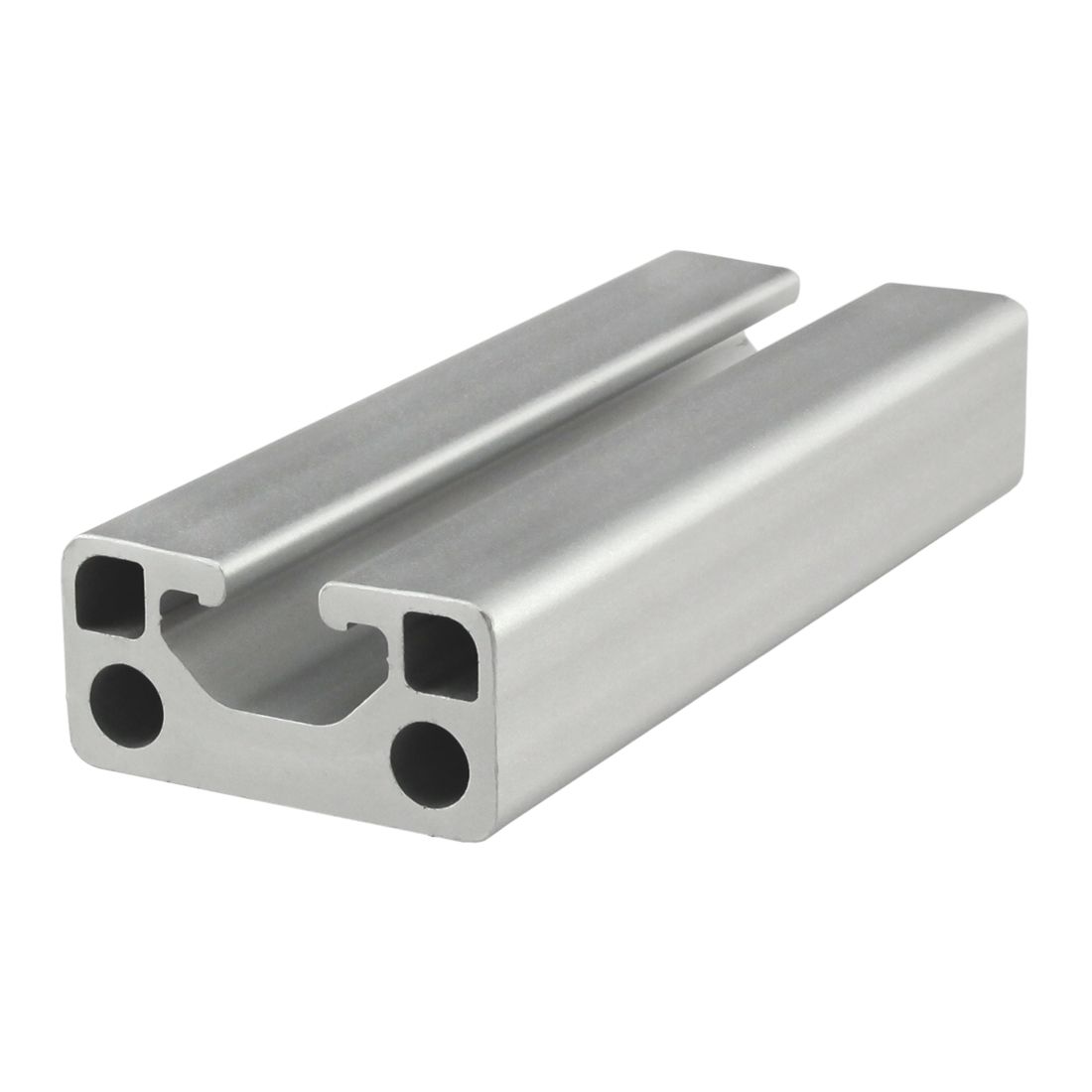

40-4020 is a 40mm x 20mm metric 40 series rectangular T-slot profile with one open T-slot on one 40mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4020 profile is compatible with 40 series fasteners. It is a thinner profile that connects easily to flat surfaces and works well as a supporting structure or spacer for mounting accessories such as handles, door tracks, rails, valves or sensors.
Part No: 40-4020
$0.04
Note: Price Per MM $0.04
| Max Length (inches) | 118.110236 |
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |

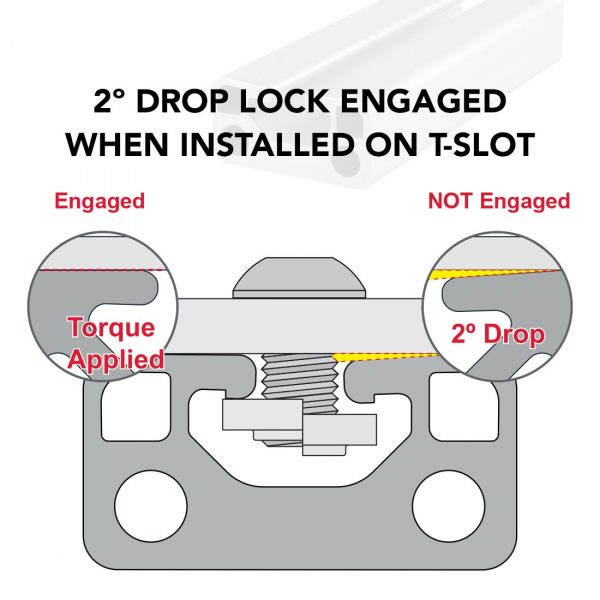

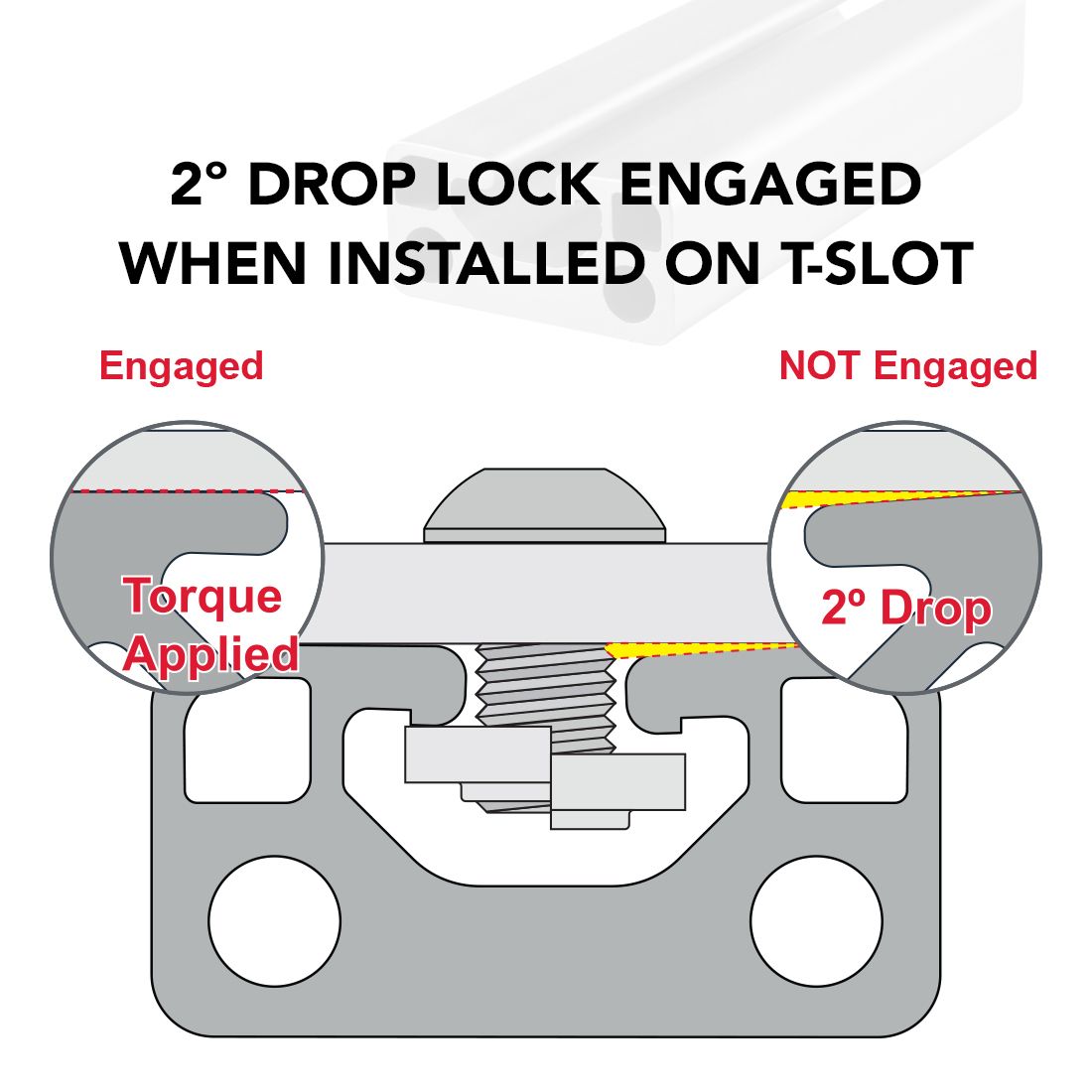

| Drop Lock | 2° |
| Moment of Inertia – IX | 1.8260 cm⁴ |
| Moment of Inertia – IY | 6.6587 cm⁴ |
| Surface Area | 4.550 Sq cm |
| Yield Strength | 172.37 N / Sq mm |
| Modulus of Elasticity | 68.947.6 N / Sq mm |
| Weight lbs | 0.0688 per inch |
| Weight | 0.068800 |
| Brand |
|---|
