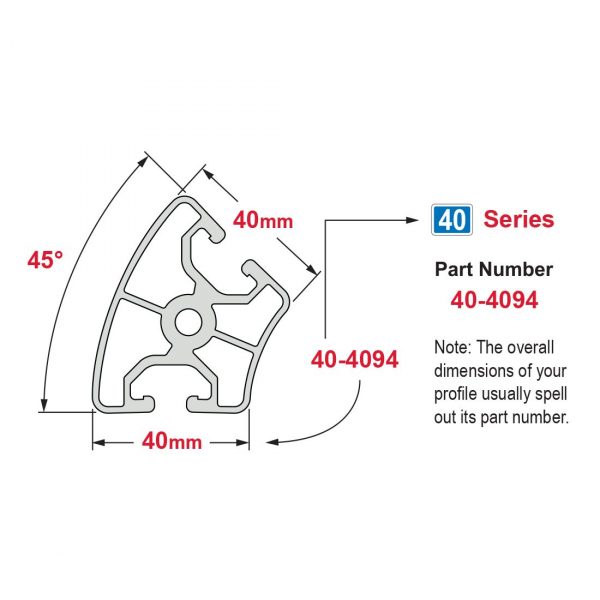

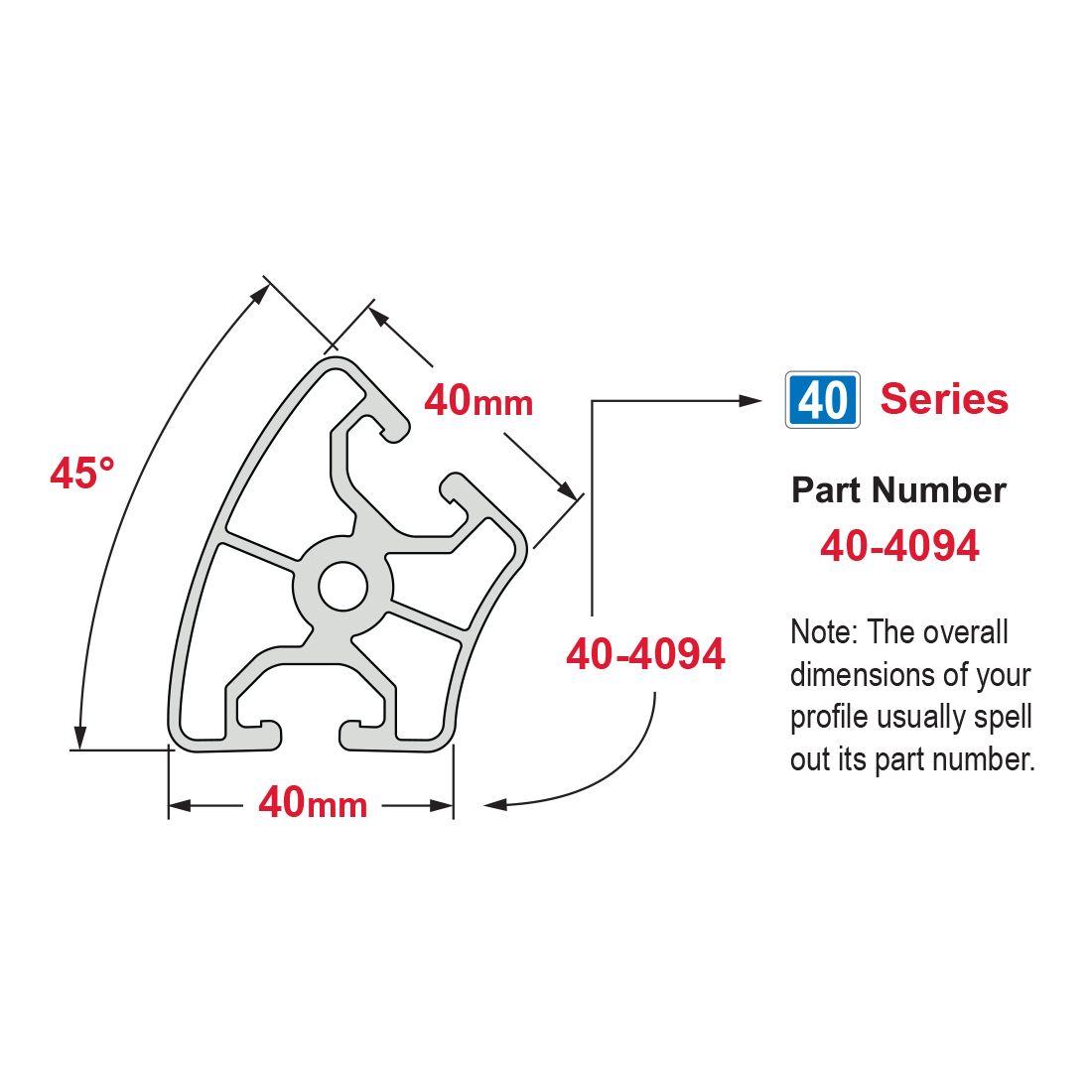

40mm T-Slotted Profile 45° Outside Radius – Two Opposite Open T-Slots

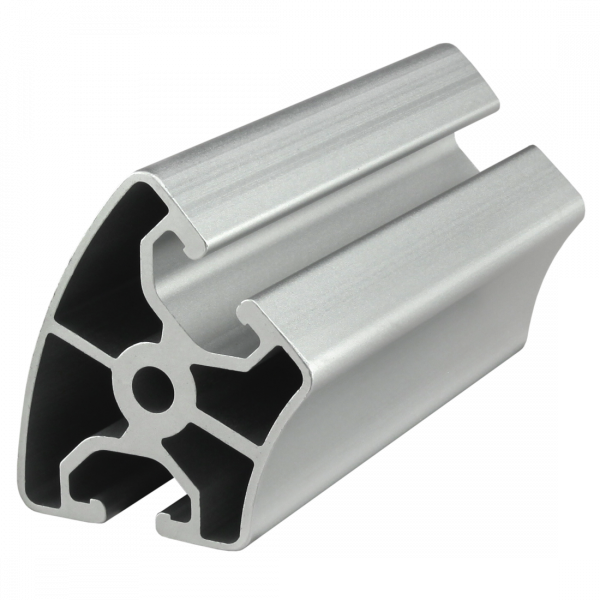

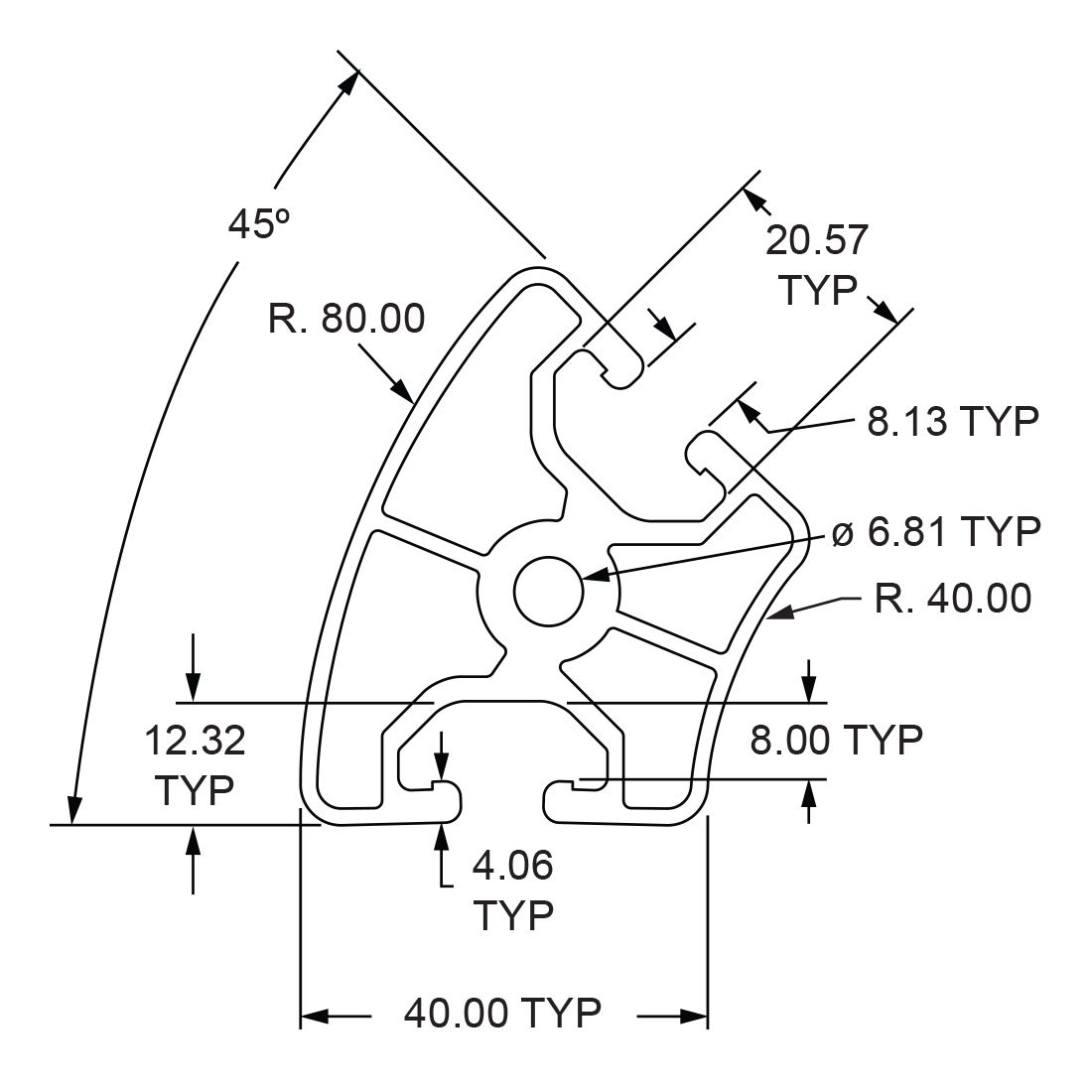

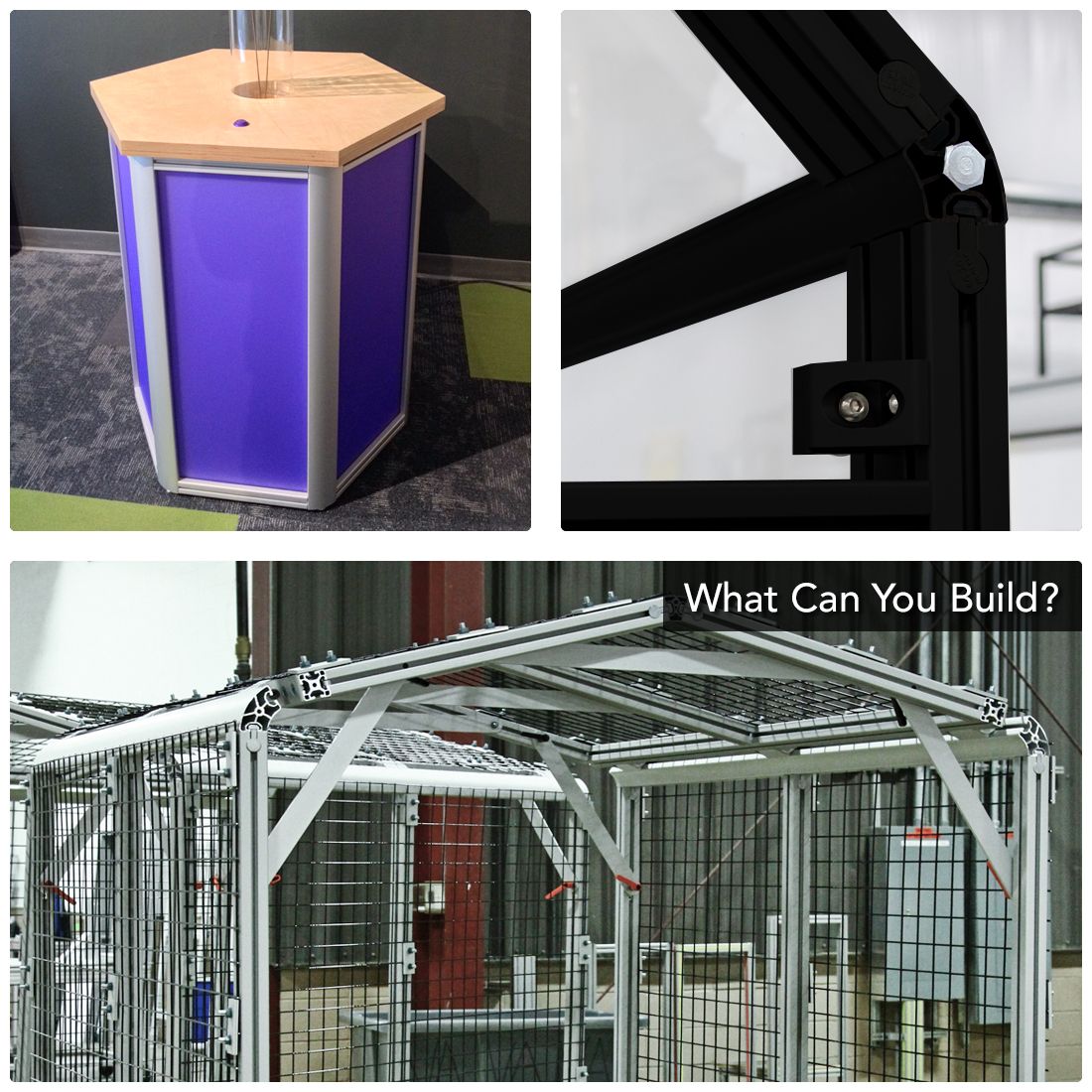

40-4094 is a 40mm metric 40 series T-slot profile with a 45 degree radius and two opposite open T-slots, one on each of the 40mm profile faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 40-4094 profile is compatible with 40 series fasteners.This profile lends itself to workstations and displays because panels or other support structures can be easily placed in the T-slots allowing a continuous surface and aesthetic appearance.
Description
Max Length (inches) |
118.110236 |
Series |
40 Series |
Material |
Aluminum |
Grade |
6063-T6 |
Finish |
Anodize |
Color |
Clear |

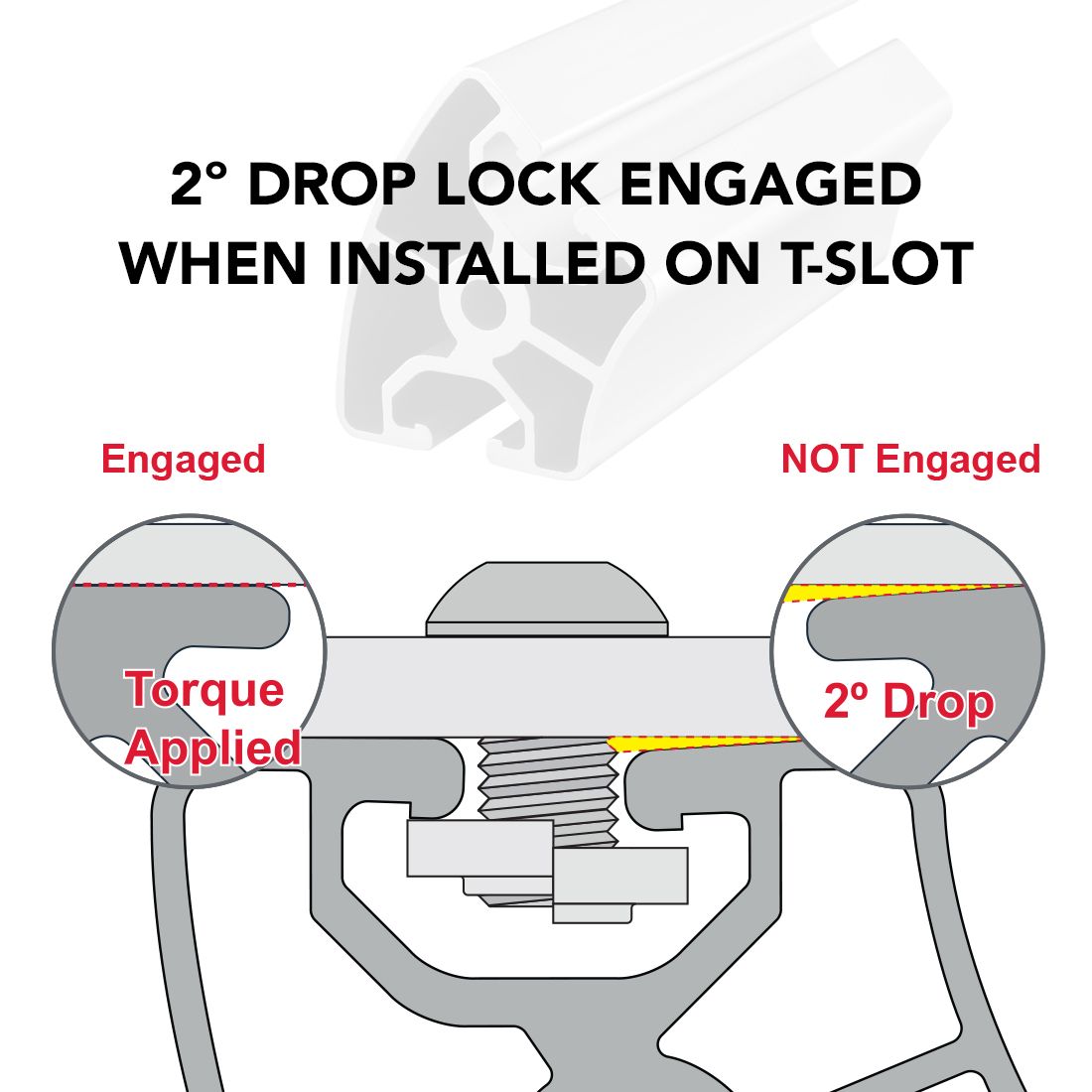

Drop Lock |
2° |
Moment of Inertia – IX |
13.548 cm⁴ |
Moment of Inertia – IY |
8.327 cm⁴ |
Surface Area |
6.309 Sq cm |
Yield Strength |
172.37 N / Sq mm |
Modulus of Elasticity |
68.947.6 N / Sq mm |
Weight lbs |
0.0953 per inch |
Weight |
0.095300 |
