Description
| Series | 40 Series |
| Type | Standard T-Nut |
| Material | Steel |
| Grade | 1215 |
| Finish | Zinc |
| Color | Bright |
| A | 17.45mm |
| B | 7.14mm |
| C | 15.88mm |
| D (Thread) | M8 X 1.25 |
| E | 6.35mm |
| Weight | 0.022000 |
| Max Length (inches) | 0.750000 |

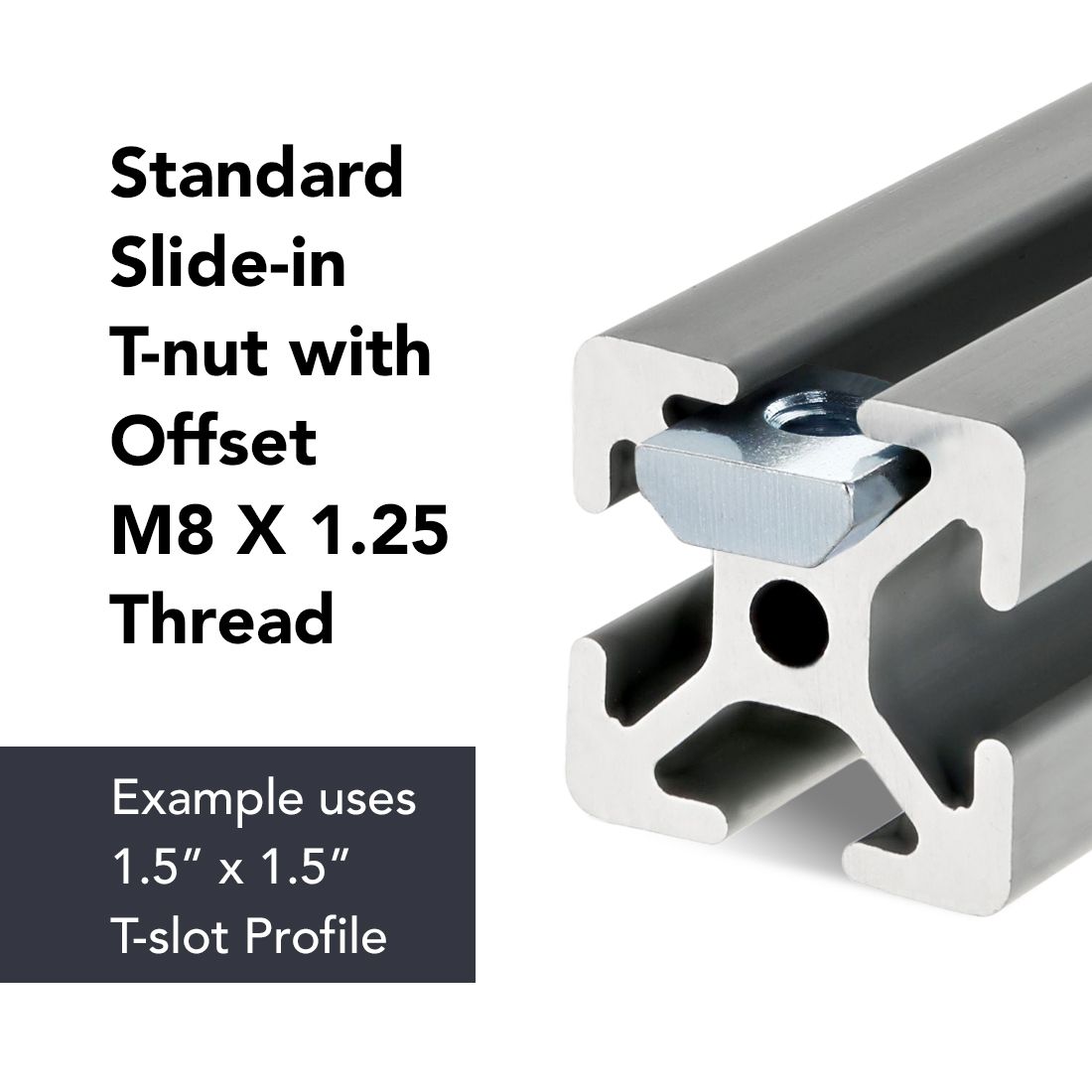

40 Series M8 Standard Slide-in T-Nut
The standard slide-in T-nut is a fastening option that loads from the profile ends. It is a strong, durable connection that is available with options in size, thread, and finish.
Part No: 40-1984
$2.44
Additional information
| Brand |
|---|
No CAD files available for this product.
