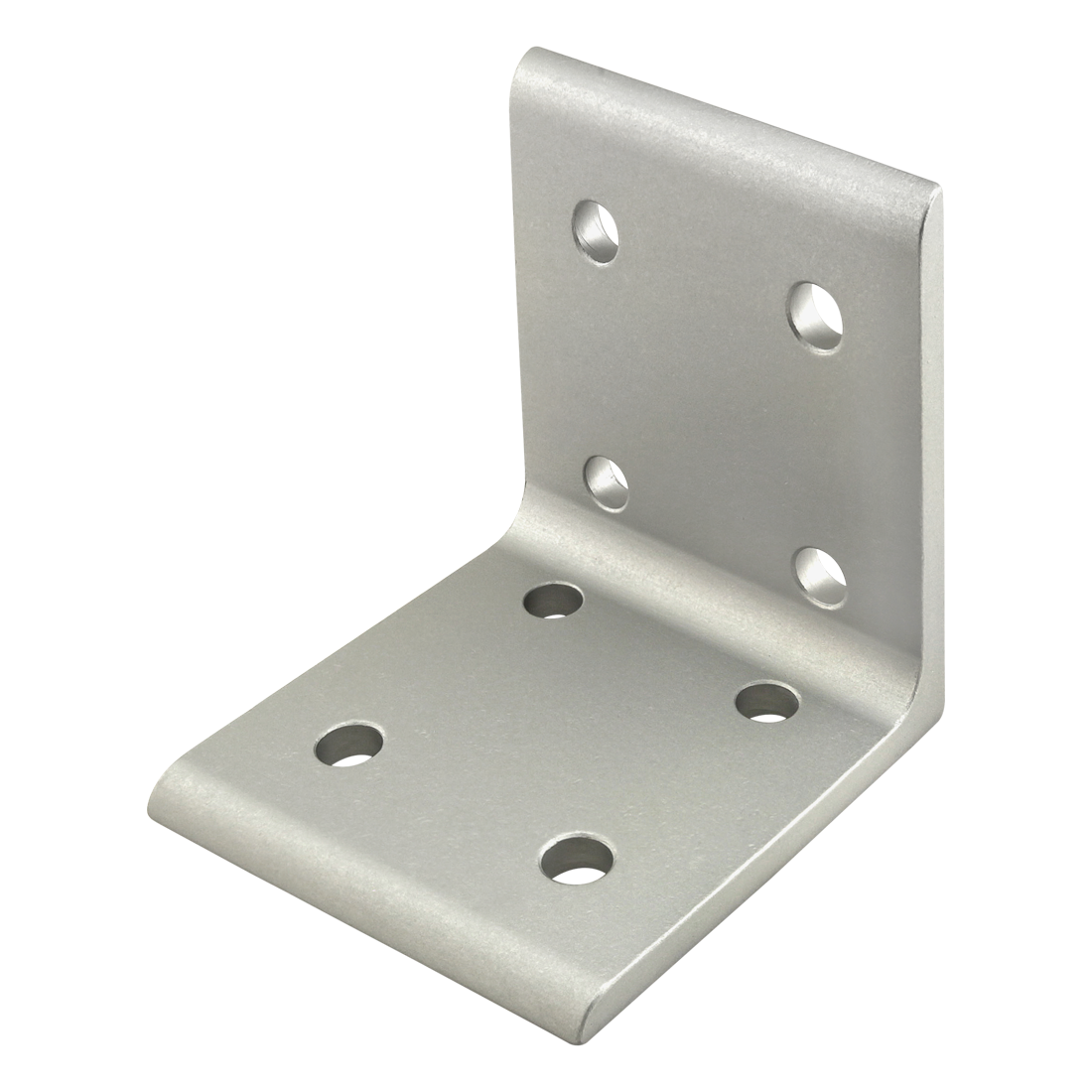

40 Series 8 Hole – Inside Corner Bracket

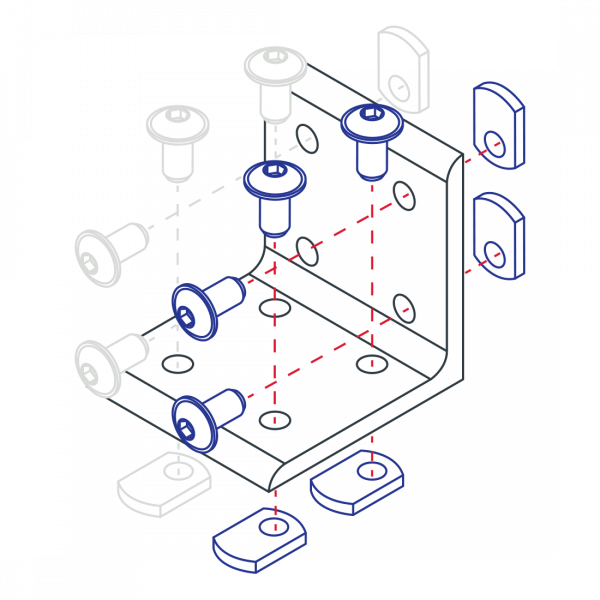

The 8 hole – inside corner bracket is an external fastening method that creates a 90 degree connection and has four holes on each side of the bracket, comprised of two rows and two columns. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The 8 hole – inside corner bracket engages the 2-degree drop-lock feature when the assembly bolts are tightened to the required torque. It is a fastening method that can be repositioned and reused. The suggested mounting hardware can be found on the “Suggested Hardware” tab.

Part No: 40-4304

$19.82

SKU: 40-4304 Categories: , , ,

Description

Series 40 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
A 80.00mm
B 80.00mm
C 6.00mm
D 20.00mm
E 18.00mm
F 40.00mm
G 76.00mm
H 8.30mm
Weight 0.394000
