Description
| Series | 40 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 120.00mm |
| B | 120.00mm |
| C | 40.00mm |
| D | 20.00mm |
| E | 8.33mm |
| F | 6.00mm |
| G | 38.00mm |
| H | 39.00mm |
| J | 4.76mm |
| Weight | 0.267000 |

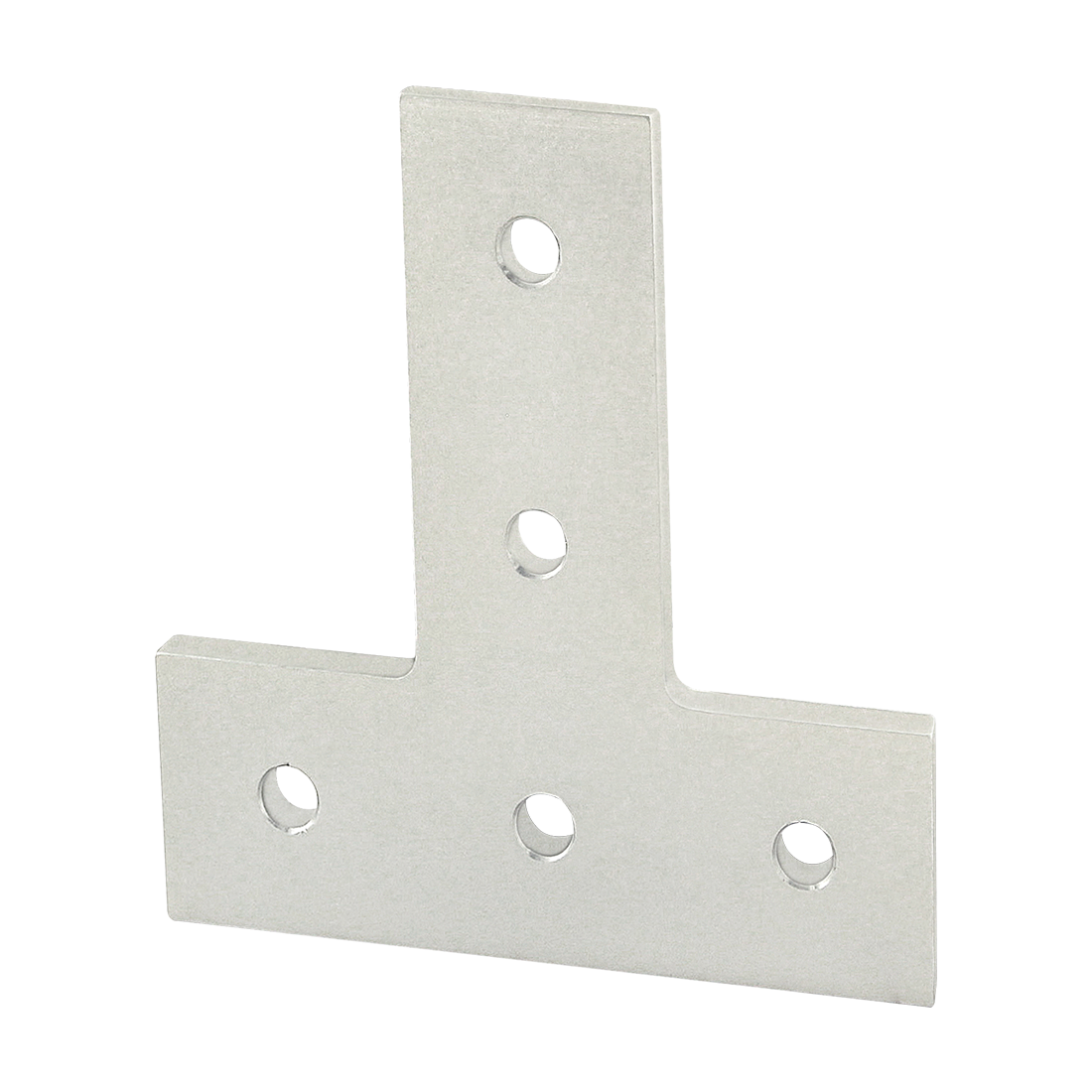

40 Series 5 Hole – “T” Flat Plate
The 5 hole – “T” flat plate is a strong, external fastening method offering a long-lasting connection. This flat plate creates a 90 degree angle between connecting profiles. The fastener is flush with the profiles, allowing for a larger clearance area. It requires no machining services, is easy to assemble, and can be reconfigured and reused. Tip: Pre-load your hardware prior to connecting profiles to simplify your assembly.
Part No: 40-4480
$24.19
