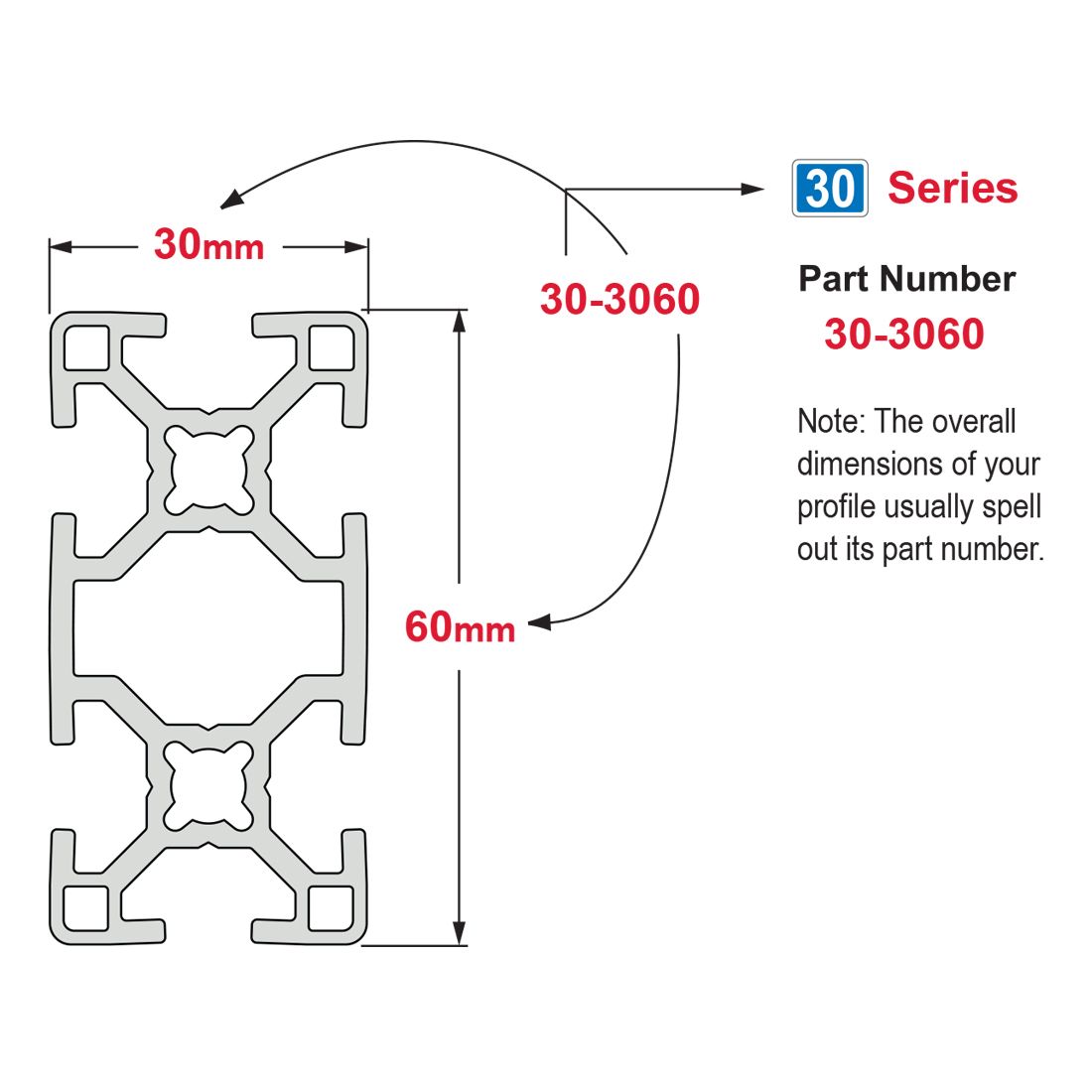

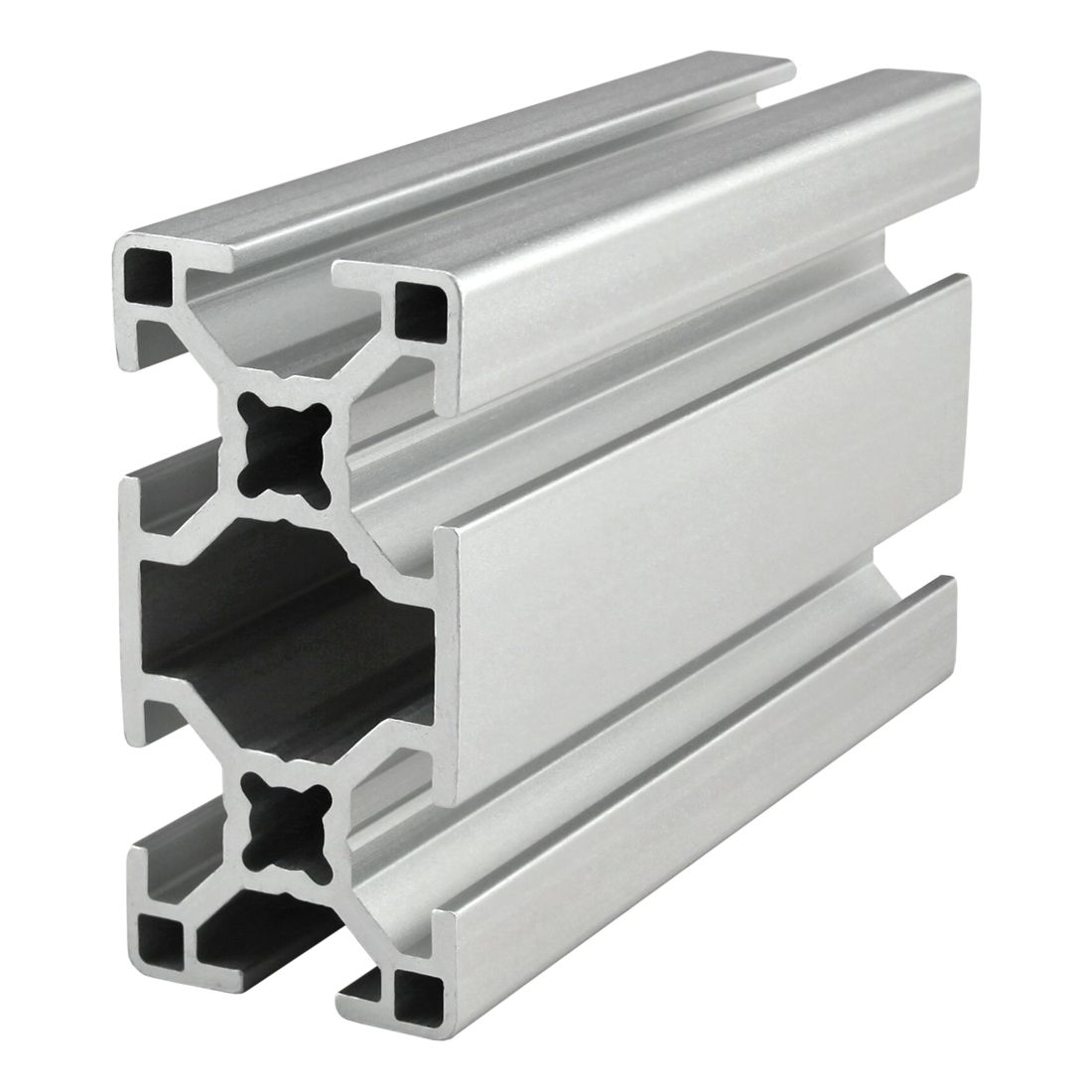

30-3060 is a 30mm x 60mm metric 30 series rectangular T-slot profile with six open T-slots, two on each 60mm face and one on each 30mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-3060 profile is compatible with 30 series fasteners and lends itself to work spaces, machine guards and displays.
Part No: 30-3060
$0.07
| Max Length (inches) | 238.188976 |
| Series | 30 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |

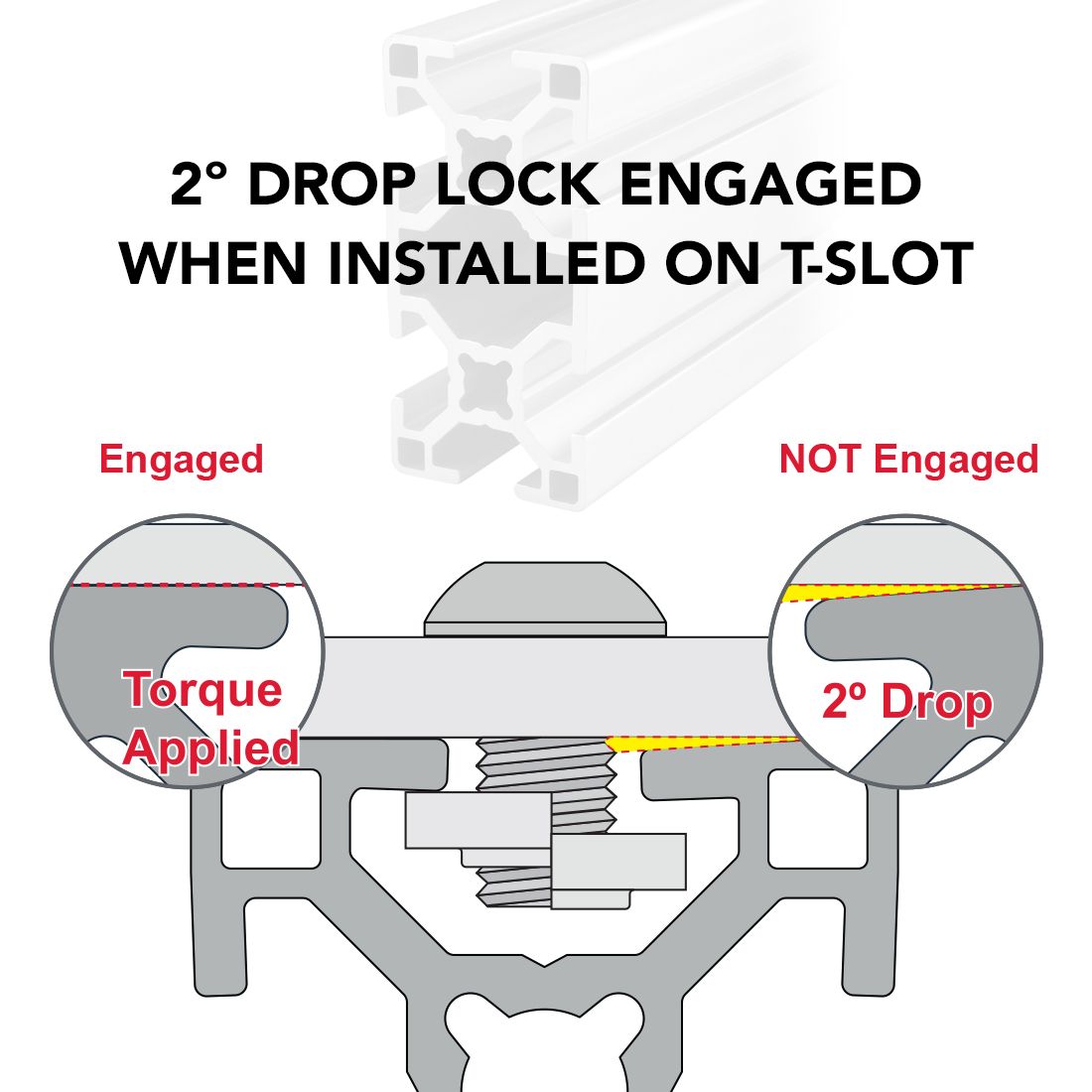

| Drop Lock | 2° |
| Moment of Inertia – IX | 19.6933 cm⁴ |
| Moment of Inertia – IY | 5.4332 cm⁴ |
| Surface Area | 5.8266 cm⁴ |
| Yield Strength | 172.37 N / Sq mm |
| Modulus of Elasticity | 68.947.6 N / Sq mm |
| Weight lbs | 0.0918 per inch |
| Weight | 0.091800 |
| Brand |
|---|
No CAD files available for this product.
