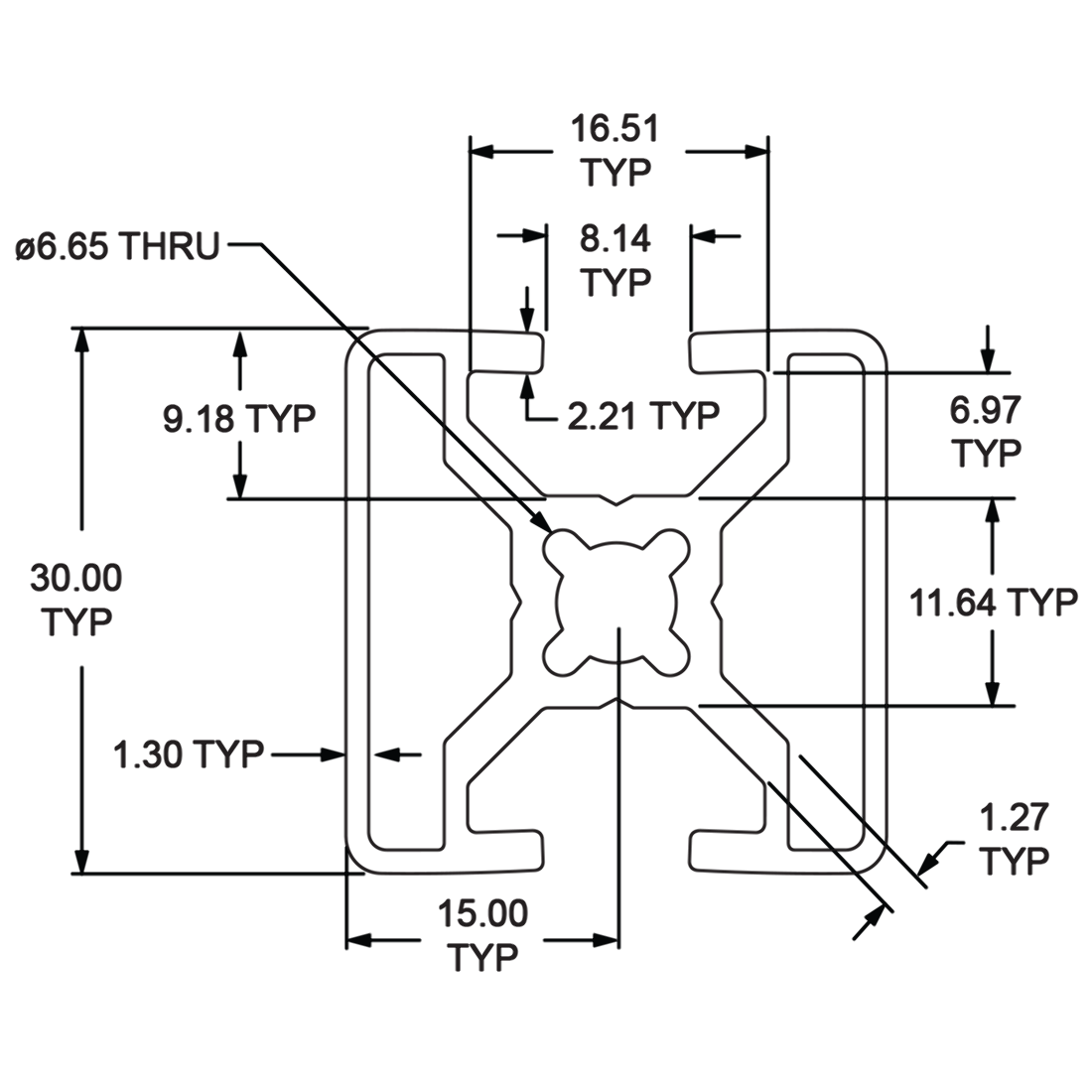

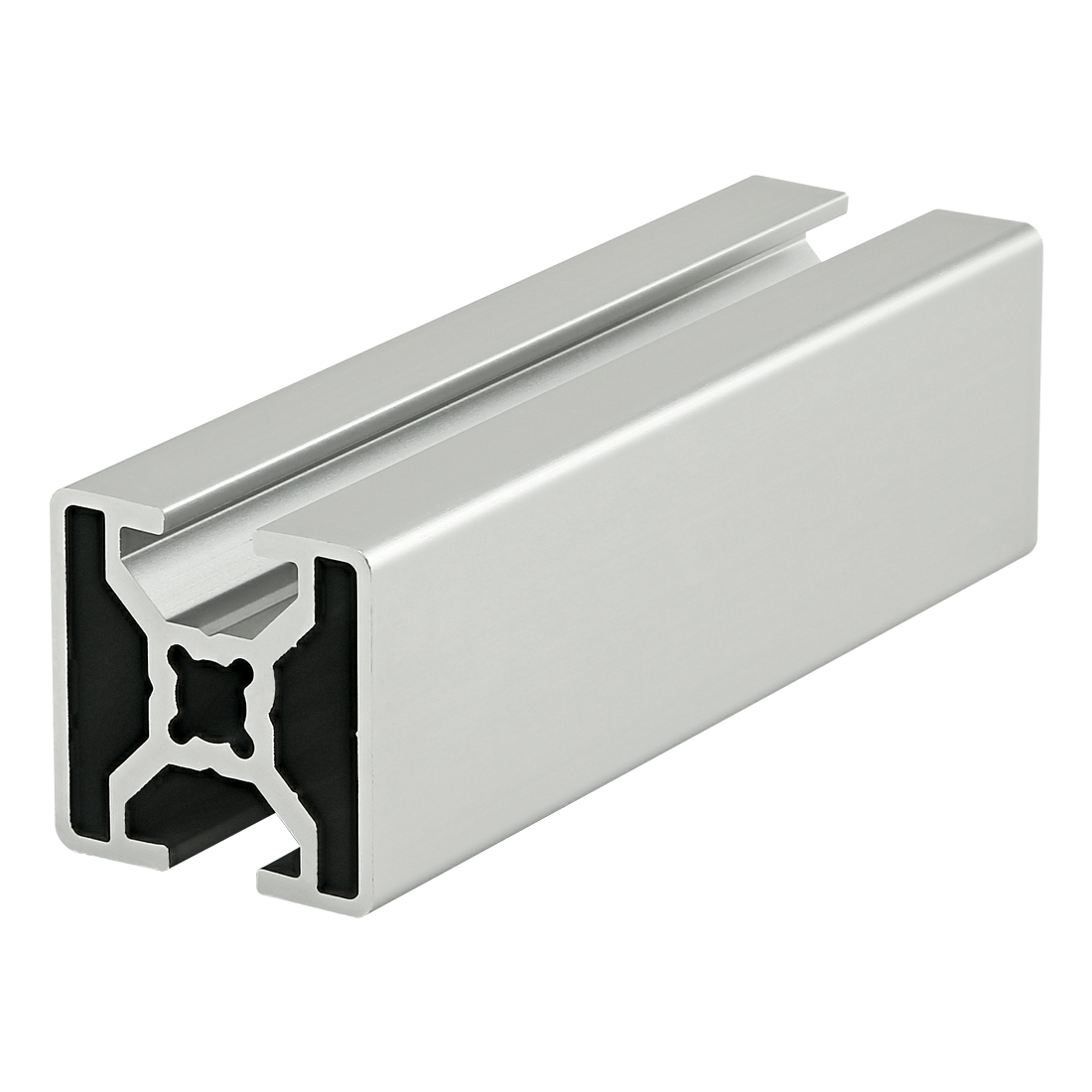

30mm X 30mm T-Slotted Profile – Two Opposite Open T-Slots

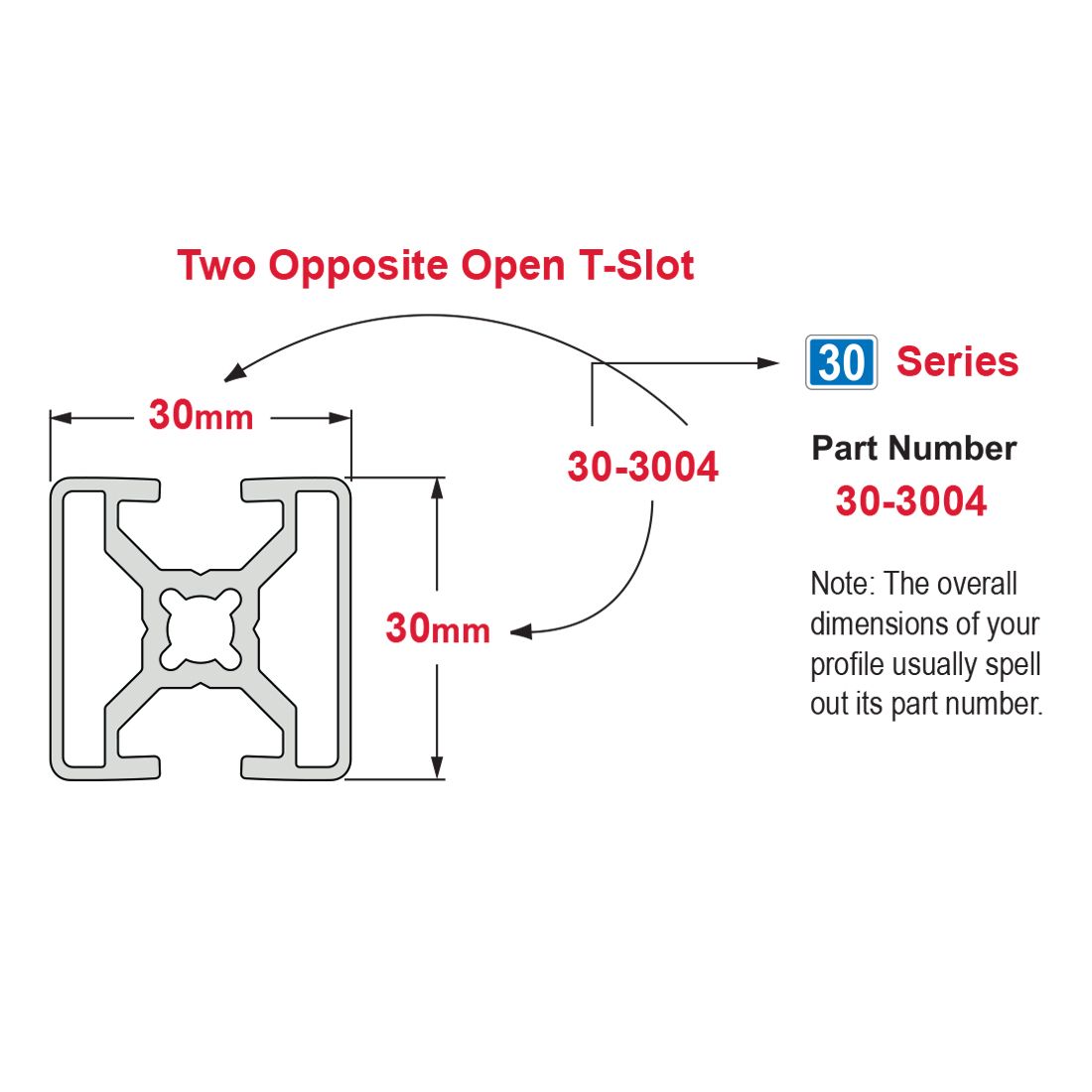

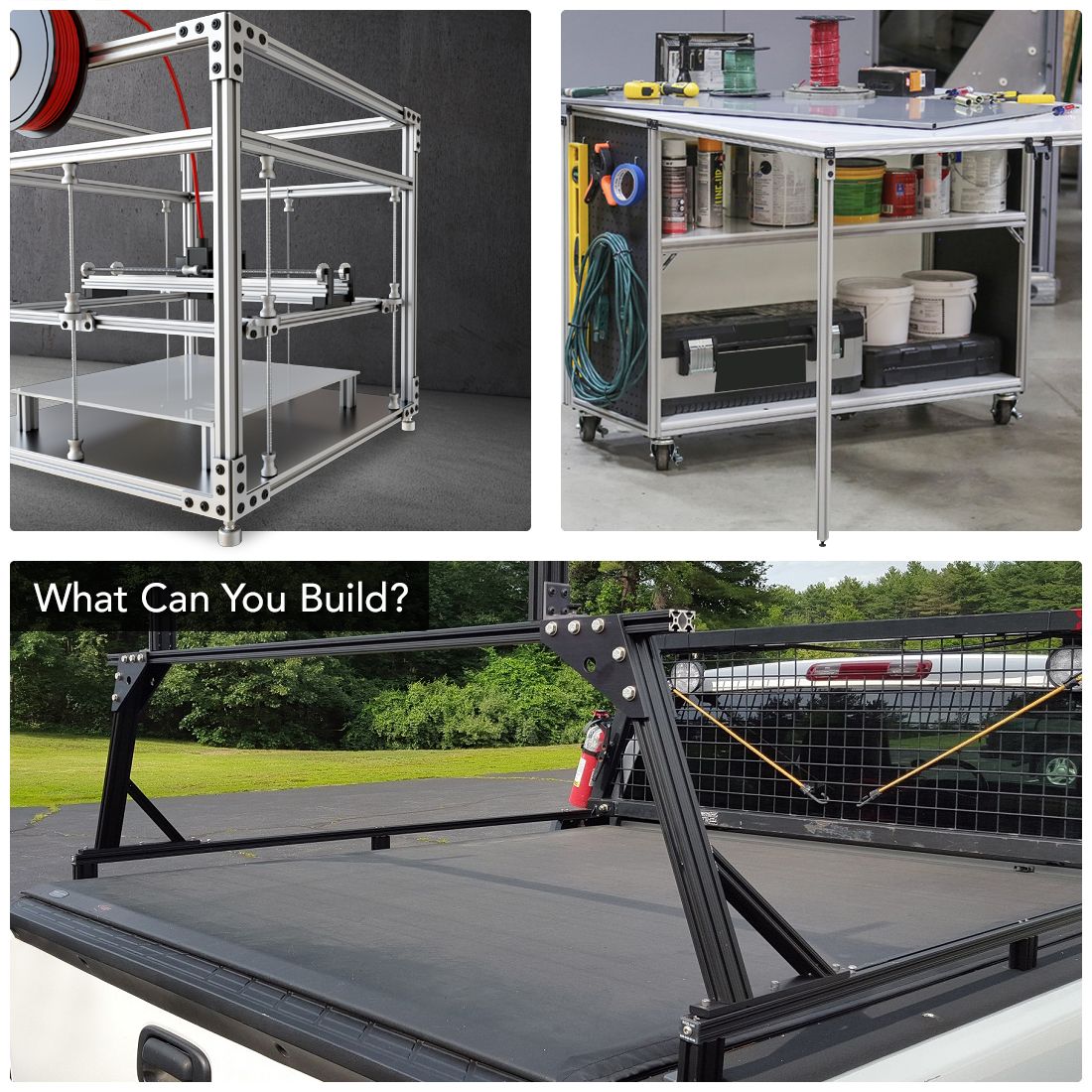

30-3004 is a 30mm x 30mm metric 30 series square T-slot profile with two opposite open T-slots, one on two 30mm faces. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 30-3004 profile is compatible with 30 series fasteners. The placement of the T-slots allow support structures or panels to be easily placed into them while maintaining a continuous surface, lending itself to projects such as guarding, furniture or displays.

Part No: 30-3004

$0.03

Description

Max Length (inches) 238.188976
Series 30 Series
Material Aluminum
Grade 6063-T6
Finish Anodize
Color Clear
Drop Lock
Moment of Inertia – IX 2.6212 cm⁴
Moment of Inertia – IY 2.5234 cm⁴
Surface Area 2.986 Sq cm
Yield Strength 172.37 N / Sq mm
Modulus of Elasticity 68.947.6 N / Sq mm
Weight lbs 0.0448 per inch
Weight 0.044800
80/20
