Description
| Series | 30 Series |
| Material | Steel |
| Color | Bright |
| A | 7.80mm |
| B | M8 x 11 |
| C | 16.00mm |
| D | 57.50mm |
| E | M5 x 14 |
| Weight | 0.110000 |

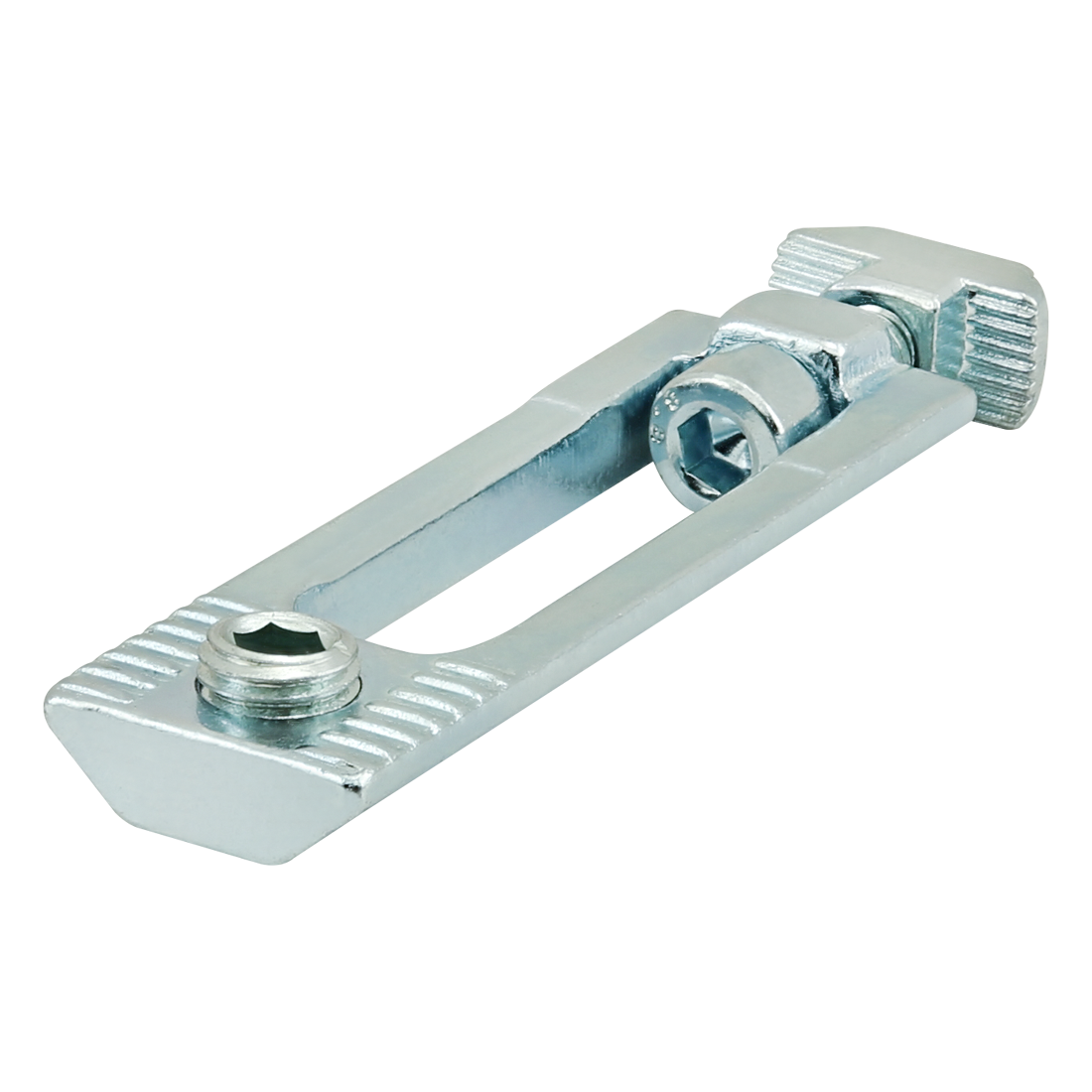

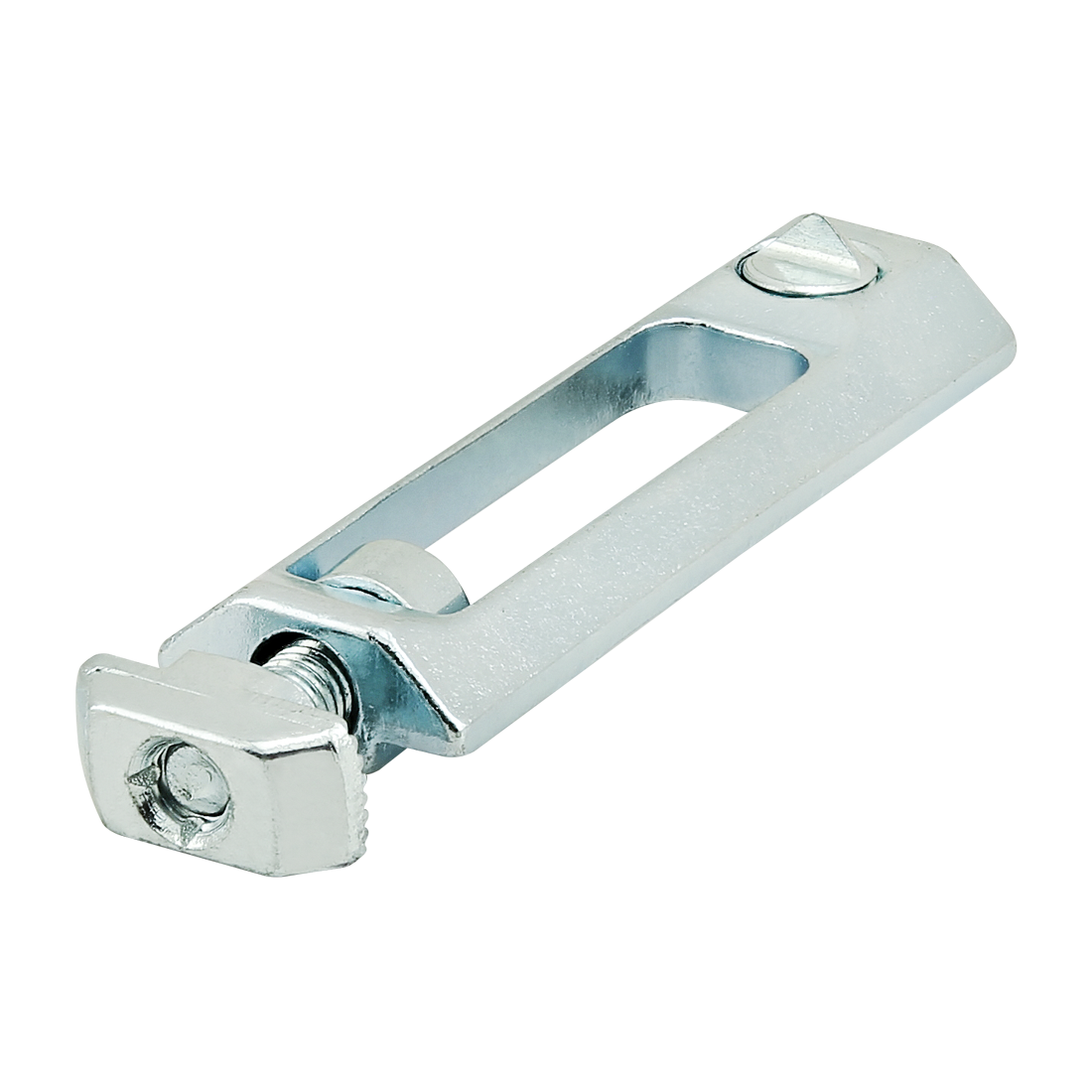

30 Series Milling Connector

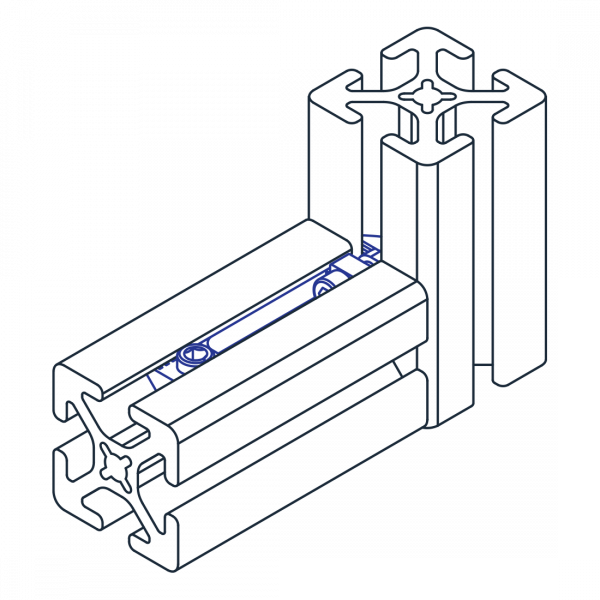

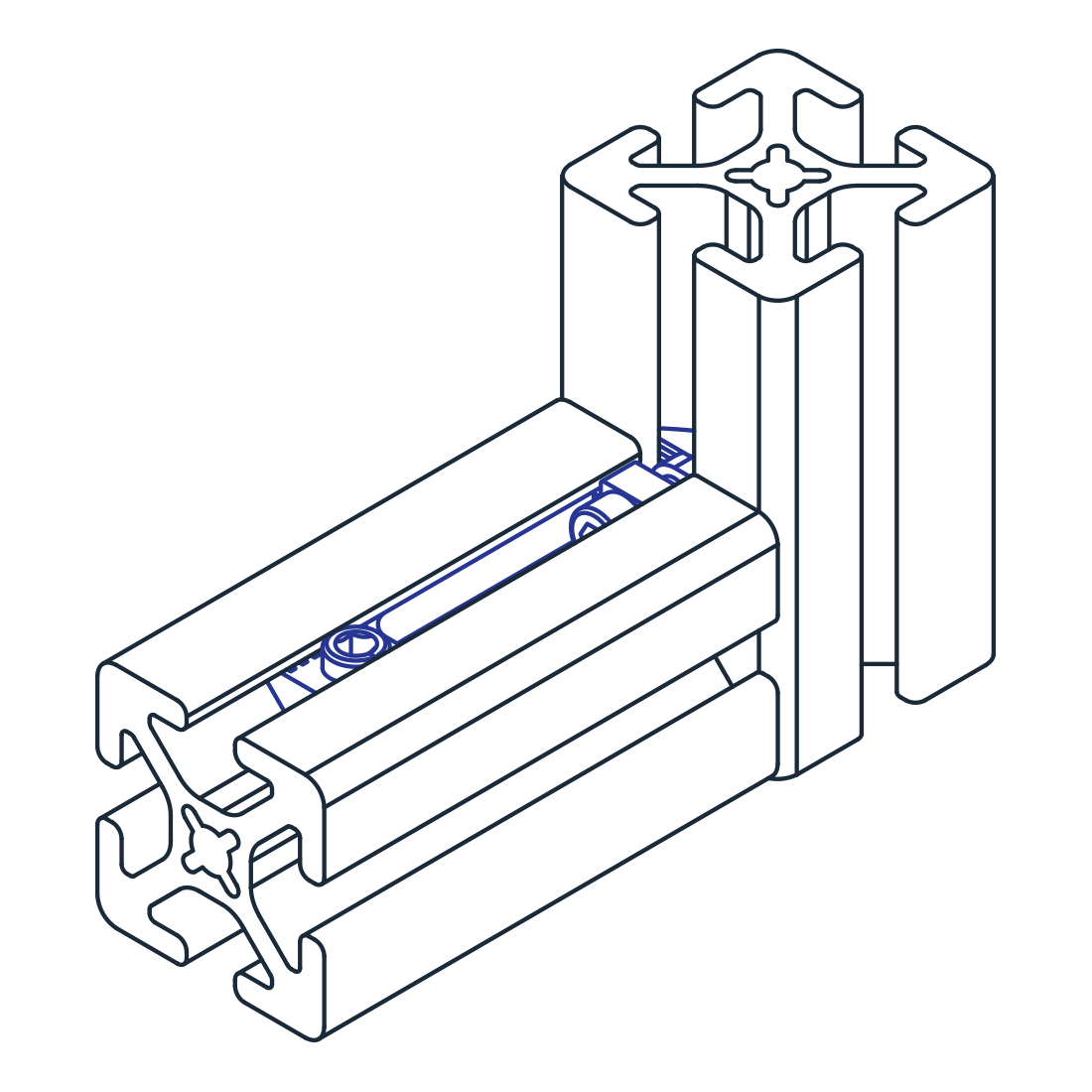

The milling connector provides a strong, internal fastening method that requires no profile machining. It allows infinite positioning along the mating profile and can be used even when the mating profile end is captivated. The point of the set screw bites into the bottom of the T-slot profile, making it a secure connection. The milling connector can be used in pairs.
Part No: 14116
$15.31
Additional information
| Brand |
|---|
No CAD files available for this product.
