Description
Series | 30 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Clear |
A | 30.00mm |
B | 30.00mm |
C | 4.00mm |
D | 15.00mm |
E | 13.50mm |
F | 27.00mm |
G | 6.81mm |
Weight | 0.034000 |

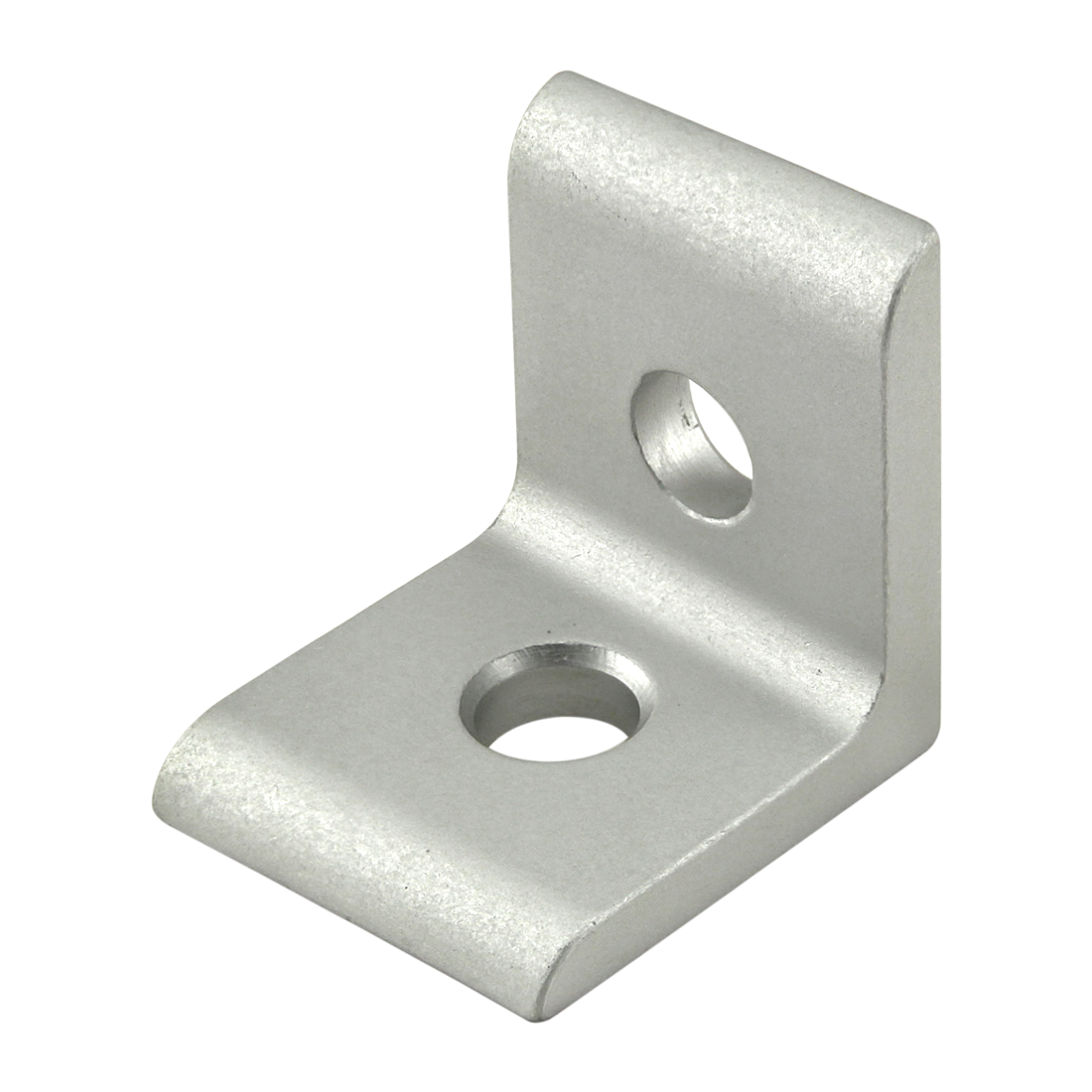

The 2 hole – inside corner bracket is an external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. It is a fastening method that can be repositioned and reused.
Part No: 30-4302
$8.84
Series | 30 Series |
Material | Aluminum |
Grade | 6063-T6 |
Finish | Anodize |
Color | Clear |
A | 30.00mm |
B | 30.00mm |
C | 4.00mm |
D | 15.00mm |
E | 13.50mm |
F | 27.00mm |
G | 6.81mm |
Weight | 0.034000 |
Brand |
---|
No CAD files available for this product.
