Description
| Series | 30 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 30.00mm |
| B | 30.00mm |
| C | 4.00mm |
| D | 13.50mm |
| E | 12.70mm |
| F | 27.00mm |
| G | 15.00mm |
| H | 6.81mm |
| Weight | 0.050000 |

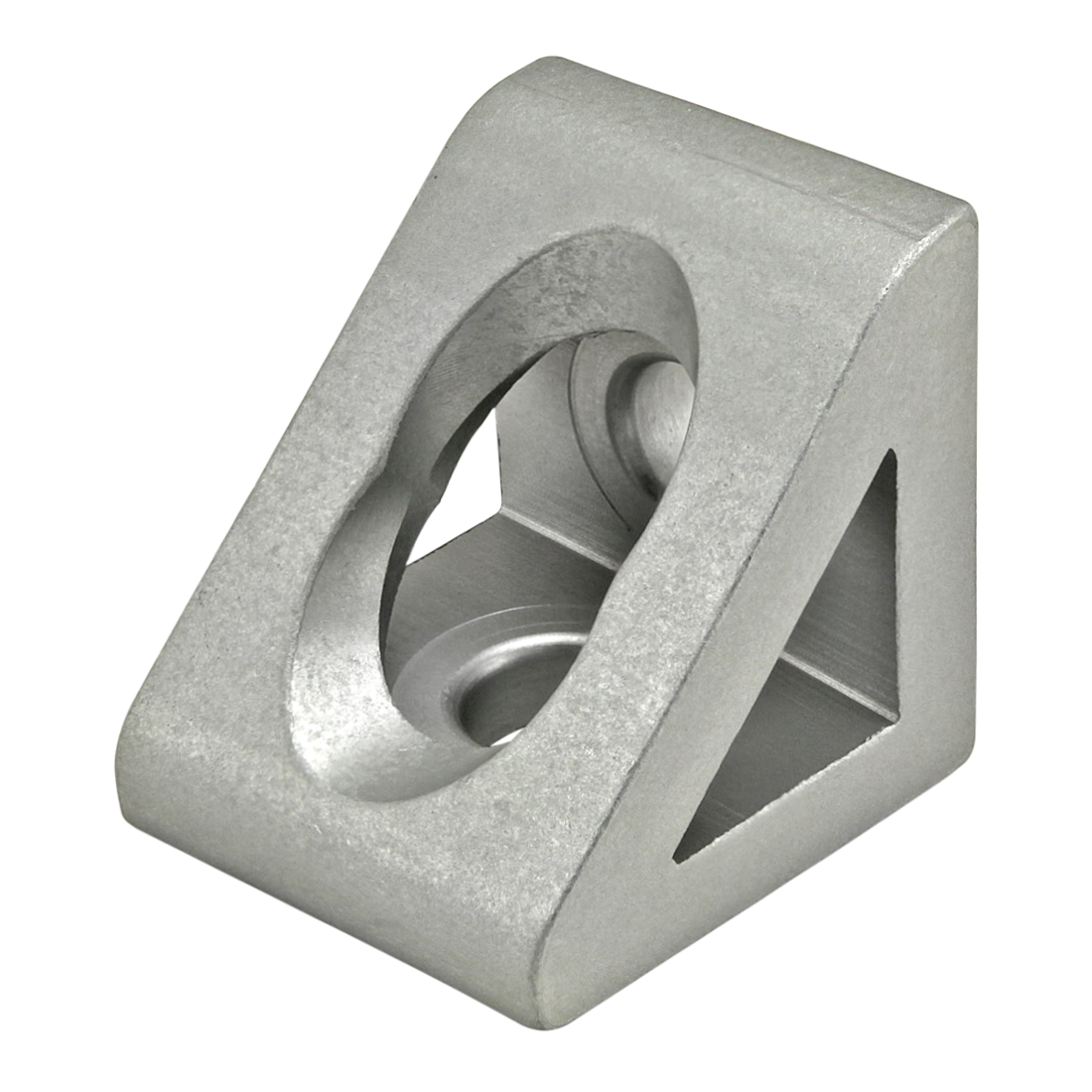

30 Series 2 Hole – Gusseted Inside Corner Bracket

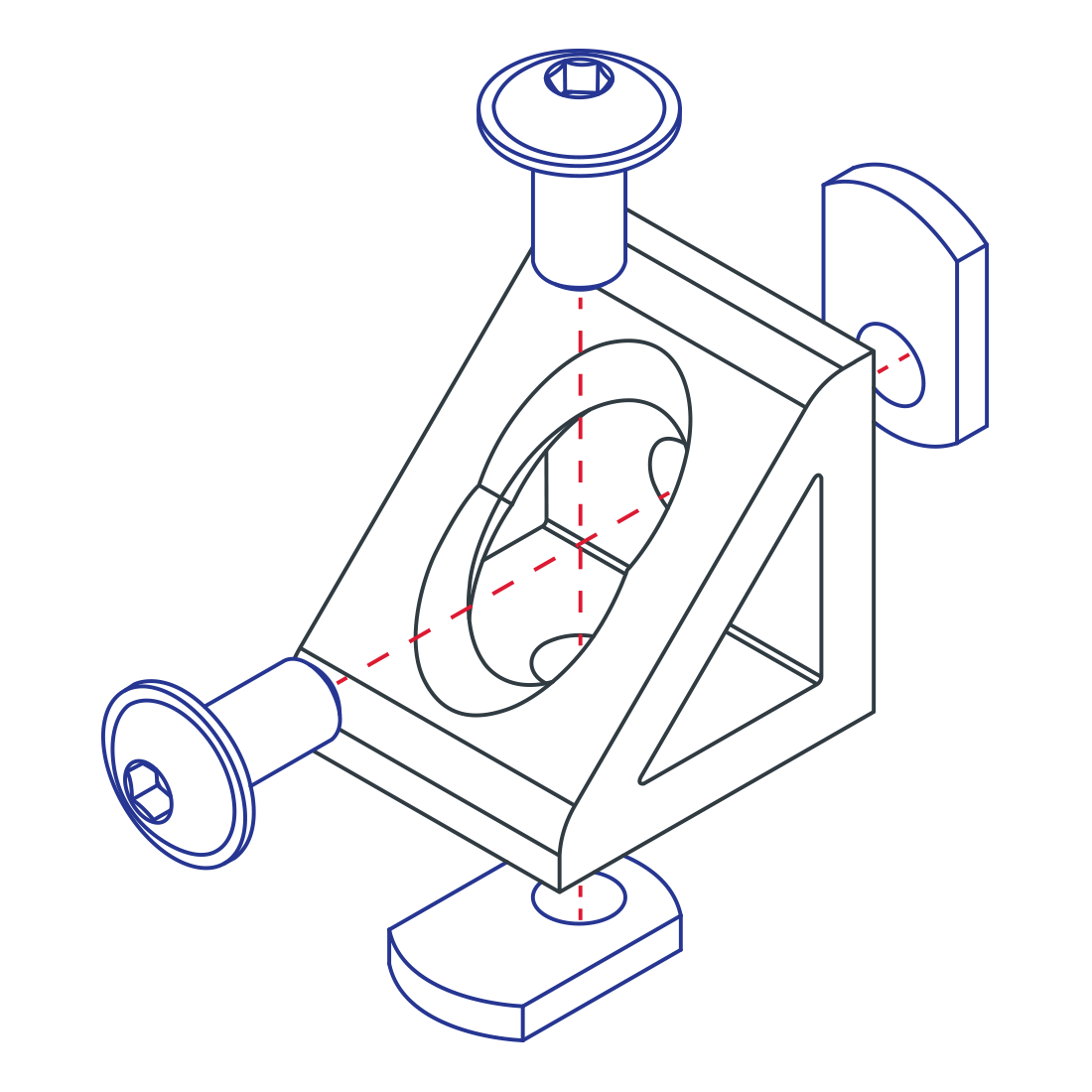

The 2 hole – gusseted inside corner bracket is a strong, external fastening method that creates a 90 degree connection. It requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. The shape of the gusset provides extra material, strengthening the connection. It is a fastening method that can be repositioned and reused.
Part No: 30-4332
$12.85
Additional information
| Brand |
|---|
No CAD files available for this product.
