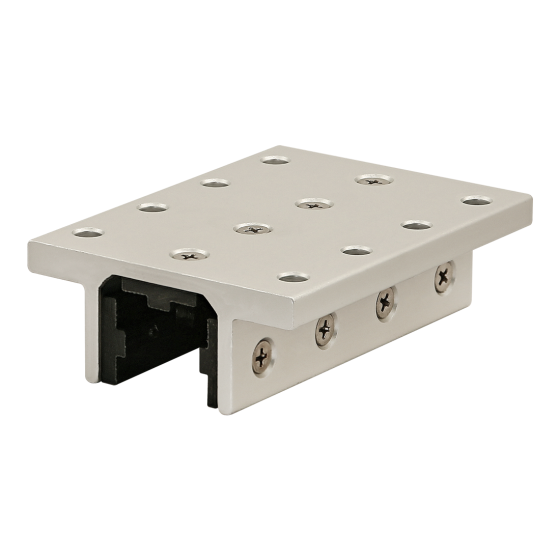

The 3-slot mount – double flange long standard linear bearing without brake holes is typically used in linear motion applications. It houses profiles with a minimum of three open T-slots, has a double flange and is a longer option. The bearing includes pads, screws and shims; the pads are made of self-lubricating UHMW. All 80/20 bearings are designed for compression loads only and not intended to support hanging loads.
Part No: 25-6726
$149.81
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Extruded |
| Finish | Anodize |
| Color | Clear |
| A | 31.20mm |
| B | 8.00mm |
| C | 23.20mm |
| D | 1.80mm |
| E | 41.15mm |
| F | 4.00mm |
| G | 33.15mm |
| H | 7.80mm |
| J | 16.47mm |
| K | 4.00mm |
| L | 74.09mm |
| M | 100.00mm |
| N | n/a |
| P | 12.50mm |
| Q | 8.48mm |
| R | 37.05mm |
| S | 25.00mm |
| T | 25.00mm |
| U | #8 FHS |
| V | n/a |
| W | 6.30mm |
| X | 57.12mm |
| Y | 25.00mm |
| Z | 12.50mm |
| AA | 10.64mm |
| Weight | 0.447000 |
