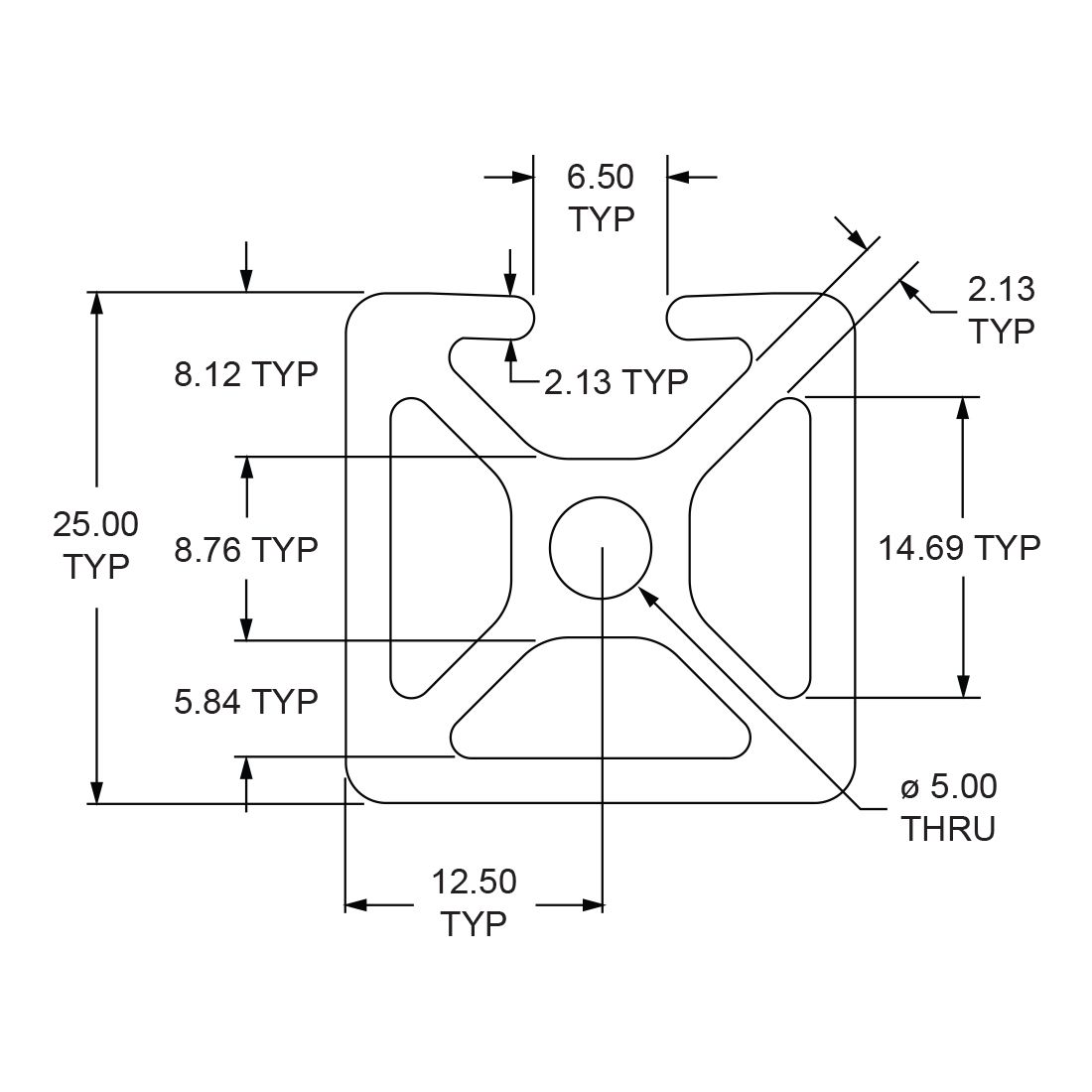

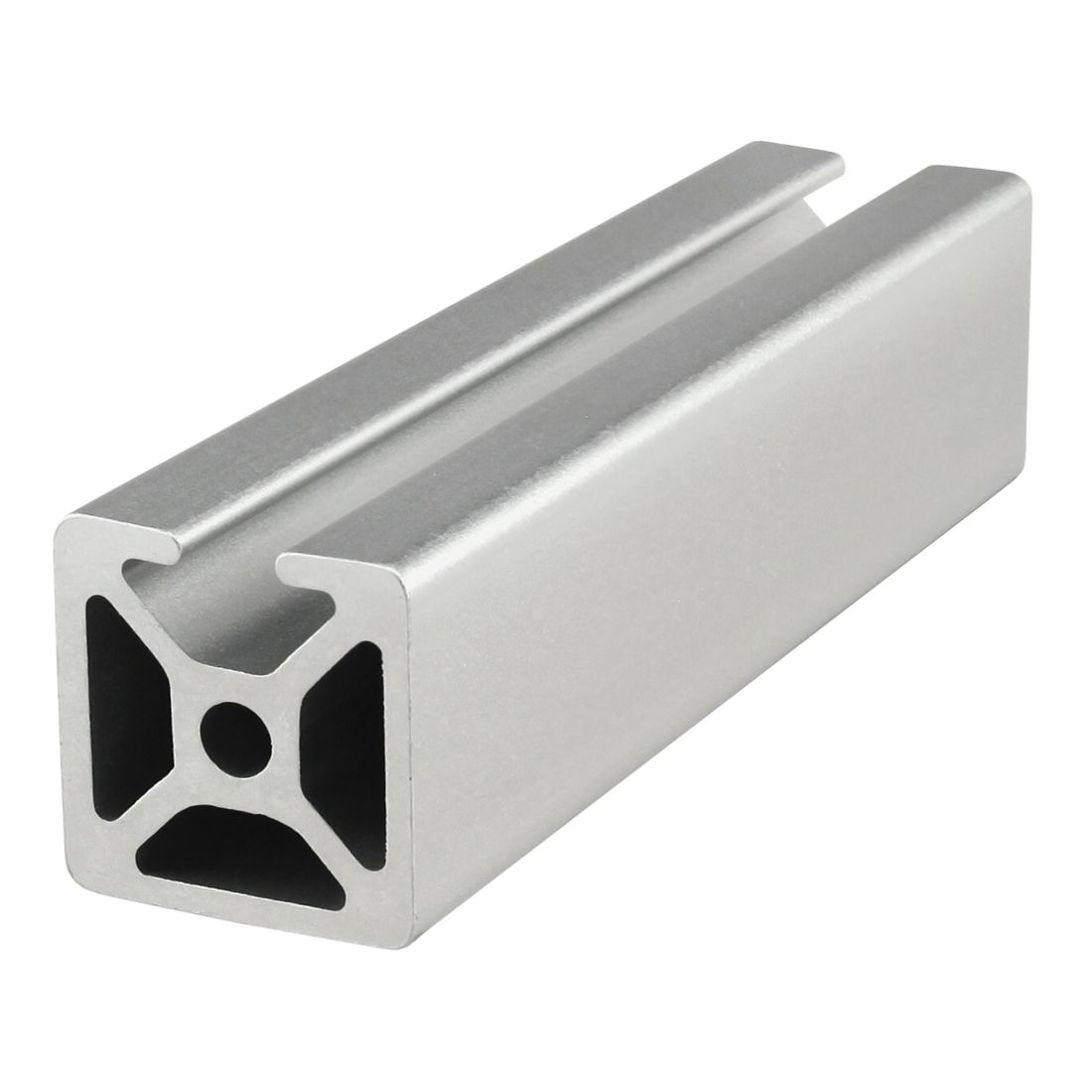

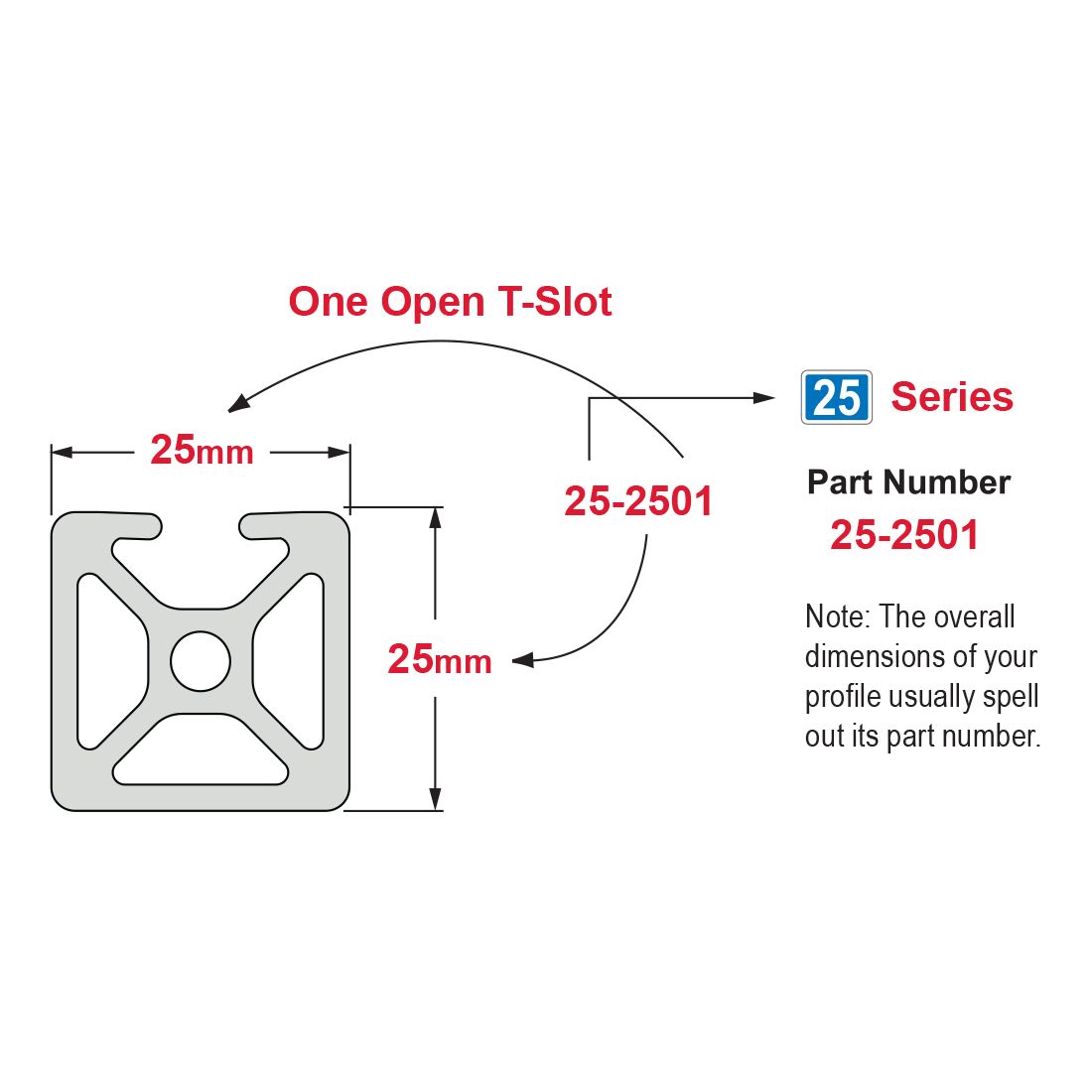

25-2501 is a 25mm x 25mm metric 25 series square T-slot profile with one open T-slot on one 25mm face. The profile is smooth, which makes it resistant to dirt and debris buildup while also being easy to clean. The 25-2501 profile is compatible with 25 series fasteners. The three closed faces on this profile provide a clean, aesthetic look and it lends itself to furniture, displays, desks, trade show booths, or retail kiosks.
Part No: 25-2501
$0.03
Note: Price Per MM $0.03
| Max Length (inches) | 238.188976 |
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| Drop Lock | 2° |
| Moment of Inertia – IX | 2.1892 cm⁴ |
| Moment of Inertia – IY | 1.9873 cm⁴ |
| Surface Area | 3.185 Sq cm |
| Yield Strength | 172.37 N / Sq mm |
| Modulus of Elasticity | 68.947.6 N / Sq mm |
| Weight lbs | 0.0481 per inch |
| Weight | 0.048100 |
| Brand |
|---|
$0.02
$0.03
$0.07
Reviews
There are no reviews yet.
