Description
| Series | 25 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Process | Milled |
| Finish | Anodize |
| Color | Clear |
| A | 25.00mm |
| B | 50.00mm |
| C | 12.50mm |
| D | 12.50mm |
| E | M6 |
| F | 6.89mm |
| G | 25.00mm |
| H | 25.00mm |
| Weight | 0.195100 |

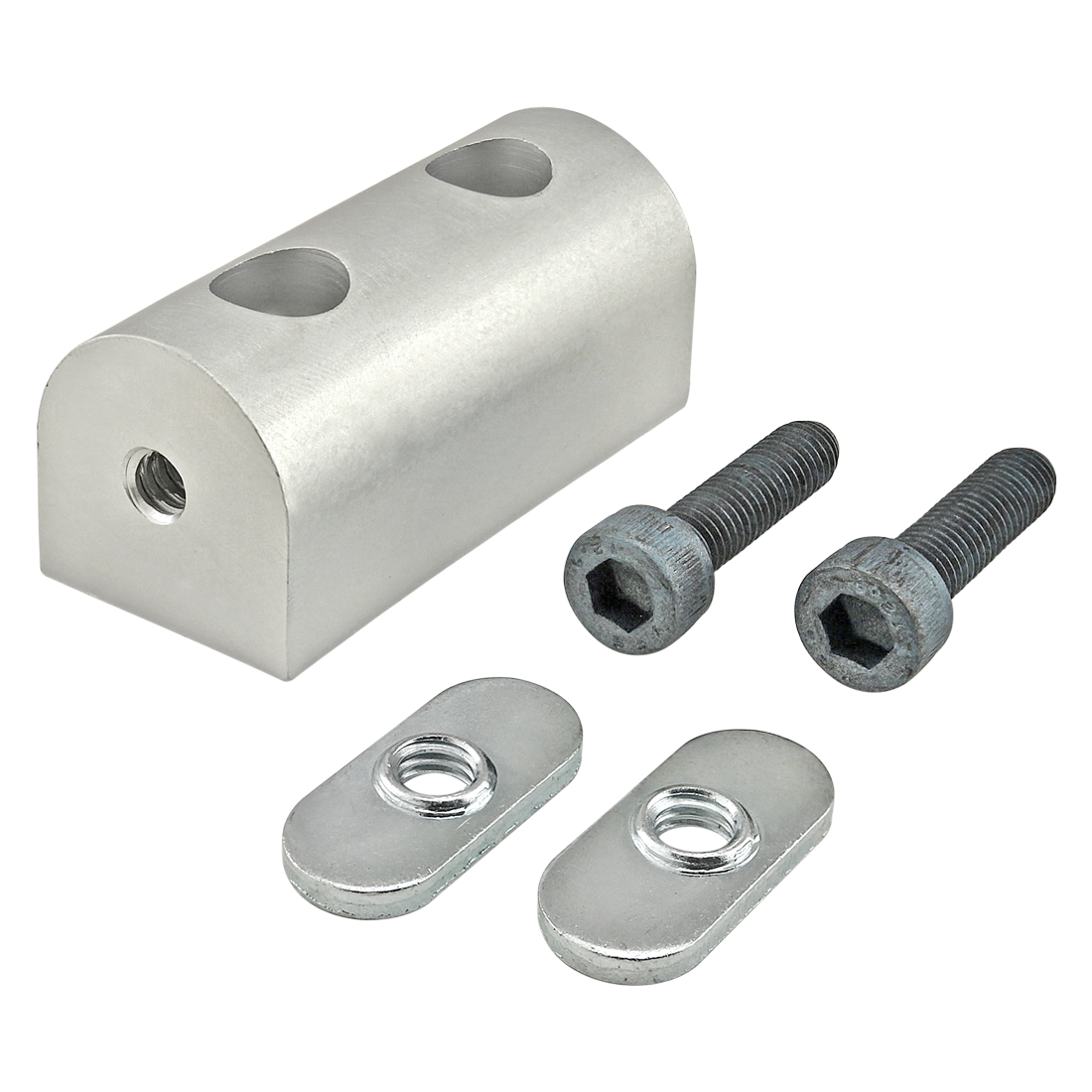

25 Series Universal Structural Pivot Nub
The universal structural pivot nub is an external fastening method commonly used as a connection hub to create a structural pivot ranging from 0-180 degrees either parallel or perpendicular to the mounting profile. The universal structural pivot nub requires no machining services and can be easily assembled, lending itself to repositioning and reuse. The suggested mounting hardware can be found on the “Suggested Hardware” tab.
Part No: 25-4186
$25.26
Additional information
| Brand |
|---|
No CAD files available for this product.
