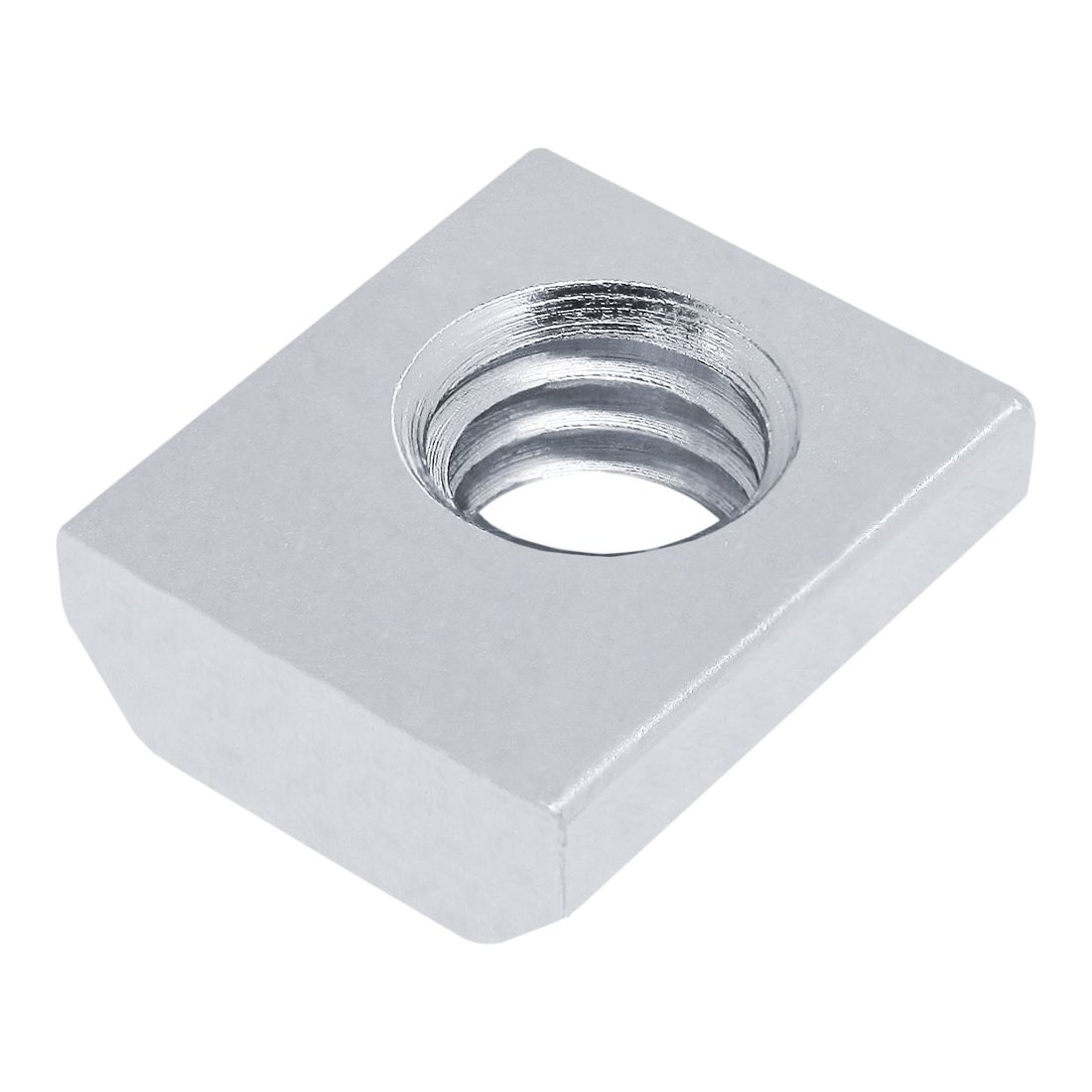

25 Series M6 Standard Slide-in T-Nut

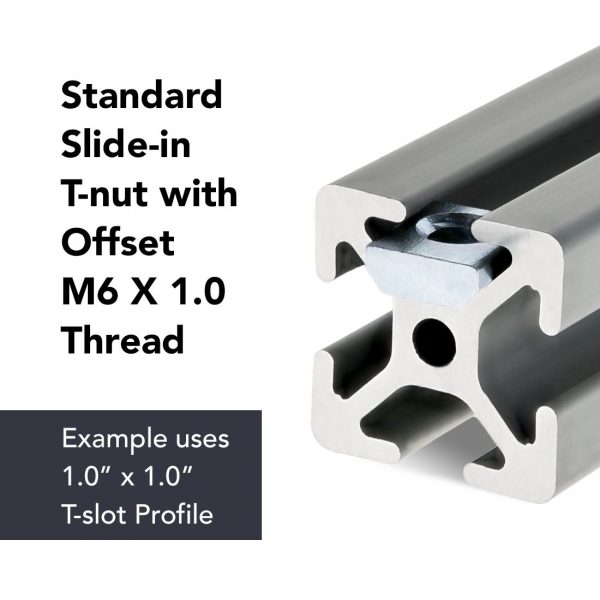

The standard slide-in T-nut is a fastening option that loads from the profile ends. It is a strong, durable connection that is available with options in size, thread, and finish.

Part No: 25-1964

$2.92

Description

Series 25 Series
Type Standard T-Nut
Material Steel
Grade 1215
Finish Zinc
Color Bright
A 12.45mm
B 5.08mm
C 10.95mm
D (Thread) M6 x 1.0
E 4.34mm
Weight 0.008000
Max Length (inches) 1.000000
80/20
