Description

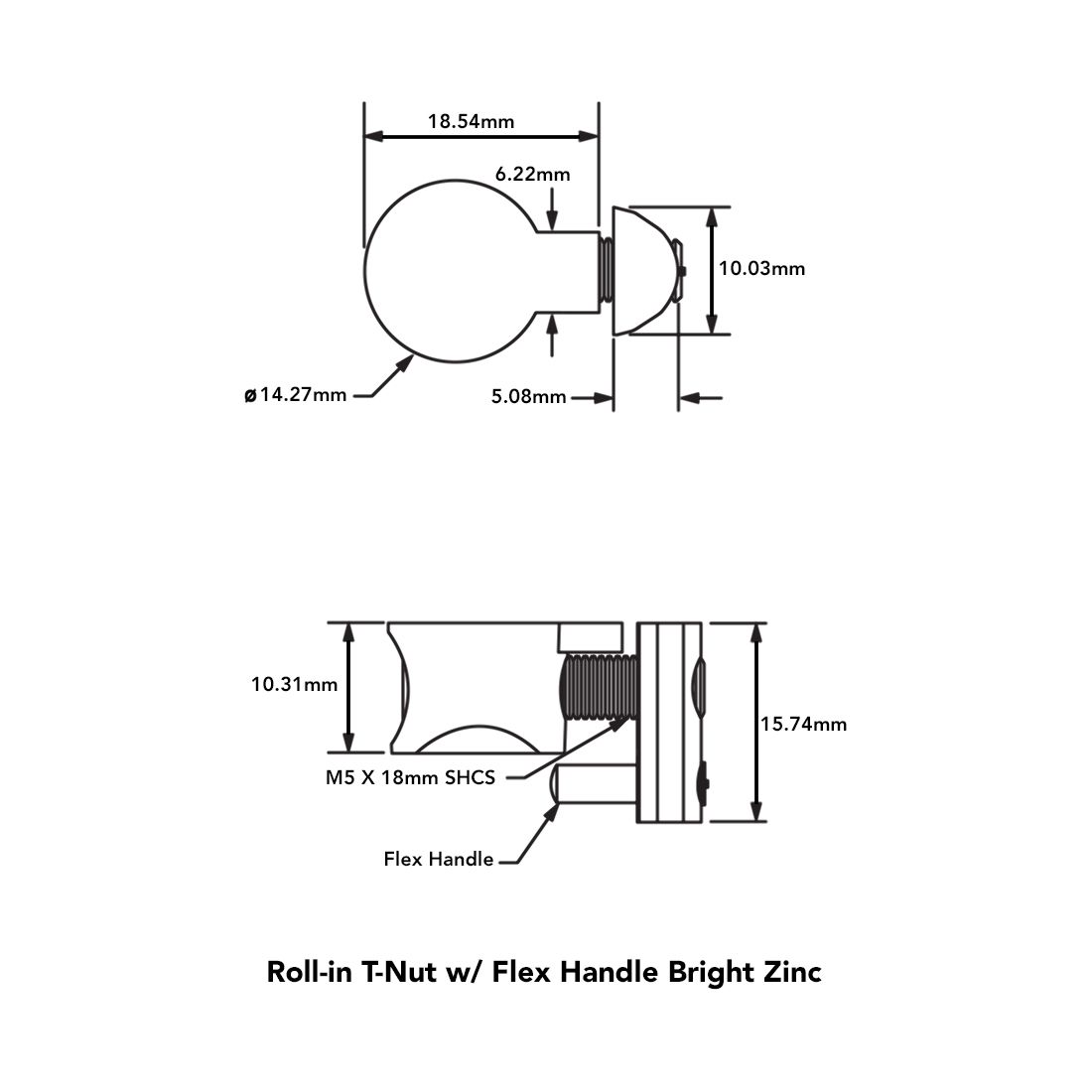

| Series | 25 Series |
| Material | Zinc |
| Cam Color | Bright |
| A | 18.54mm |
| B | 6.22mm |
| C | 14.27mm |
| D | 10.31mm |
| Weight | 0.015200 |
25 Series Bright Anchor Fastener Cam Only

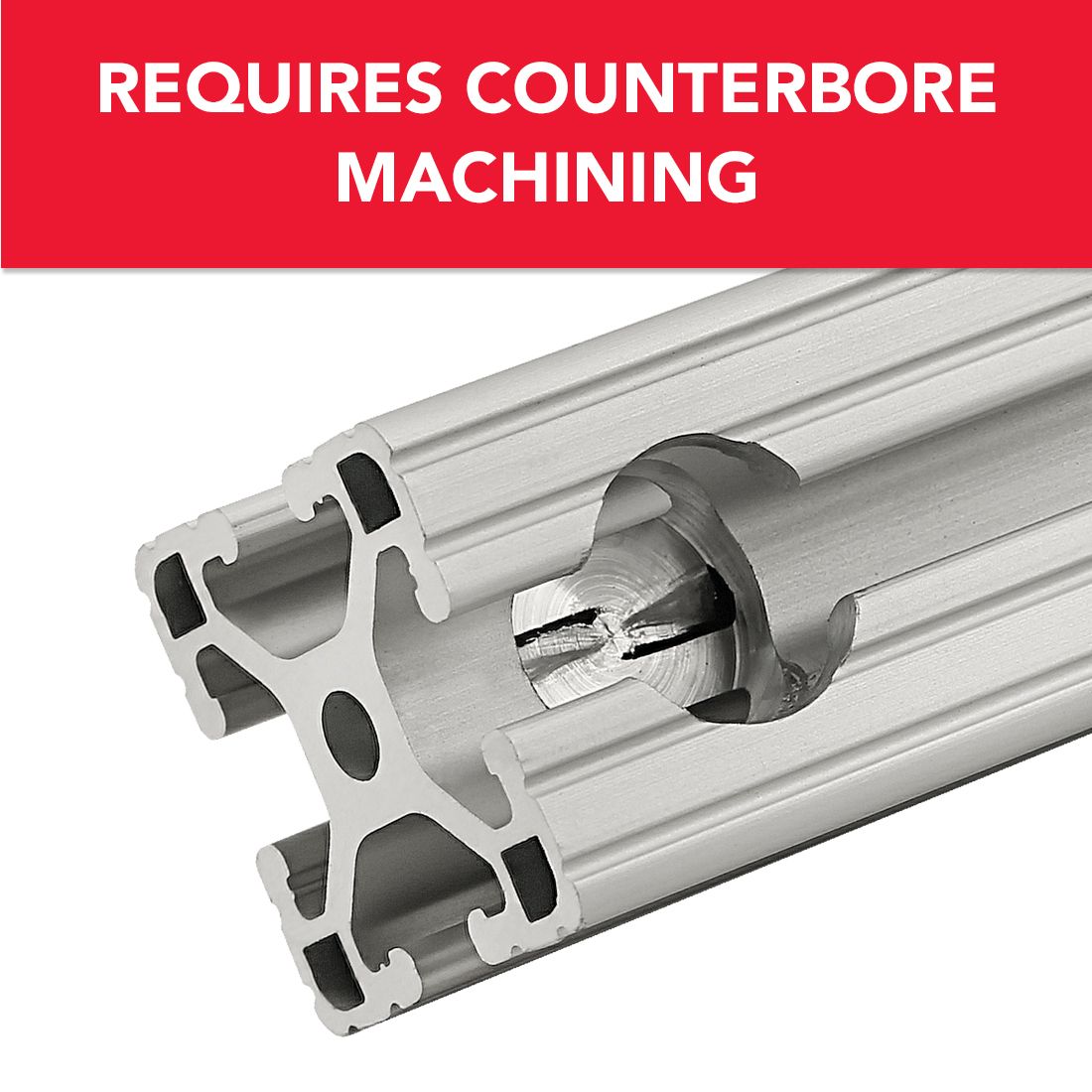

The anchor fastener cam is commonly used with a socket head cap screw and T-nut to form custom anchor fastener assemblies. An anchor fastener connection method requires a counterbore machining service on the mounting profile.
Part No: 25-3396
$5.60
Additional information
| Brand |
|---|
No CAD files available for this product.
