Description
| Series | 20 Series |
| Material | Aluminum |
| Grade | 6063-T6 |
| Finish | Anodize |
| Color | Clear |
| A | 20.00mm |
| B | 20.00mm |
| C | 3.00mm |
| D | 10.00mm |
| E | 9.00mm |
| F | 20.00mm |
| G | 38.00mm |
| H | 5.56mm |
| Weight | 0.023000 |

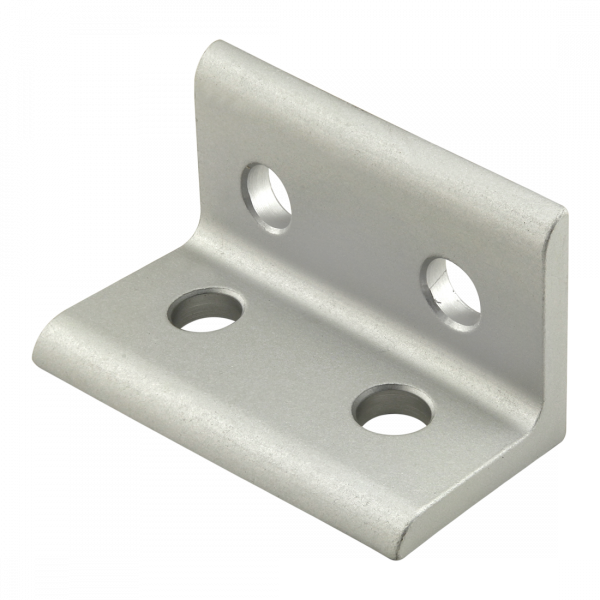

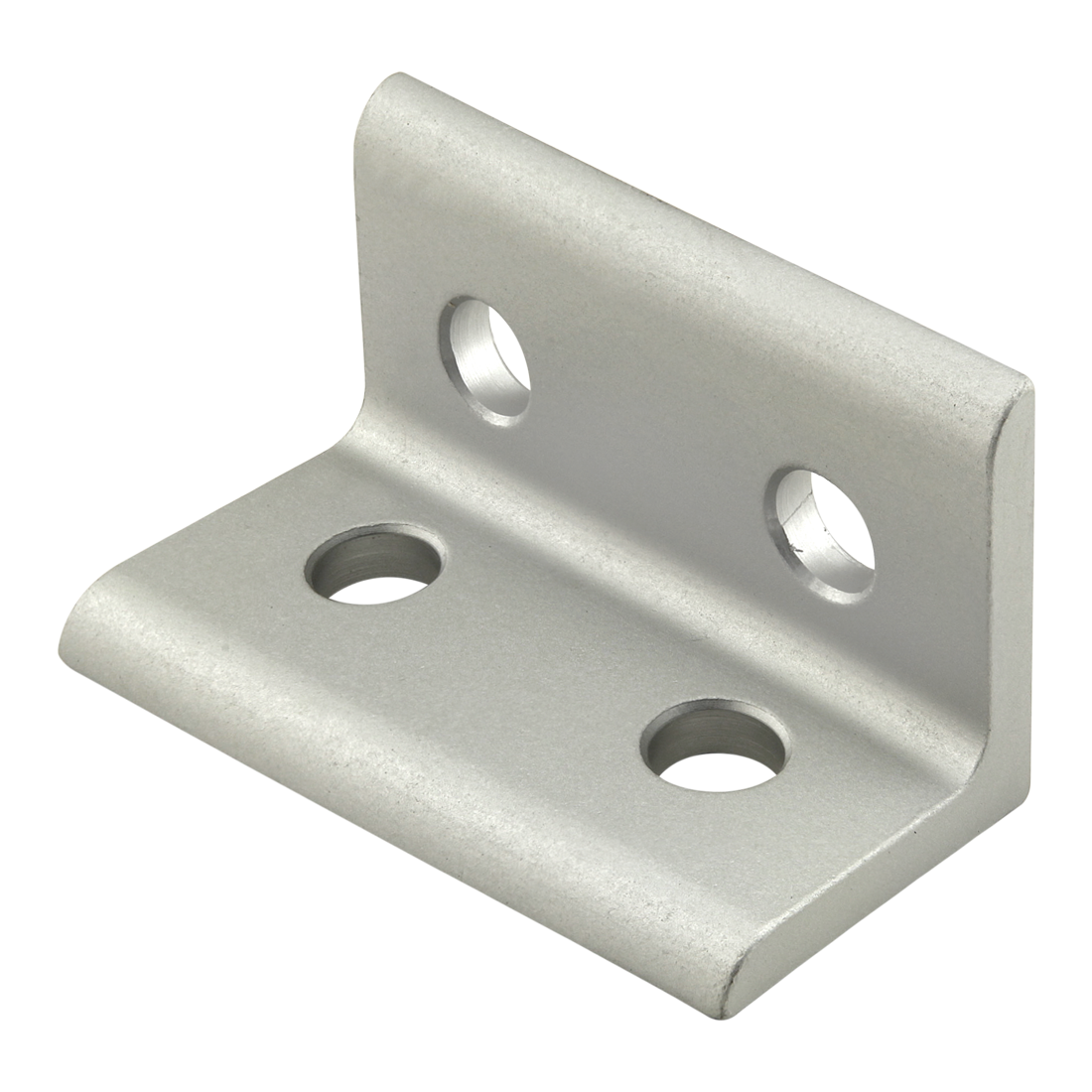

20 Series 4 Hole – Wide Inside Corner Bracket

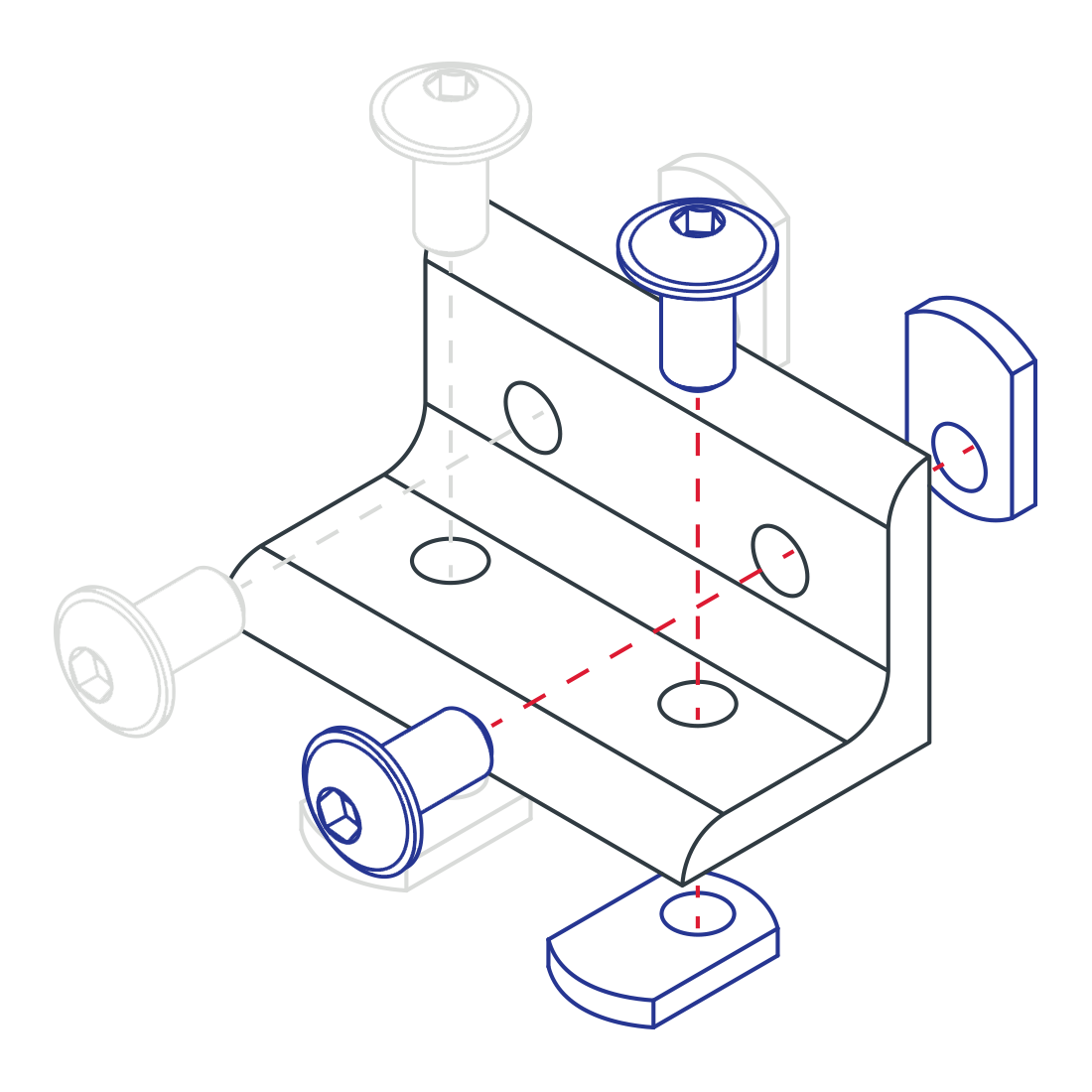

The 4 hole – wide inside corner bracket is an external fastening method that creates a 90 degree connection. There are two adjacent holes on each side of the bracket. This fastener requires no machining services and can provide infinite positioning along the profile T-slot, allowing a large degree of adjustability. It is a fastening method that can be repositioned and reused.
Part No: 20-4113
$12.12
Additional information
| Brand |
|---|
No CAD files available for this product.
