Description
| Weight | 0.067300 |
| Series | 15 Series, 40 Series |
| Material | Steel |
| Color | Silver |
| A | 1.457″ (37.00mm) |
| B | 0.358″ (9.10mm) |
| C | 0.315″ (8.00mm) |
| D | 0.527″ (13.39mm) |
| E | M12 x 1.5 |
| F | M6 x 40mm SHCS |
| G | 0.746″ (19.00mm) |
| H | 0.236″ (6.00mm) |

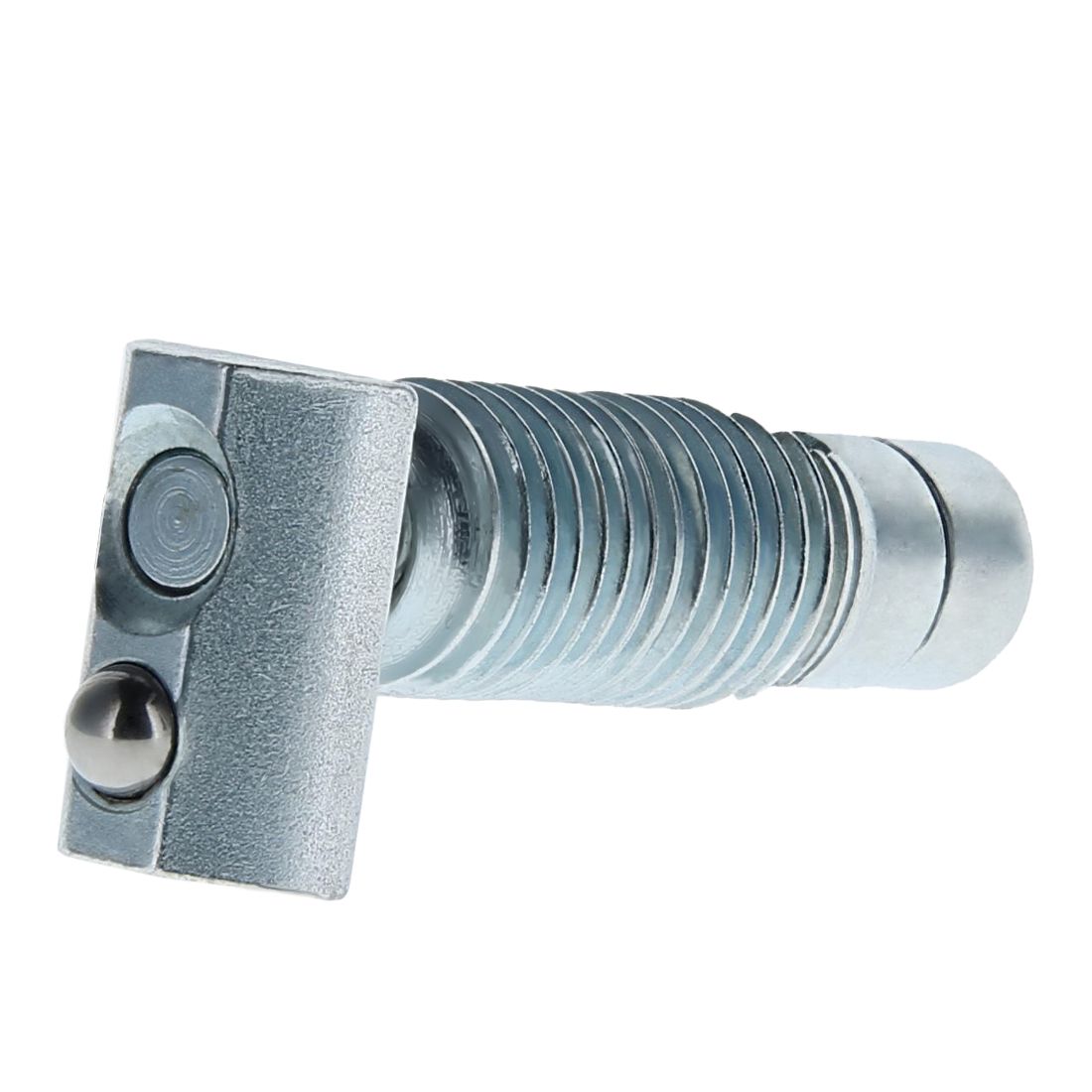

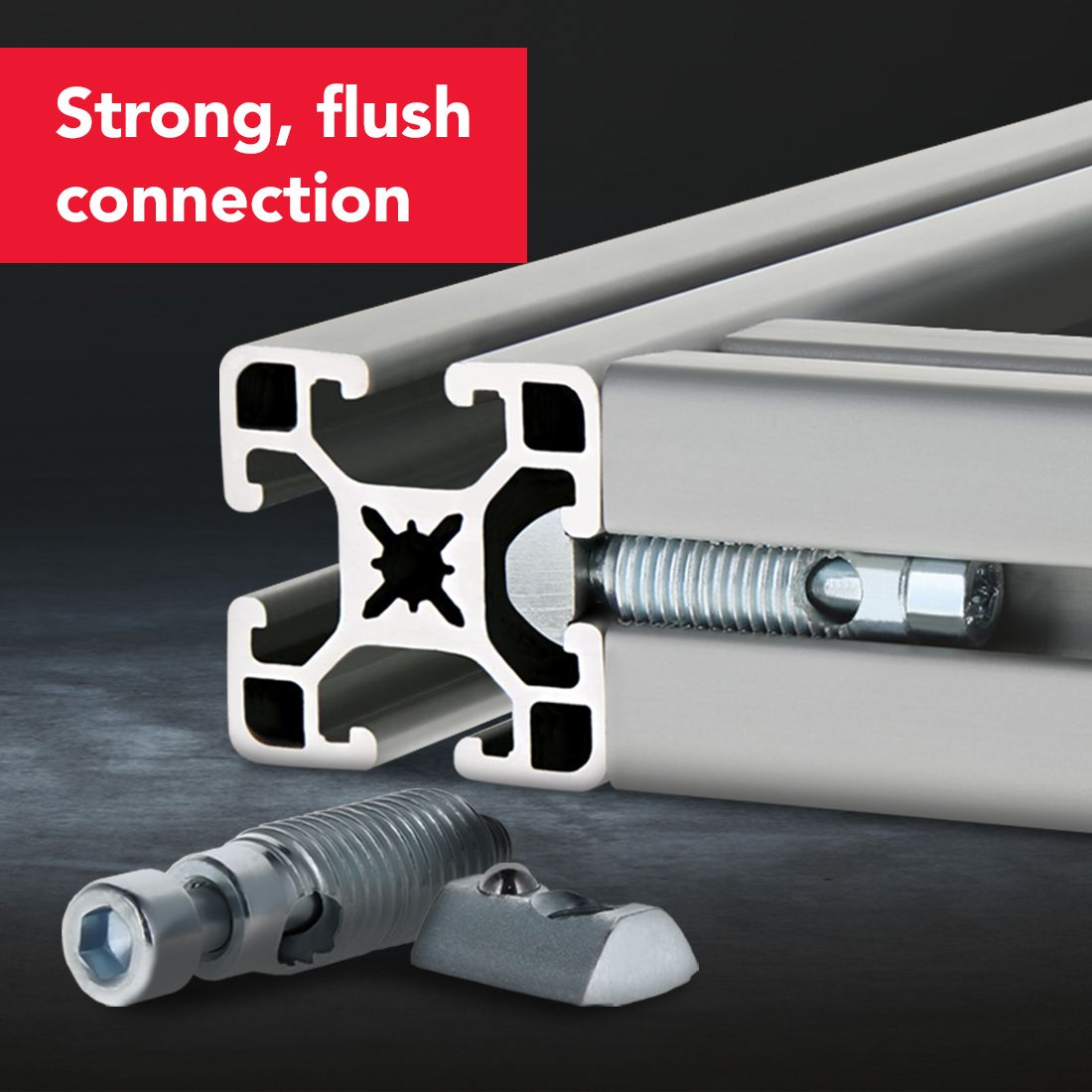

15 & 40 Series T-Matic Connector

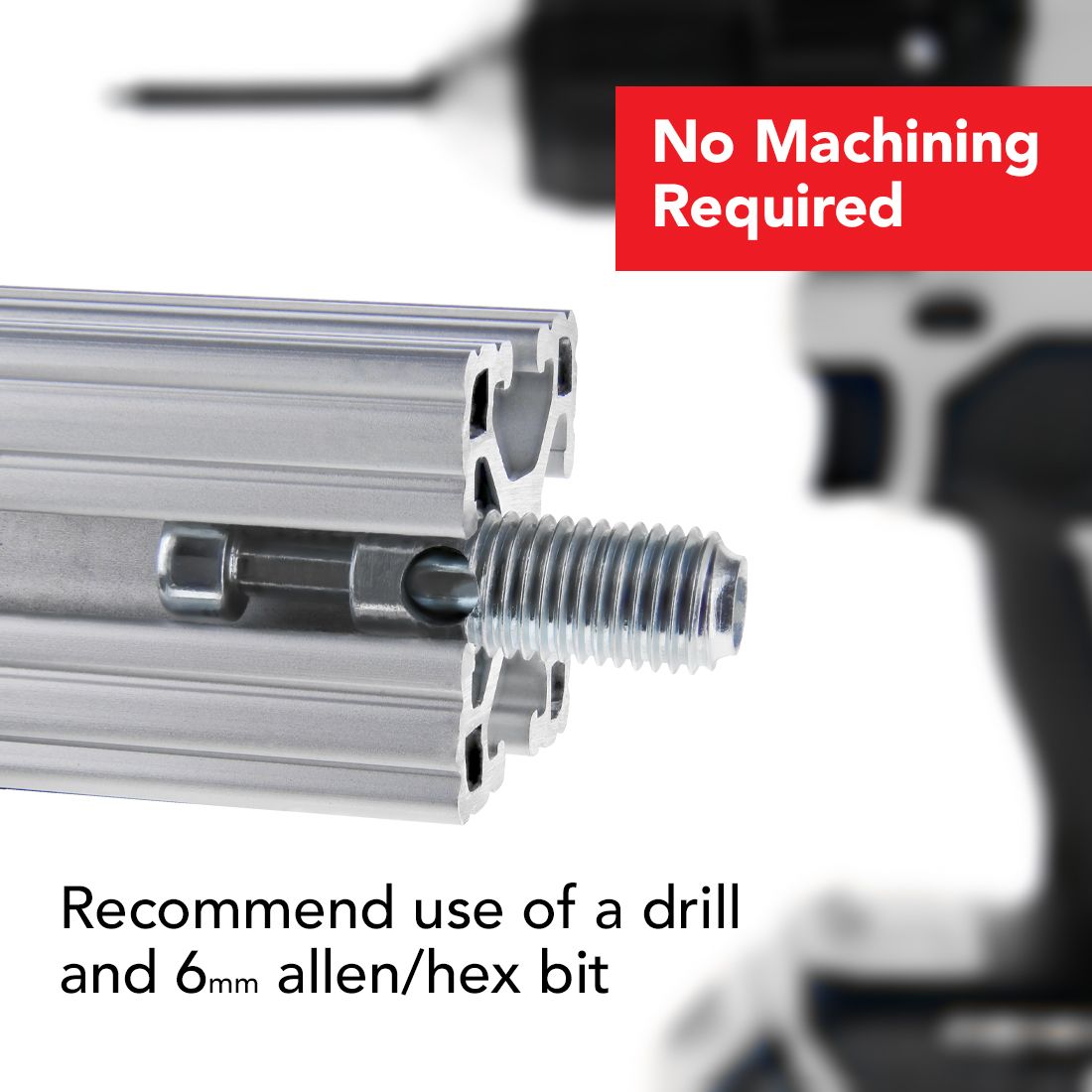

- Internal fastener that requires no machining
- Compatible with 15 and 40 Series profiles
- Infinite positioning along the T-Slot profile

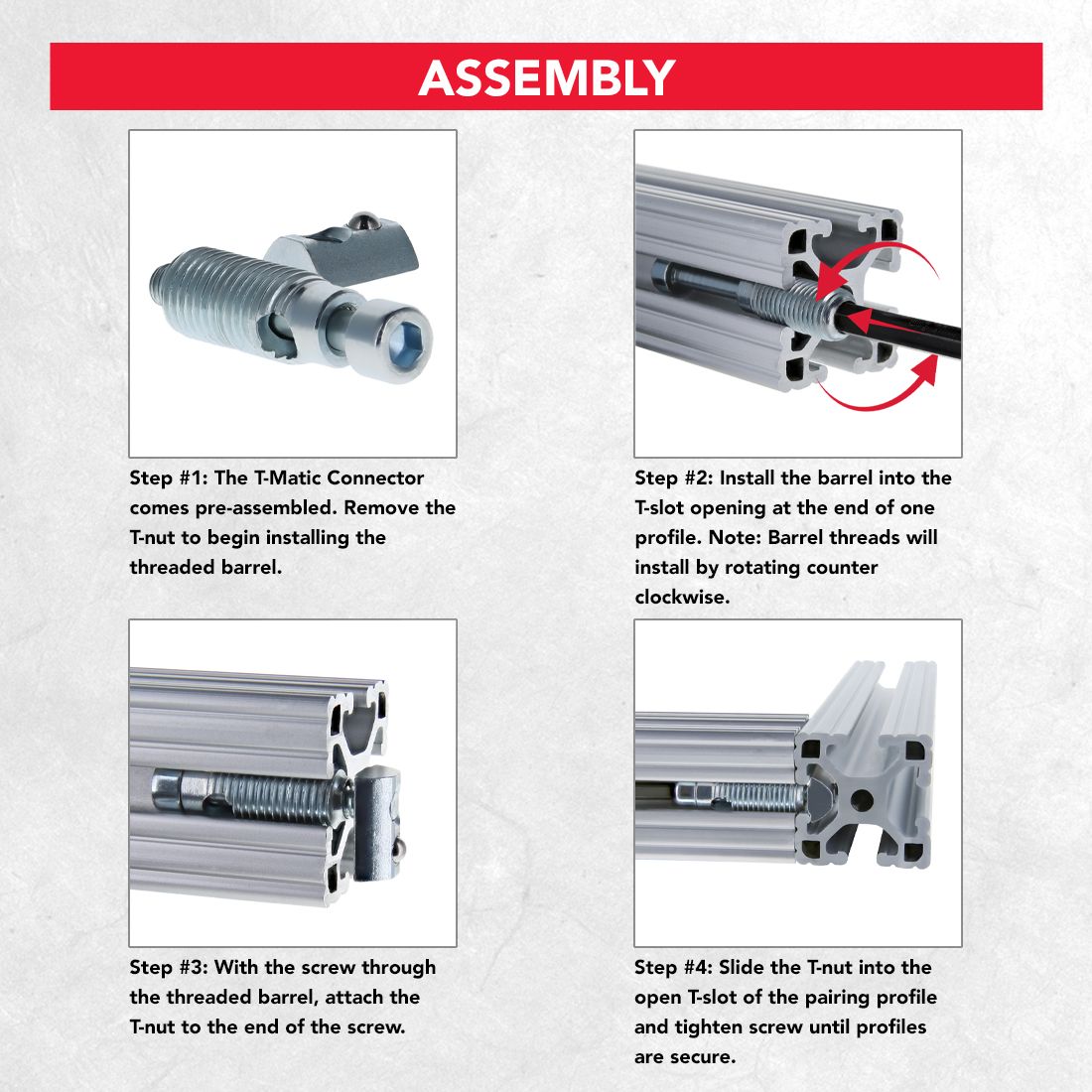

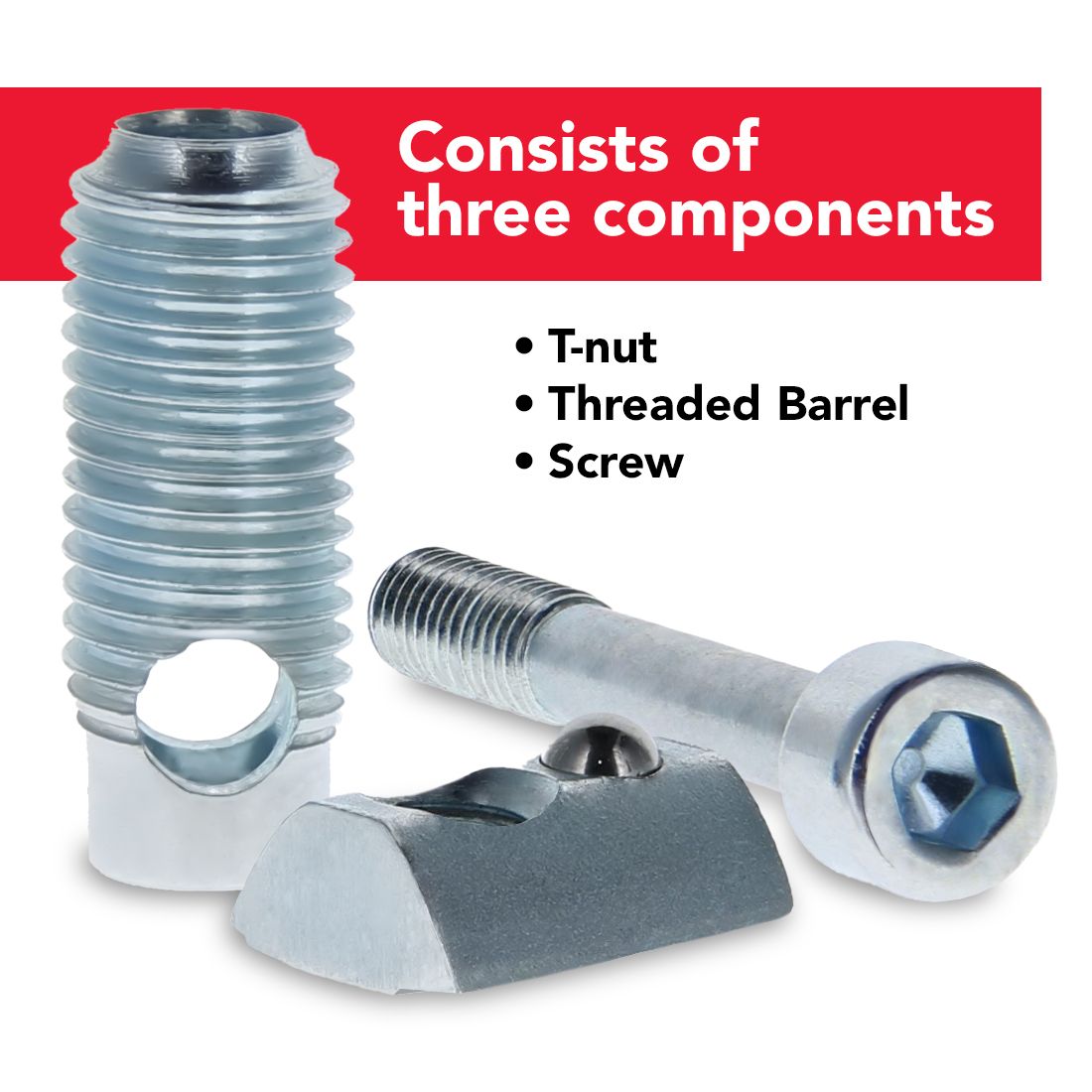

- Two ways to install: Slide into the end of profile or install on captivated profiles with Roll-in T-nut
- Left-handed barrel thread to prevent loosening during installation
- Holding force exceeding 600 lbs and torsional strength over 500 in-lbs.

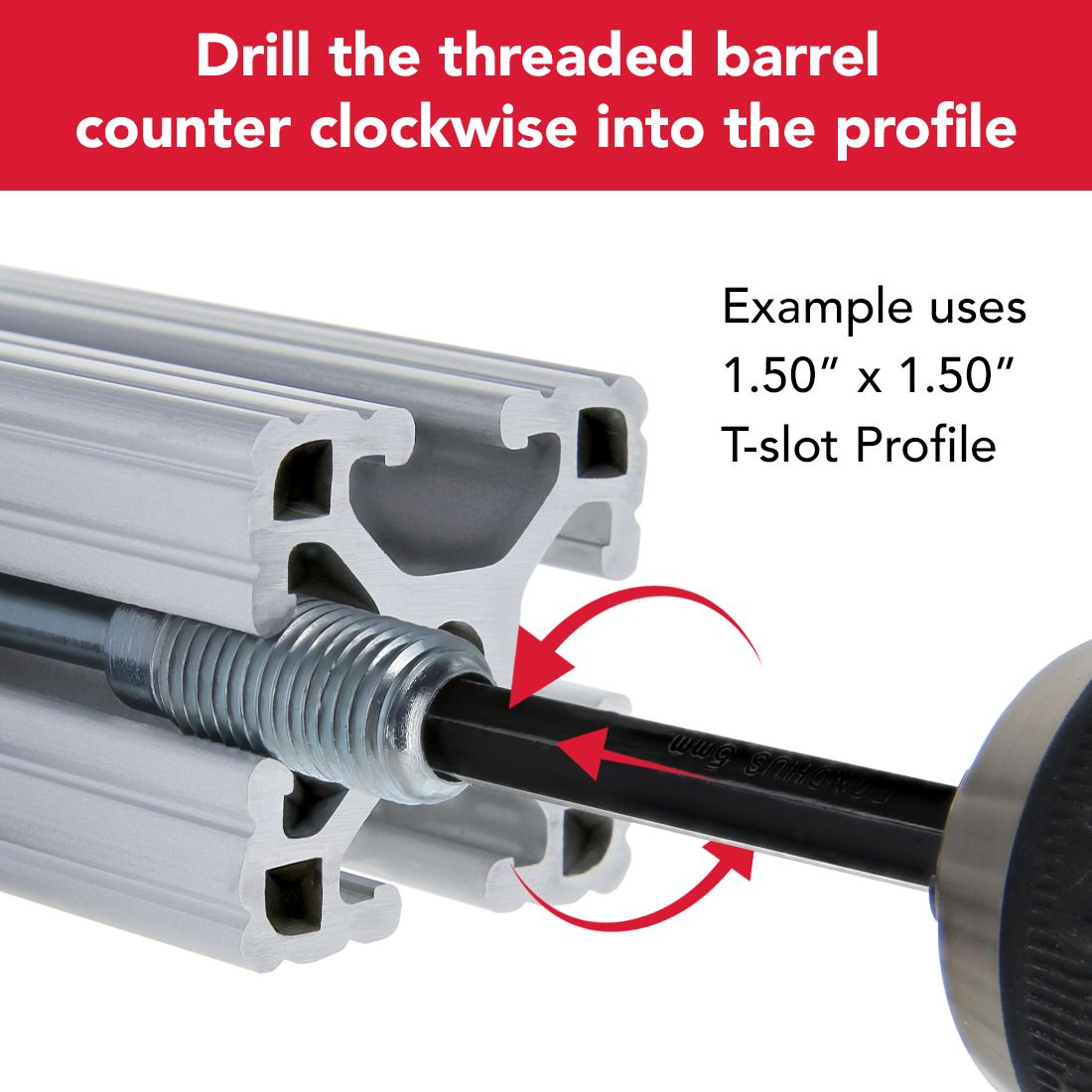

- Install barrel thread with 6mm ball end power bit (PN 65-6092). Use 5mm ball end hex wrench for screw (PN 65-6098).
Part No: 14197
$10.21
