Description
| Weight | 0.033100 |
| Series | 10 Series, 25 Series |
| Material | Steel |
| Color | Silver |

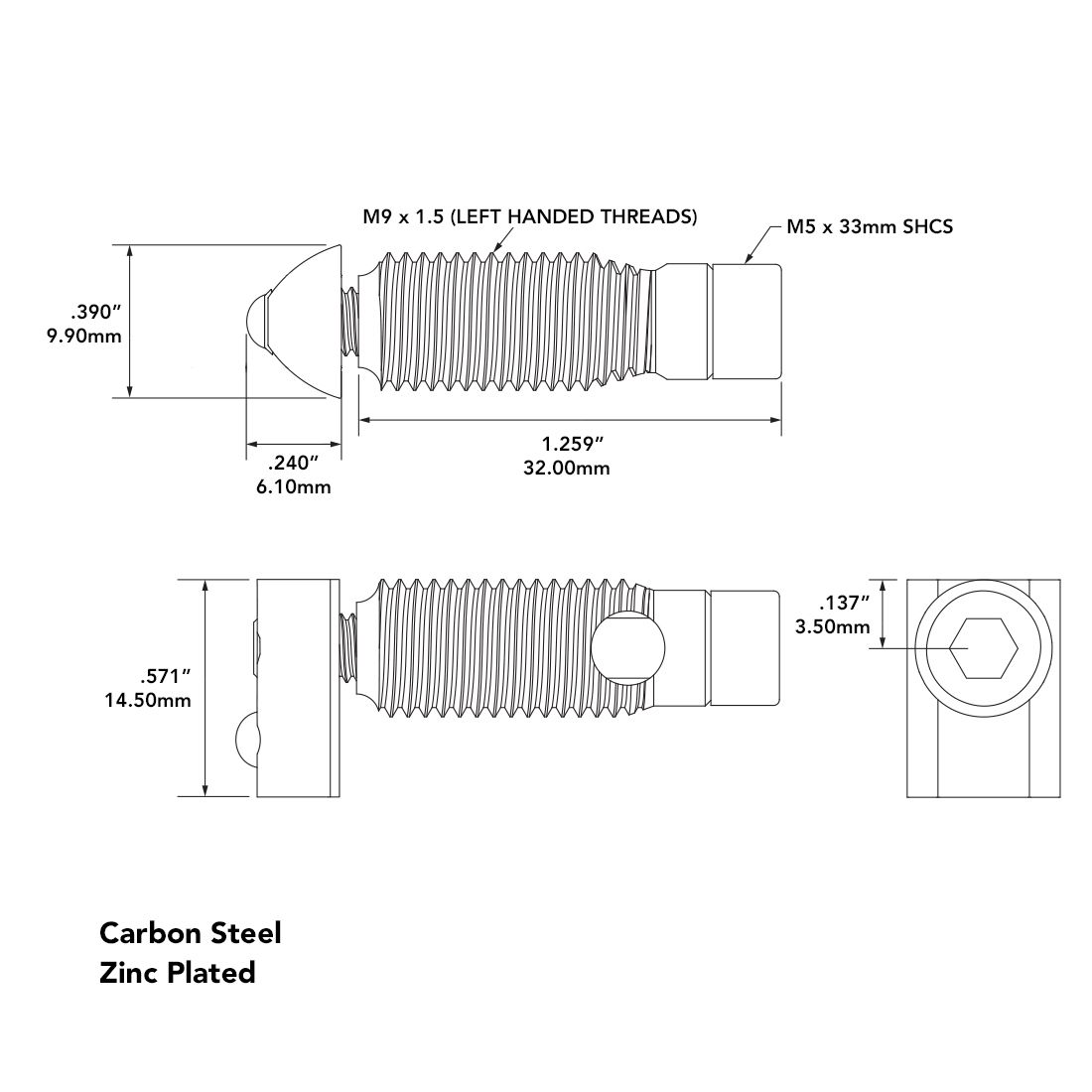

| A | 1.259″ (32.00mm) |
| B | 0.240″ (6.10mm) |
| C | N/A |
| D | 0.390″ (9.90mm) |
| E | M9 x 1.5 |
| F | M5 x 33mm SHCS |
| G | 0.571″ (14.50mm) |
| H | 0.137″ (3.50mm) |

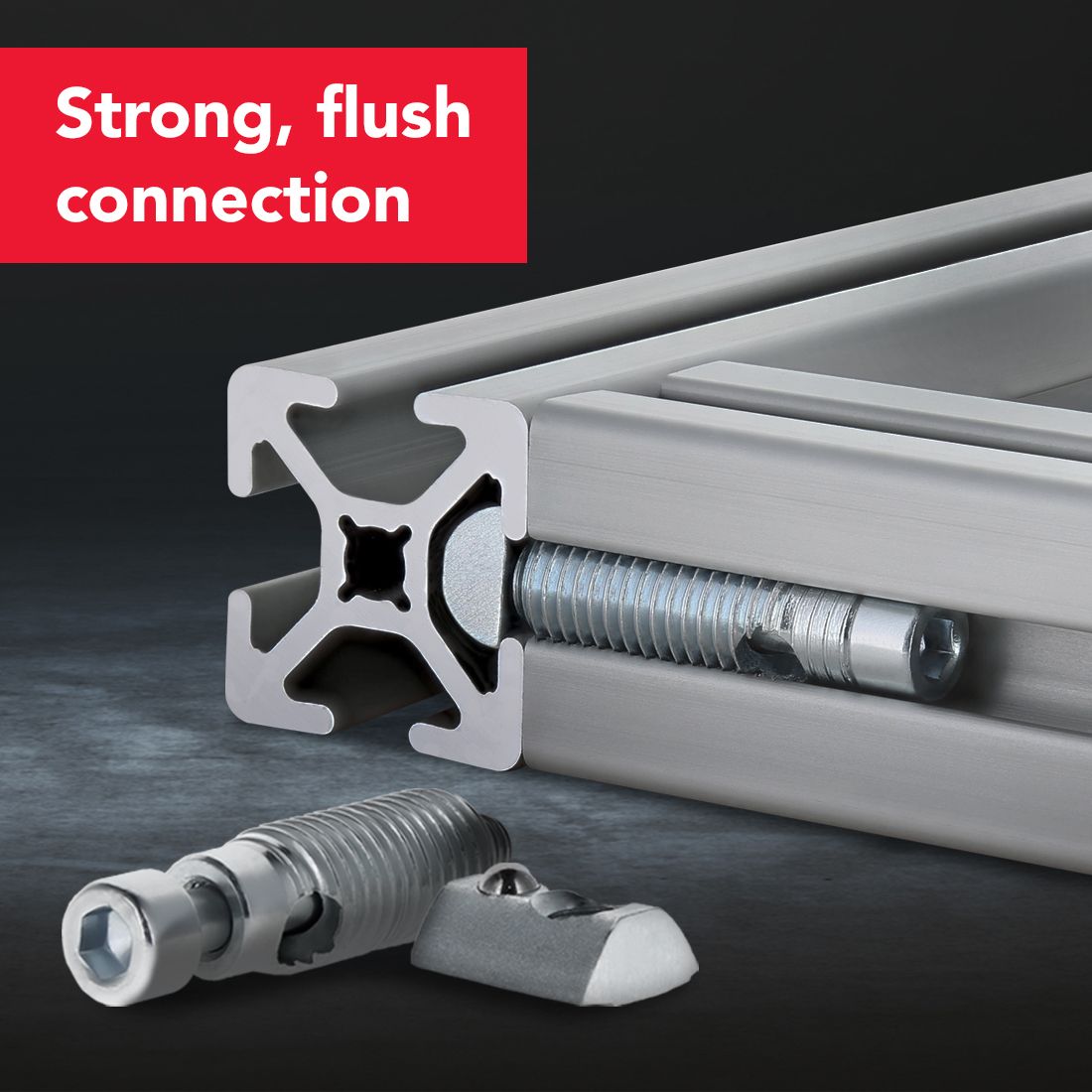

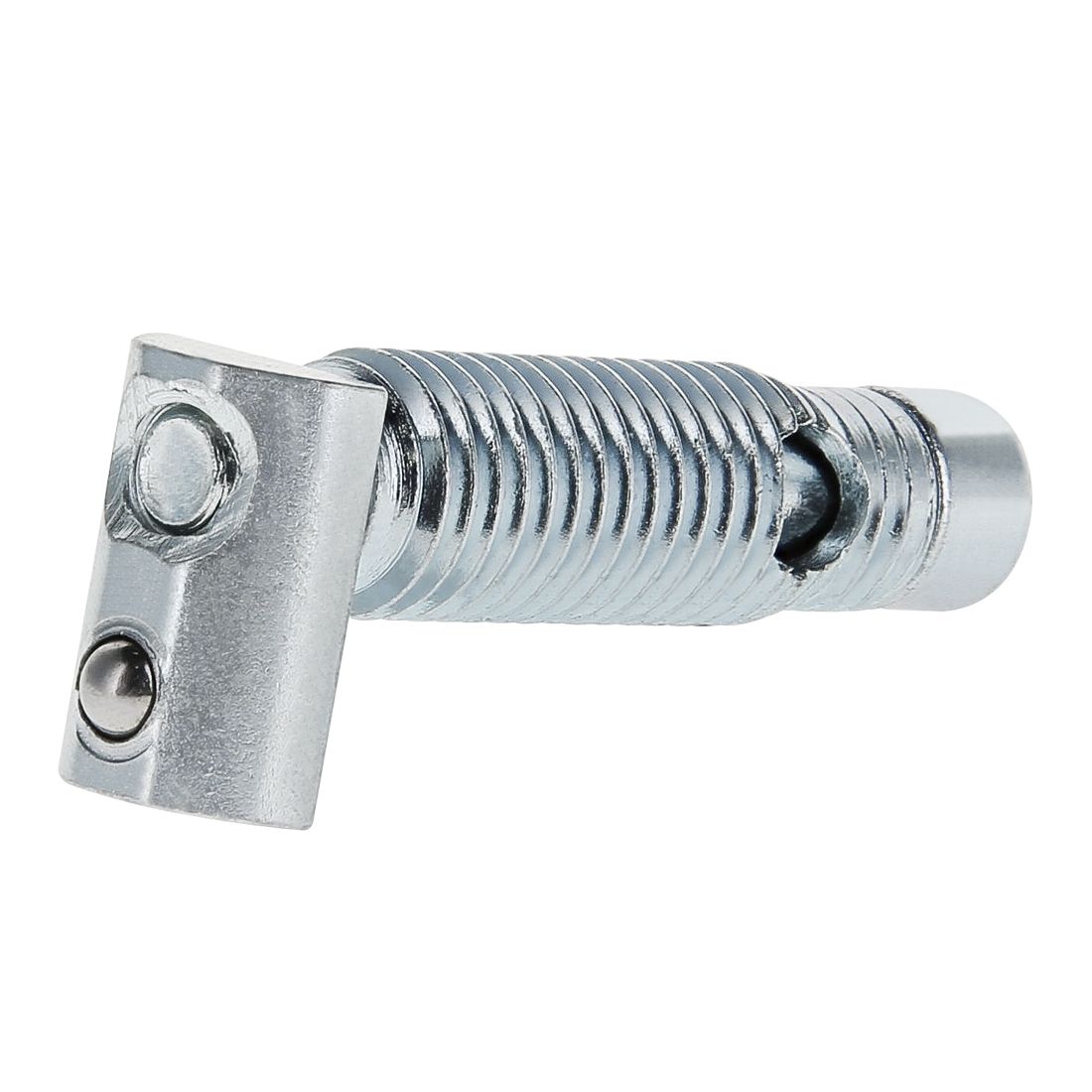

10 & 25 Series T-Matic Connector

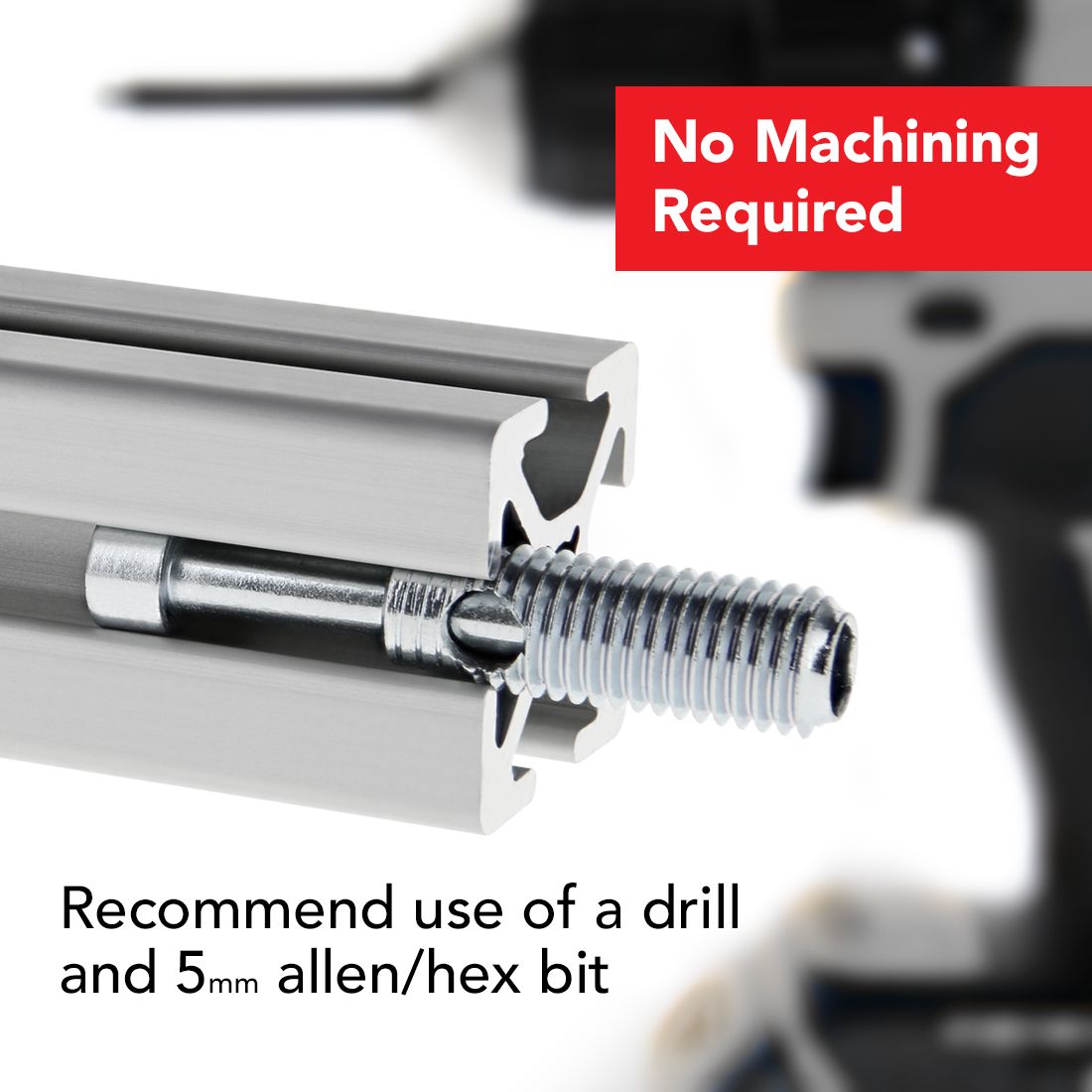

- Internal connector that requires no machining
- Compatible with 10 and 25 Series profiles
- Infinite positioning along the T-Slot profile

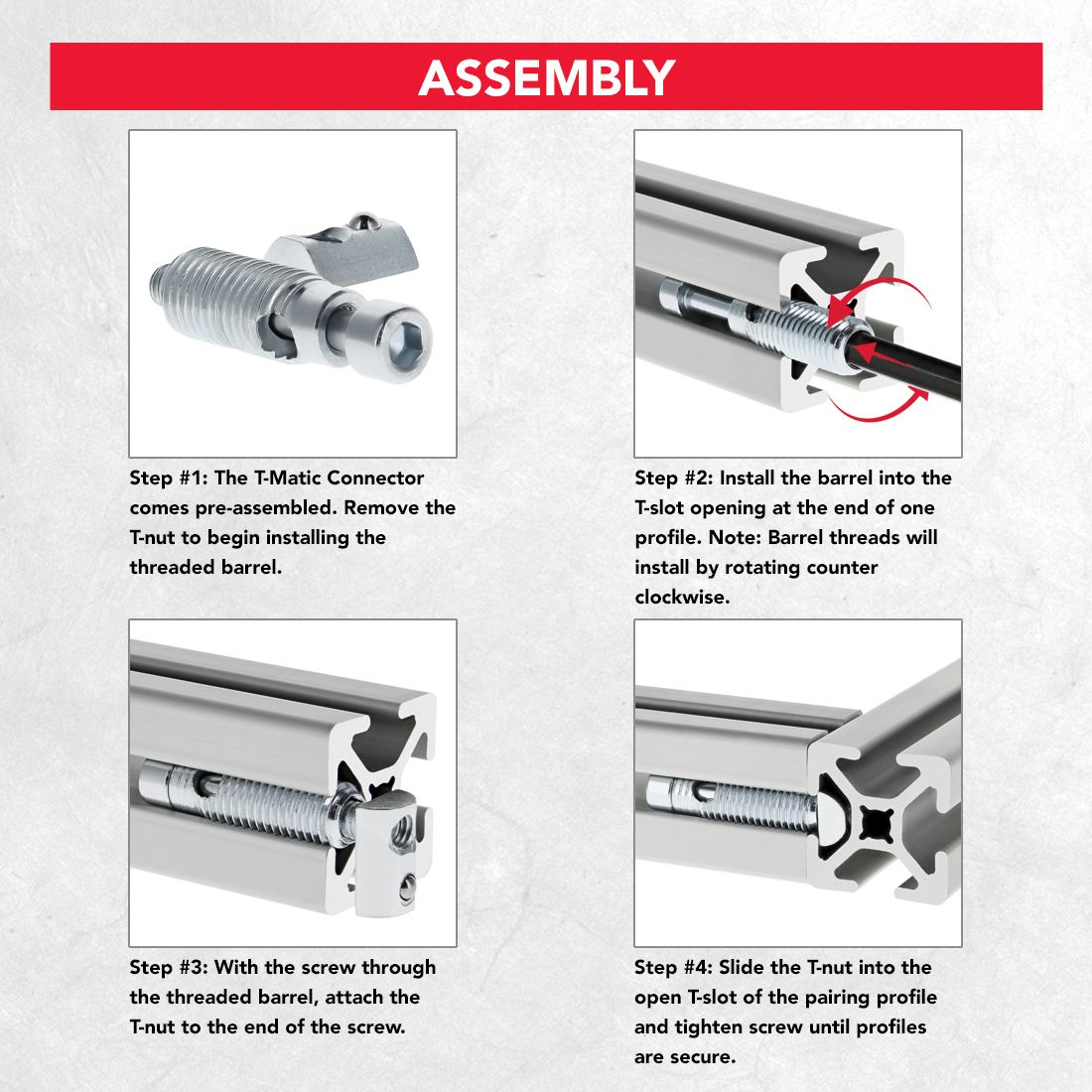

- Two ways to install: Slide into the end of profile or install on captivated profiles with roll-in T-nut
- Holding force exceeding 100 lbs and torsional strength over 130 in-lbs.

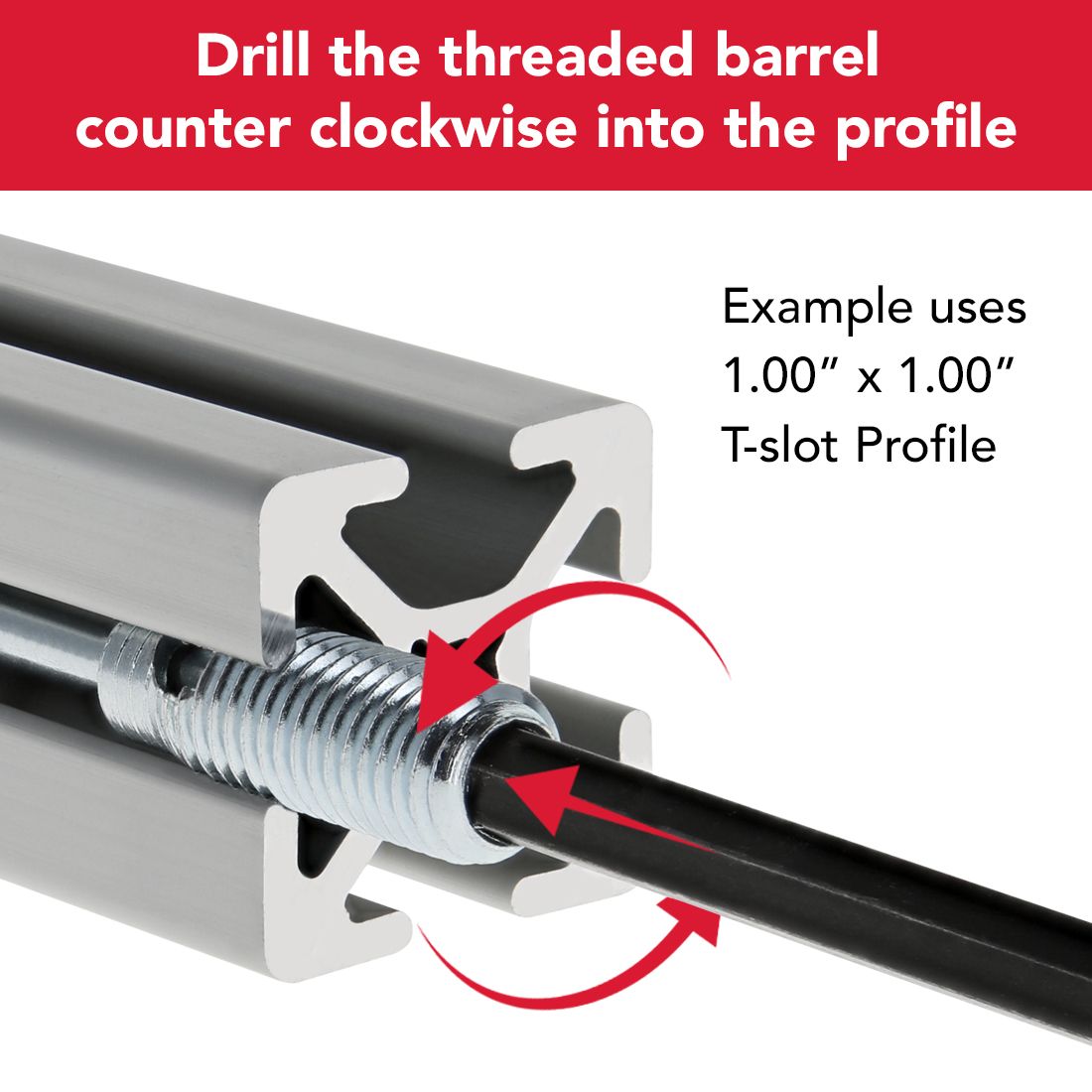

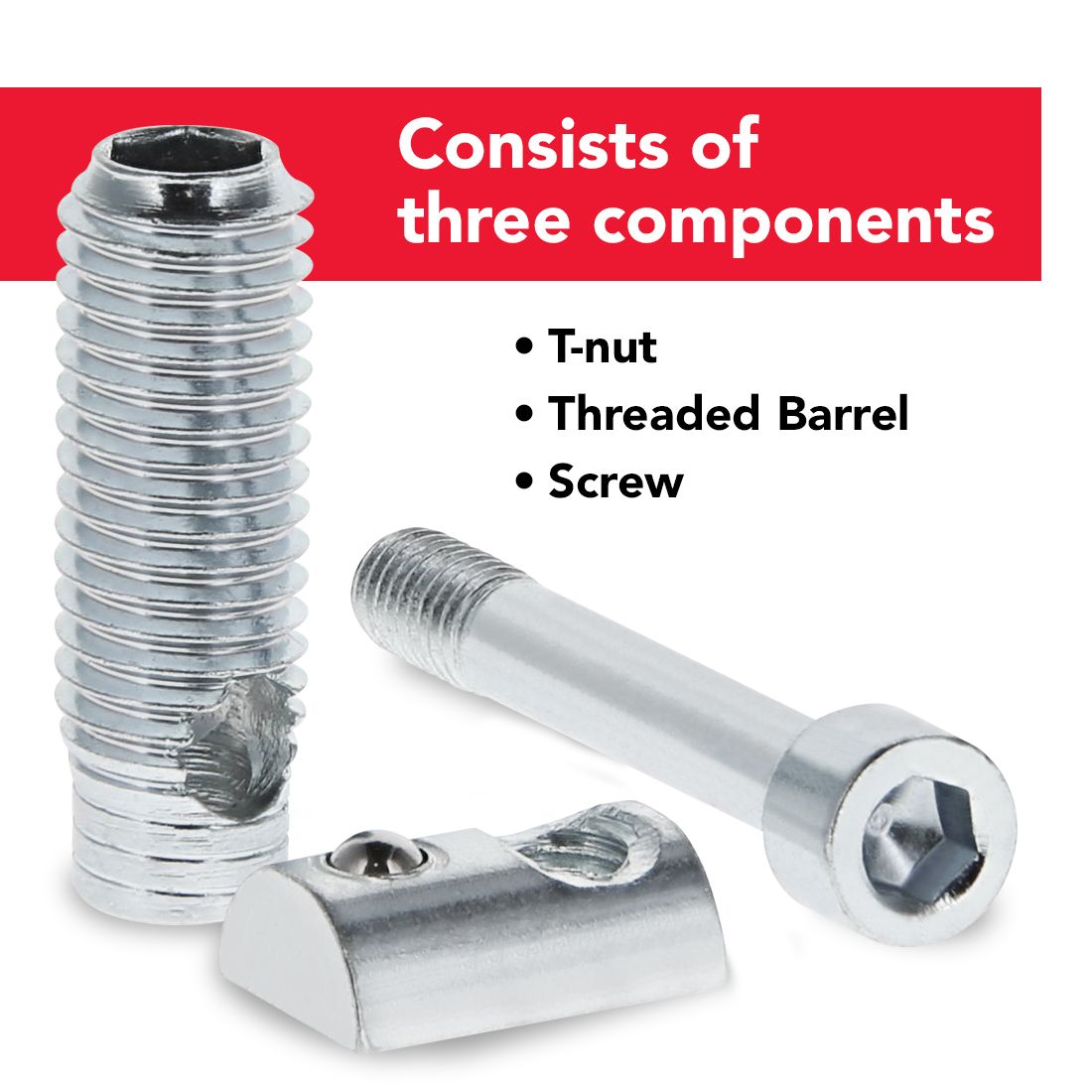

- Left-handed barrel thread and self-retained screw to support ease of installation.
- Install barrel thread with 5mm ball end power bit (PN65-6091). Use 4mm ball end hex wrench for screw (PN 65-6097).
Part No: 14200
$9.93
