Description
| Series | 10 Series, 25 Series |
| Material | Aluminum |
| Finish | Lacquered |
| Cap | Included |
| A | .244″ |
| B | .098″ |
| C | .283″ |
| D | .039″ |
| E | .079″ |
| F | .256″ |
| G | .992″ |
| H | .496″ |
| J | .496″ |
| K | .470″ |
| Weight | 0.090000 |

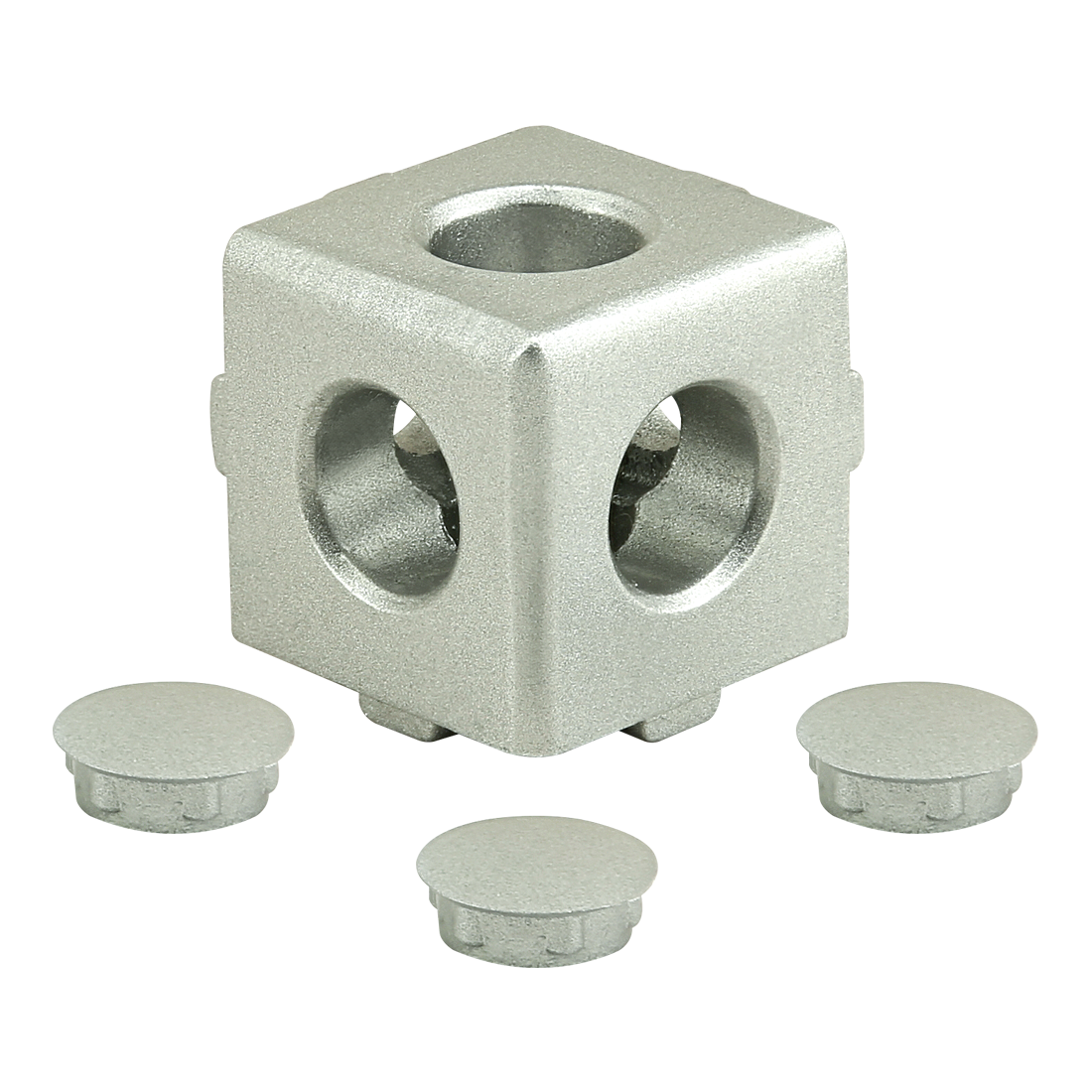

10 & 25 Series 3 Way – Light Squared Corner Connector

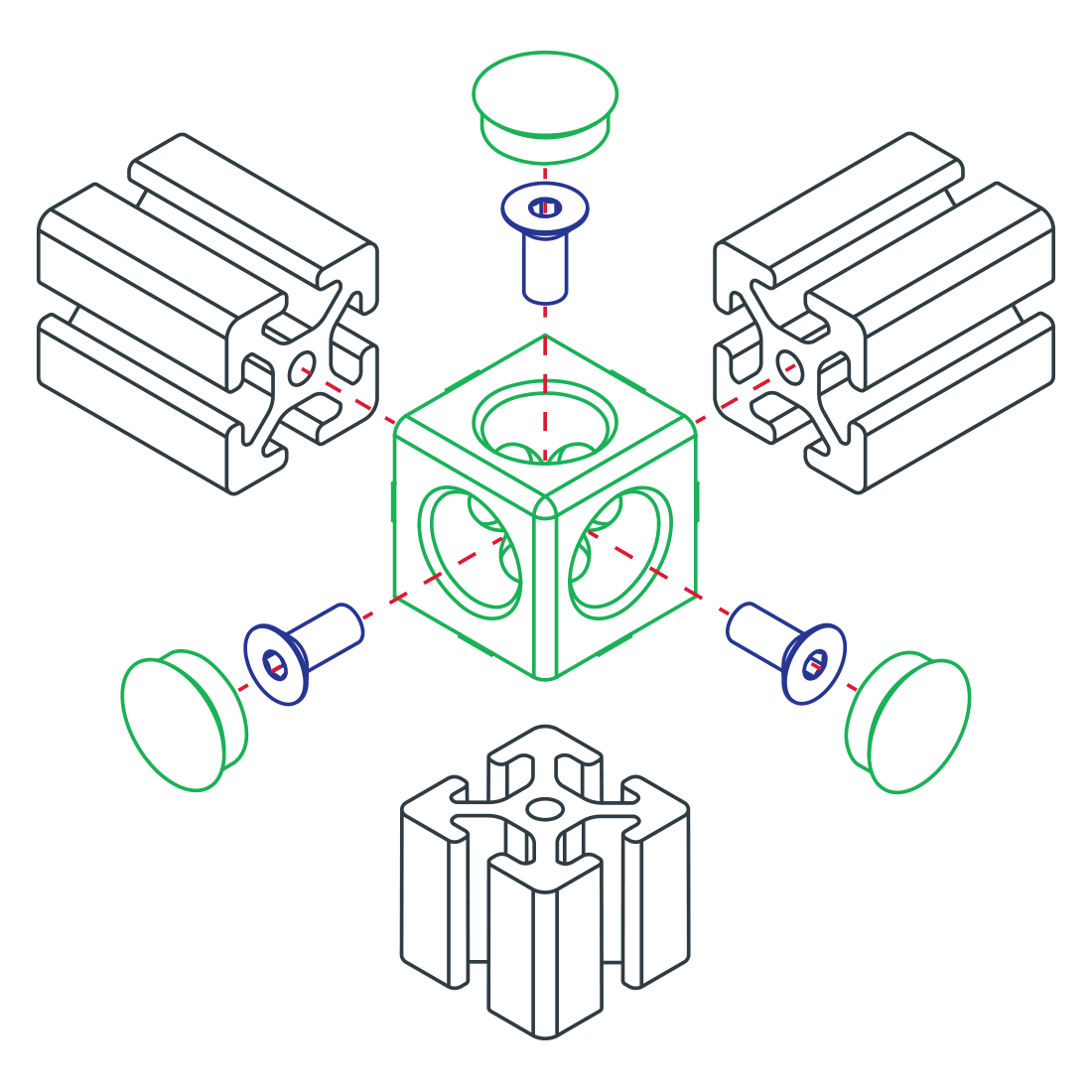

The 3 way – light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between three profiles. The fastener is lightweight and has three access holes; it includes the cover caps for the holes, to provide a finished look. The 3 way – light squared corner connector requires an end tap machining service on the mating profiles.
Part No: 14135
$26.73
