Description
| Series | 10 Series, 25 Series |
| Material | Aluminum |
| Finish | Lacquered |
| Cap | Included |
| A | .244″ |
| B | .098″ |
| C | .283″ |
| D | .039″ |
| E | .079″ |
| F | .256″ |
| G | .992″ |
| H | .496″ |
| J | .496″ |
| K | .470″ |
| Weight | 0.110000 |

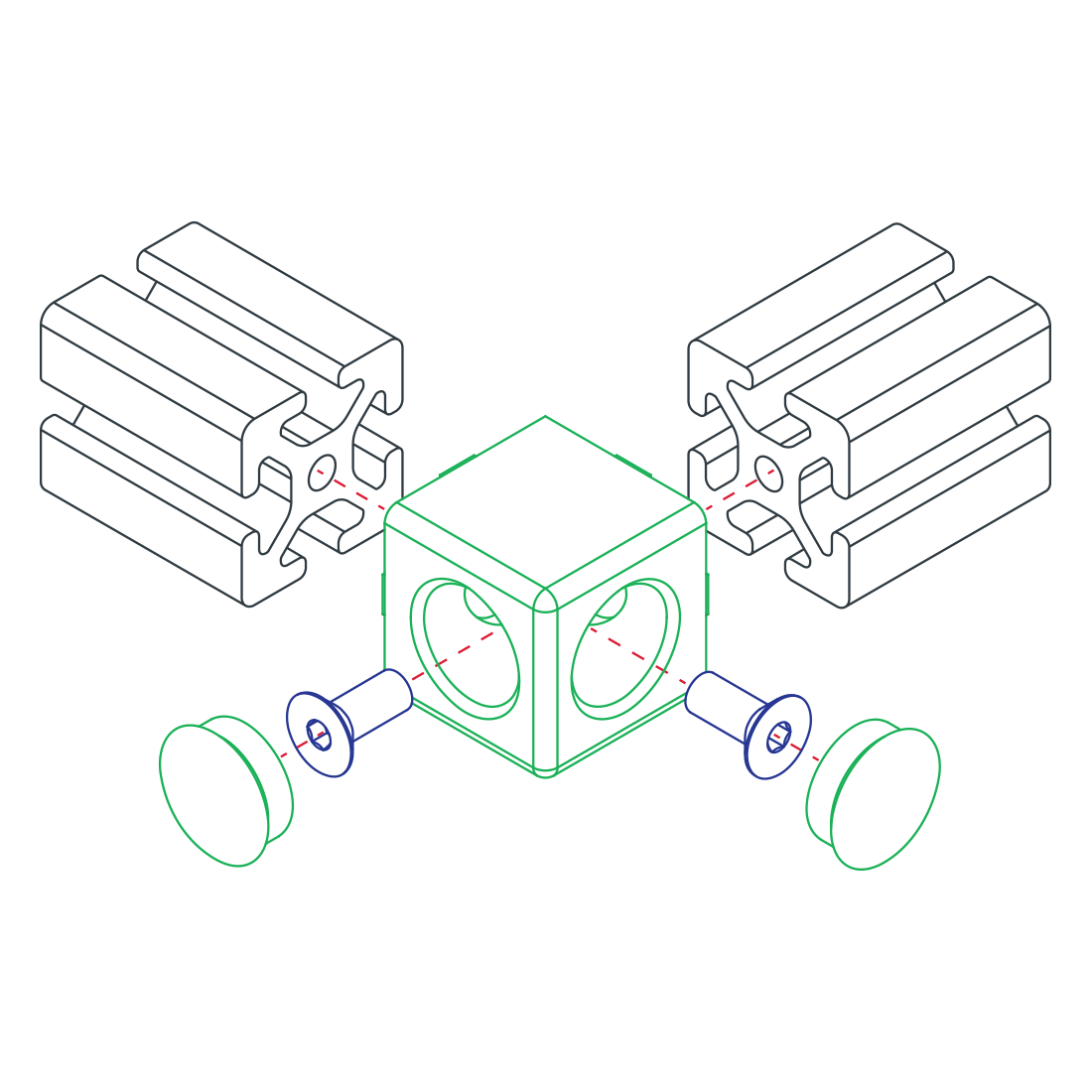

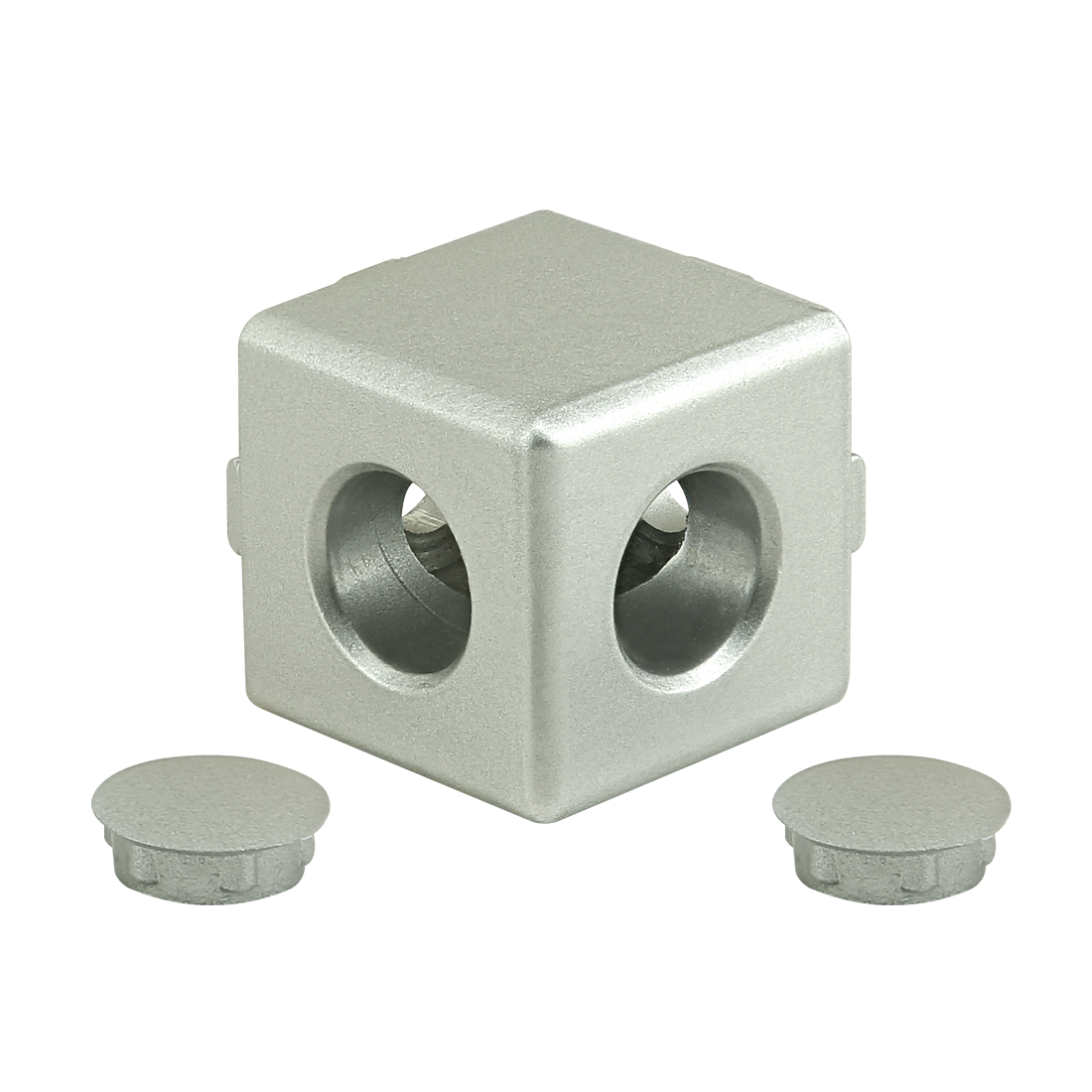

10 & 25 Series 2 Way – Light Squared Corner Connector
The 2 way – light squared corner connector is a die-cast external fastening method that is typically used to create a squared corner connection between two profiles. The fastener is lightweight and has two access holes; it includes the cover caps for the holes, to provide a finished look. The 2 way – light squared corner connector requires an end tap machining service on the mating profiles.
Part No: 14154
$21.71
Additional information
| Brand |
|---|
No CAD files available for this product.
